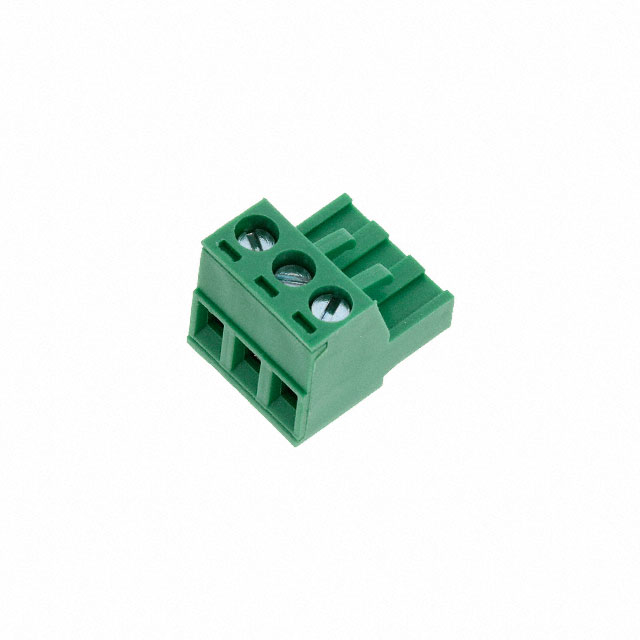

SH03 Series
Manufacturer: Altech Corporation
Beta
⌘K
PCBPLUG 3P 350MM HORIZONTAL 11A
| Part | Pitch | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Mounting Type | Voltage - IEC | Number of Levels | Termination Style | Contact Mating Finish | Operating Temperature (Min) | Operating Temperature (Max) | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Current - IEC | Voltage - UL | Color | Plug Wire Entry Angle | Number of Positions | Type | Current - UL | Positions Per Level | Torque - Screw | Wire Strip Length | Screw Size | Housing Material | Contact Material | Insulation Height | Wire Gauge or Range - mm² | Material Flammability Rating | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 0.138 in | 30 AWG | 14 AWG | Free Hanging (In-Line) | 160 V | 1 | Screw - Rising Cage Clamp | Nickel | -30 °C | 105 °C | 1.5 mm² | 0.25 mm² | 8 A | 300 V | Green | 180 ° | 3 | Female Sockets Plug | 11 A | 3 | ||||||||||
 Altech Corporation | 0.15 in | 30 AWG | 14 AWG | Free Hanging (In-Line) | 160 V | 1 | Screw - Rising Cage Clamp | Nickel | -30 °C | 105 °C | 2.5 mm² | 0.05 mm² | 8 A | 300 V | Green | 180 ° | 3 | Female Sockets Plug | 11 A | 3 | ||||||||||
 Altech Corporation | 5.08 mm | 30 AWG | 14 AWG | Free Hanging (In-Line) | 450 V | 1 | Screw - Rising Cage Clamp | Nickel | 16 A | 300 V | Green | 180 ° | 3 | Female Sockets Plug | 12 A | 3 | 0.5 Nm | 7.5 mm | M3 | Nylon PA Polyamide | Brass | 0.61 in | 2.5 mm² | UL94 V-0 | Retention Latches (Non-Wire Side) | |||||
Altech Corporation | 0.4 in | 30 AWG | 14 AWG | Free Hanging (In-Line) | 750 V | 1 | Screw - Rising Cage Clamp | Nickel | 16 A | 300 V | Green | 180 ° | 3 | Female Sockets Plug | 12 A | 3 | 4 mm² | Retention Latches (Non-Wire Side) | 105 °C | |||||||||||
Altech Corporation | 0.4 in | 30 AWG | 14 AWG | Free Hanging (In-Line) | 750 V | 1 | Screw - Rising Cage Clamp | Nickel | 2.5 mm² | 0.05 mm² | 16 A | 600 V | Green | 180 ° | 3 | Female Sockets Plug | 12 A | 3 | Retention Latches (Non-Wire Side) | 105 °C | ||||||||||
Altech Corporation | 0.15 in | 30 AWG | 14 AWG | Free Hanging (In-Line) | 160 V | 1 | Screw - Leaf Spring Wire Guard | Nickel | -30 °C | 105 °C | 1.5 mm² | 0.25 mm² | 8 A | 300 V | Green | 180 ° | 3 | Female Sockets Plug | 11 A | 3 | Mating Flange | |||||||||
Altech Corporation | 0.197 in | 30 AWG | 14 AWG | Free Hanging (In-Line) | 450 V | 1 | Screw - Rising Cage Clamp | Nickel | 16 A | 300 V | Green | 180 ° | 3 | Female Sockets Plug | 12 A | 3 | 4 mm² | Retention Latches (Non-Wire Side) | 105 °C | |||||||||||
Altech Corporation | ||||||||||||||||||||||||||||||
Altech Corporation | ||||||||||||||||||||||||||||||
Altech Corporation | 5.08 mm | 30 AWG | 14 AWG | Free Hanging (In-Line) | 450 V | 1 | Screw - Rising Cage Clamp | Nickel | 16 A | 300 V | Green | 180 ° | 3 | Female Sockets Plug | 12 A | 3 | 4 mm² | Mating Flange Retention Latches (Non-Wire Side) | 105 °C |
