GF-661 Series
Manufacturer: CW Industries
Beta
⌘K

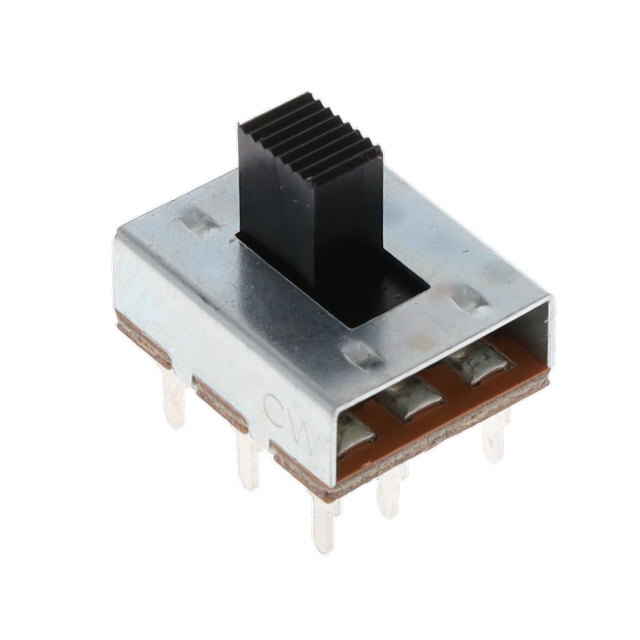

SWITCH SLIDE 3PDT 6A 125V
| Part | Actuator Material | Electrical Life | Mechanical Life | Switch Travel | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Timing | Actuator Length [x] | Circuit | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Switch Function | Contact Finish | Actuator Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | 4.01 mm | Solder Lug | -10 °C | 104 °C | Panel Mount | Not Specified | 8.74 mm | 3PDT | 125 V | 125 VDC | Copper | On-On | Silver | Standard | 6 A 500 mA |
 CW Industries | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | 4.01 mm | PC Pin | -10 °C | 104 °C | Through Hole | Not Specified | 8.74 mm | 3PDT | 125 V | 125 VDC | Copper | On-On | Silver | Standard | 6 A 500 mA |
