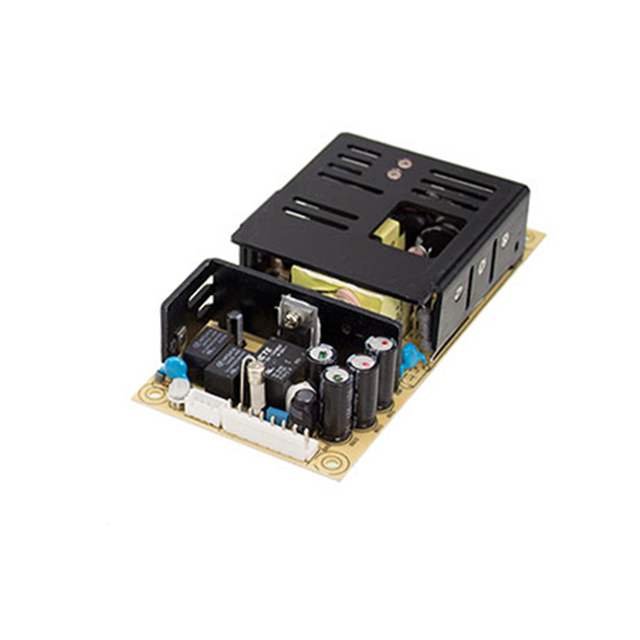

PSC-160 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 27.6V 27.6V 160W
| Part | Minimum Load Required | Features | Approval Agency | Mounting Type | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 2 | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Applications | Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Number of Outputs | Power (Watts) | Current - Output 1 | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Adjustable Output PFC Universal Input | CB CE cURus TUV | Chassis Mount | 90 % | 70 °C | -20 °C | 2 A | 264 VAC 370 VDC | 90 VAC 127 VDC | 27.6 V | ITE (Commercial) | Open Frame | 76.2 mm | 3 " | 152.4 mm | 1.26 " | 6 " | 32 mm | 3000 V | 2 | 160 W | 3.8 A | 27.6 V |
