VOT8121 Series

Manufacturer: Vishay Semiconductor Opto Division

Catalog

OPTOCOUPLER PHOTOTRIAC 800V SMD4

Part	Mounting Type	Current - Hold (Ih)	Number of Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max) [Max]	Output Type	Package / Case	Static dV/dt (Min) [Min]	Supplier Device Package	Voltage - Off State	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Isolation [custom]	Current - DC Forward (If) (Max) [Max]	Approval Agency	Turn On Time	Voltage - Forward (Vf) (Typ)	Voltage - Isolation
Vishay Semiconductor Opto Division VOT8121AB-VT2	Surface Mount	400 µA	1	-55 C	110 °C	100 mA	Triac	4-SMD Gull Wing	1 kV/µs	4-SMD	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE

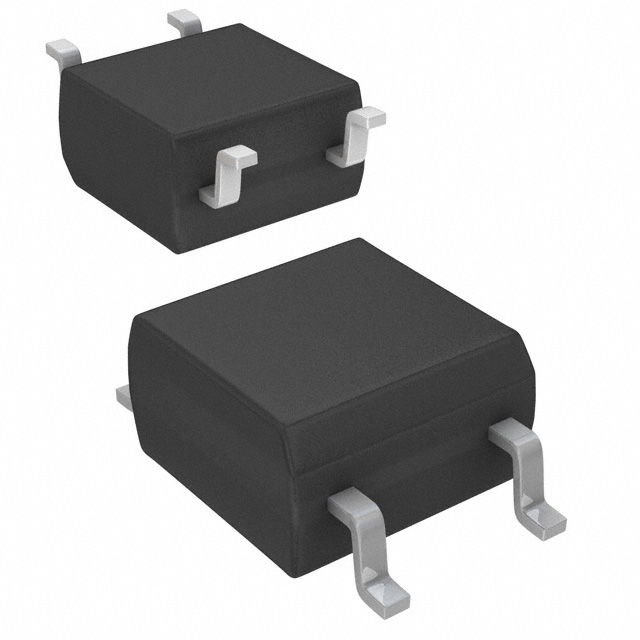

Vishay Semiconductor Opto Division VOT8121AM-VT2	Surface Mount	250 µA	1	-55 C	110 °C	100 mA	Triac	4-SMD Gull Wing	1 kV/µs	4-SOP	800 V	10 mA		50 mA	cUL UL VDE	30 µs	1.15 V	3750 Vrms
Vishay Semiconductor Opto Division VOT8121AB-VT	Surface Mount	400 µA	1	-55 C	110 °C	100 mA	Triac	4-SMD Gull Wing	1 kV/µs	4-SMD	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE
Vishay Semiconductor Opto Division VOT8121AG-V	Through Hole	400 µA	1	-55 C	110 °C	100 mA	Triac	4-DIP (0.400" 10.16mm)	1 kV/µs	4-DIP	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE
Vishay Semiconductor Opto Division VOT8121AB-T	Surface Mount	400 µA	1	-55 C	110 °C	100 mA	Triac	4-SMD Gull Wing	1 kV/µs	4-SMD	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE
Vishay Semiconductor Opto Division VOT8121AB-VT1	Surface Mount	400 µA	1	-55 C	110 °C	100 mA	Triac	4-SMD Gull Wing	1 kV/µs	4-SMD	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE
Vishay Semiconductor Opto Division VOT8121AB-T1	Surface Mount	400 µA	1	-55 C	110 °C	100 mA	Triac	4-SMD Gull Wing	1 kV/µs	4-SMD	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE
Vishay Semiconductor Opto Division VOT8121AG	Through Hole	400 µA	1	-55 C	110 °C	100 mA	Triac	4-DIP (0.400" 10.16mm)	1 kV/µs	4-DIP	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE
Vishay Semiconductor Opto Division VOT8121AB-T3	Surface Mount	400 µA	1	-55 C	110 °C	100 mA	Triac	4-SMD Gull Wing	1 kV/µs	4-SMD	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE
Vishay Semiconductor Opto Division VOT8121AB-T2	Surface Mount	400 µA	1	-55 C	110 °C	100 mA	Triac	4-SMD Gull Wing	1 kV/µs	4-SMD	800 V	10 mA	5300 Vrms	50 mA	CQC cUL UL VDE
