1825219 Series

Catalog

SWITCH TOGGLE SPST 0.4VA 20V

Part	Mounting Type	Features	Switch Function	Electrical Life	Actuator Material	Voltage Rating - AC	Actuator Type	Circuit	Illumination	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Bushing Thread	Actuator Length [x]	Termination Style

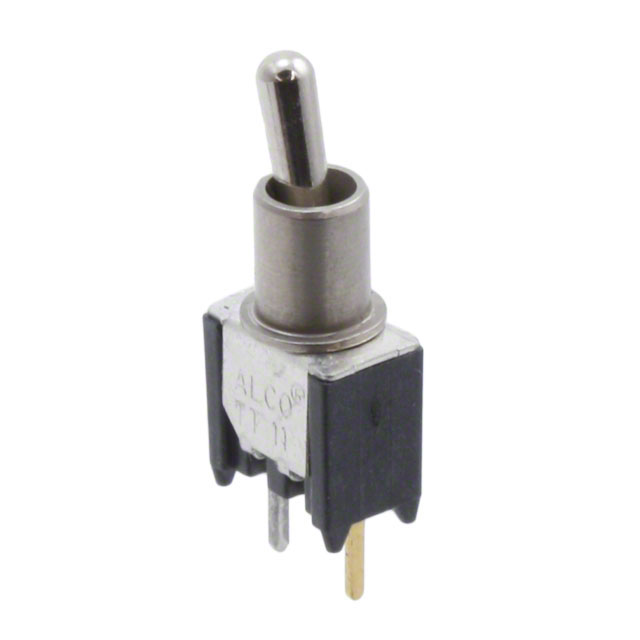

TE Connectivity Raychem Cable Protection 1825219-2	Through Hole	Epoxy Sealed Terminals	On-Off	80000 Cycles	Brass Nickel Plated	20 V	Standard Round	SPST	Non-Illuminated	20 V	-30 ░C	85 °C	0.4 VA	Unthreaded	5.61 mm	PC Pin

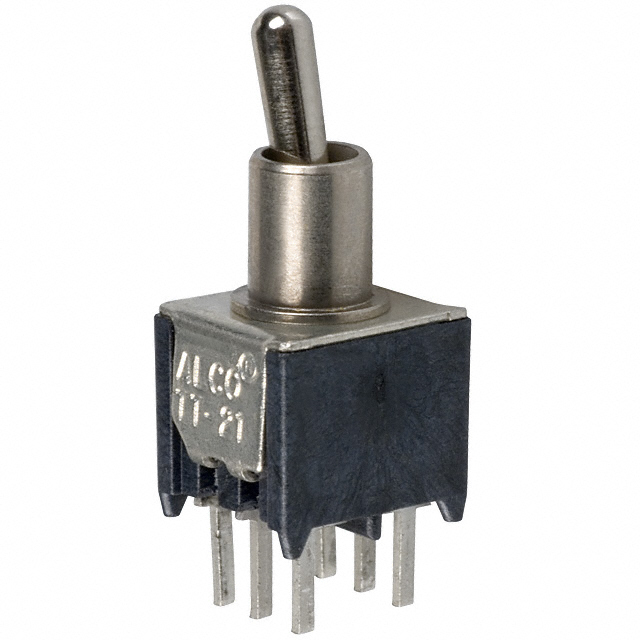

TE Connectivity Raychem Cable Protection 1-1825219-1	Through Hole		On-On	80000 Cycles	Brass Nickel Plated	20 V	Standard Round	DPDT	Non-Illuminated	20 V	-30 ░C	85 °C	0.4 VA	Unthreaded	5.61 mm	PC Pin

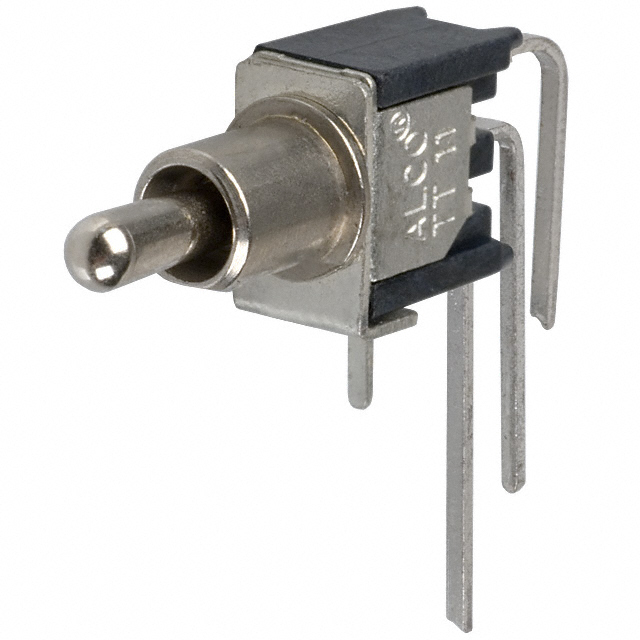

TE Connectivity Raychem Cable Protection 1825219-9	Right Angle Through Hole Vertical	Epoxy Sealed Terminals	On-Off-On	60000 Cycles	Brass Nickel Plated	20 V	Standard Round	SPDT	Non-Illuminated	20 V	-30 ░C	85 °C	0.4 VA	Unthreaded	5.61 mm	PC Pin

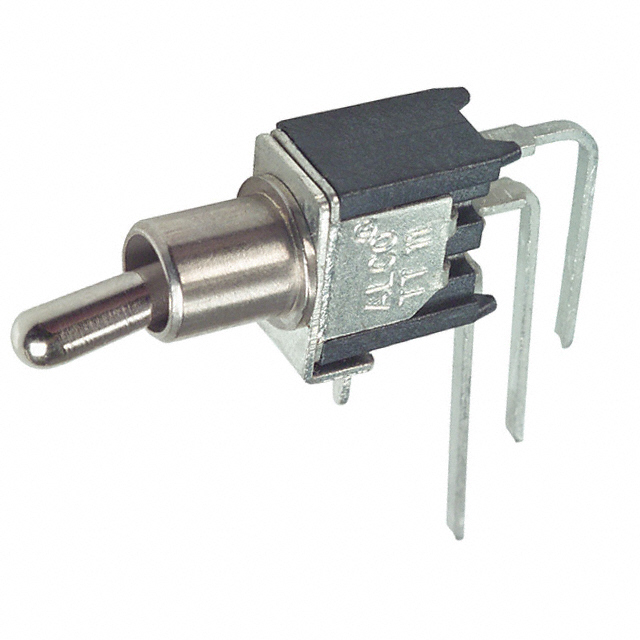

TE Connectivity Raychem Cable Protection 1825219-5	Right Angle Through Hole Vertical	Epoxy Sealed Terminals	On-On	80000 Cycles	Brass Nickel Plated	20 V	Standard Round	SPDT	Non-Illuminated	20 V	-30 ░C	85 °C	0.4 VA	Unthreaded	5.61 mm	PC Pin
