047337 Series
Manufacturer: Molex
Beta
⌘K

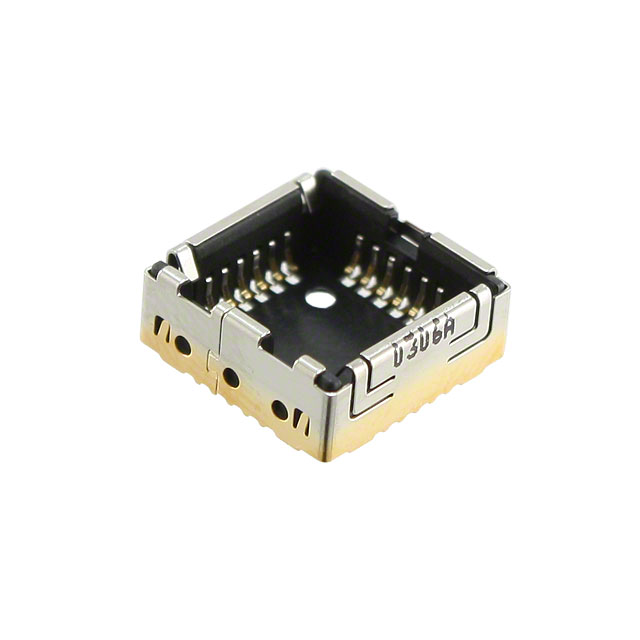

CONN CAM SOCKET 24POS GOLD
| Part | Pitch - Post | Pitch - Post | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Material - Post [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Type | Contact Finish - Post | Contact Material - Mating | Housing Material | Features | Material Flammability Rating | Mounting Type | Contact Finish Thickness - Post | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.035 " | 0.9 mm | Gold | 0.9 mm | 0.035 " | Copper Alloy | 12 µin | 0.3 µm | 24 | 0.5 A | 85 °C | -55 °C | Camera Socket | Gold | Copper Alloy | Polyamide (PA) Nylon | Open Frame | UL94 V-0 | Surface Mount | Flash | Solder |
