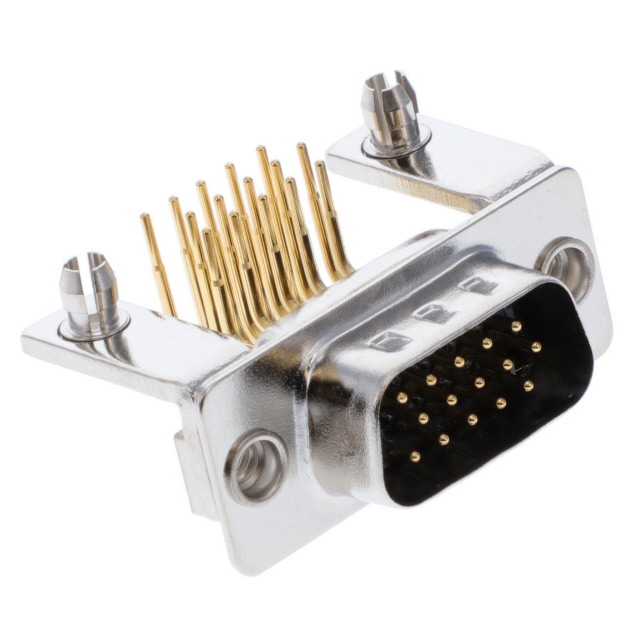

781-M15 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, HD15, IP68, HIGH DENSITY, PLUG, SEAL-D 781-M SERIES, 15 CONTACTS, DE, SOLDER
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Type | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Ingress Protection | Termination | Connector Style | Flange Feature | Flange Feature | Number of Positions | Number of Rows [custom] | Connector Type | Material Flammability Rating | Contact Finish | Features | Backset Spacing | Backset Spacing | Contact Finish Thickness | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | -55 C | 105 ░C | Polyamide (PA6T) Nylon 6T | Black | Signal | Nickel Plated Steel | (DE E) High Density | 1 | 5 A | IP67 - Dust Tight Waterproof | Solder | D-Sub High Density | Housing/Shell | 4-40 | 15 | 3 | Plug Male Pins | UL94 V-0 | Gold | Board Lock Grounding Indents | 8.89 mm | 0.35 in | Flash | Panel Mount Right Angle Through Hole |
