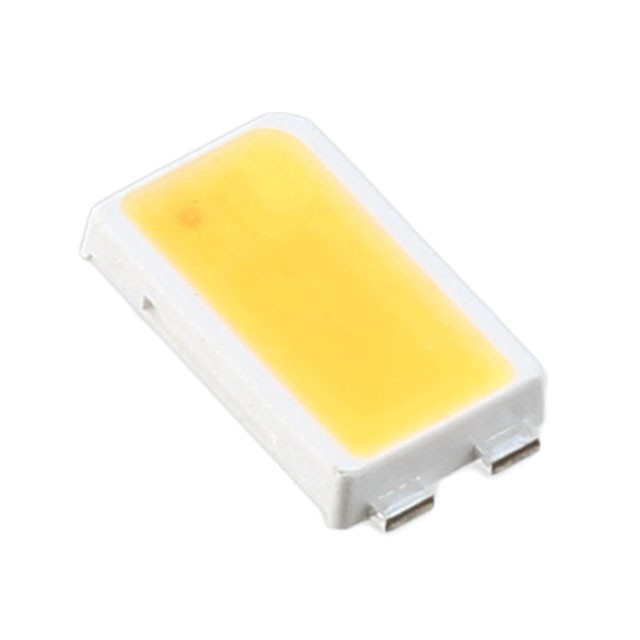

SPMWHT541 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

Catalog

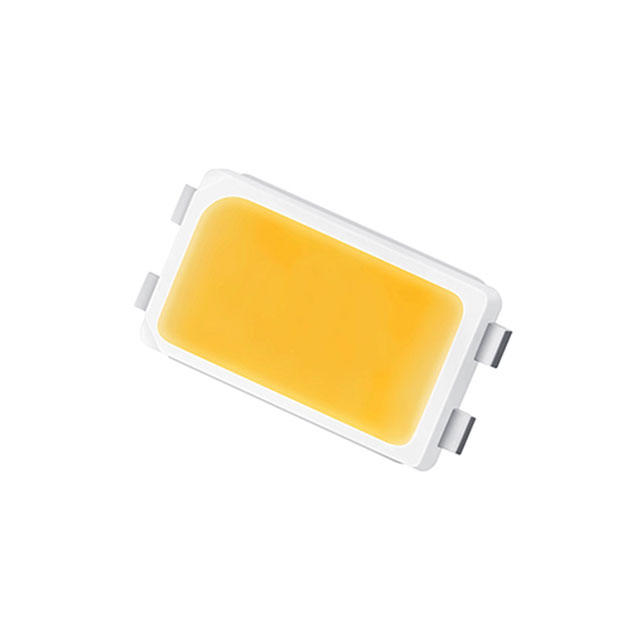

LED LM561B PLUS WHITE 5000K 5630

...

Part	Thermal Resistance of Package	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Current - Max [Max]	Supplier Device Package	Mounting Type	Viewing Angle	Height - Seated (Max) [Max]	Height - Seated (Max)	CRI (Color Rendering Index)	Current - Test	Package / Case	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Height - Seated (Max) [Max]
Samsung Semiconductor, Inc. SPMWHT541MP5WARMSD	16 °C/W	183 lm/W	0.197 in	5 mm	3 mm	0.118 in	Cool White	180 mA	5630	Surface Mount	120 °	0.031 in	0.8 mm	80	65 mA	4-SMD Flat Leads	33 lm	37 lm	35 lm	2.95 V	5000 K
Samsung Semiconductor, Inc. SPMWHT541MD5WAWHS2	16 °C/W		0.197 in	5 mm	3 mm	0.118 in	Warm White	150 mA	5630	Surface Mount		0.035 in			65 mA	4-SMD Flat Lead Exposed Pad				2.9 V	2700 K	0.9 mm
Samsung Semiconductor, Inc. SPMWHT541MP5WAWNS4	15 °C/W		0.197 in	5 mm	3 mm	0.118 in	Warm White	180 mA	5630	Surface Mount	120 °	0.031 in	0.8 mm	80	65 mA	4-SMD Flat Leads			31 lm	2.95 V	2700 K
Samsung Semiconductor, Inc. SPMWHT541MP5WAPMSD	16 °C/W	177 lm/W	0.197 in	5 mm	3 mm	0.118 in	Cool White	180 mA	5630	Surface Mount	120 °	0.031 in	0.8 mm	80	65 mA	4-SMD Flat Leads			34 lm	2.95 V	6500 K
Samsung Semiconductor, Inc. SPMWHT541ML7XAWSS0	12 °C/W	151 lm/W	0.197 in	5 mm	3 mm	0.118 in	Warm White	200 mA	5630	Surface Mount	120 °	0.031 in	0.8 mm	90	65 mA	4-SMD Flat Leads	24 lm	30 lm	27 lm	2.75 V	2700 K
Samsung Semiconductor, Inc. SPMWHT541ML5XARMS6	12 °C/W	213 lm/W	0.197 in	5 mm	3 mm	0.118 in	Cool White	200 mA	5630	Surface Mount	120 °	0.031 in	0.8 mm	80	65 mA	4-SMD Flat Leads	37 lm	39 lm		2.75 V	5000 K
Samsung Semiconductor, Inc. SPMWHT541ML5XAV0S6	12 °C/W	201 lm/W	0.197 in	5 mm	3 mm	0.118 in	Warm White	200 mA	5630	Surface Mount	120 °	0.031 in	0.8 mm	80	65 mA	4-SMD Flat Leads	35 lm	37 lm		2.75 V	3000 K
Samsung Semiconductor, Inc. SPMWHT541MD5WARMS1	16 °C/W		0.197 in	5 mm	3 mm	0.118 in	Cool White	150 mA	5630	Surface Mount		0.035 in			65 mA	4-SMD Flat Lead Exposed Pad				2.9 V	5000 K	0.9 mm
Samsung Semiconductor, Inc. SPMWHT541MP5WAPGS5	20 °C/W		0.197 in	5 mm	3 mm	0.118 in	Cool White	180 mA	5630	Surface Mount	120 °	0.031 in	0.8 mm	80	65 mA	4-SMD Flat Leads				2.95 V	6500 K
Samsung Semiconductor, Inc. SPMWHT541MP5WAQ0S4	15 °C/W	177 lm/W	0.197 in	5 mm	3 mm	0.118 in	Cool White	180 mA	5630	Surface Mount	120 °	0.031 in	0.8 mm	80	65 mA	4-SMD Flat Leads	33 lm	35 lm		2.95 V	5700 K
