TRAP-8 Series

Catalog

WIRELSS IC & MODULES BLUETOOTH

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Applications	Interface	Frequency	Features	Power - Output	Modulation or Protocol
RF SOLUTIONS TRAP-8S8	6 V	32 VDC	Receiver	Remote Control	8 Channel Handheld	868 MHz	10km Range

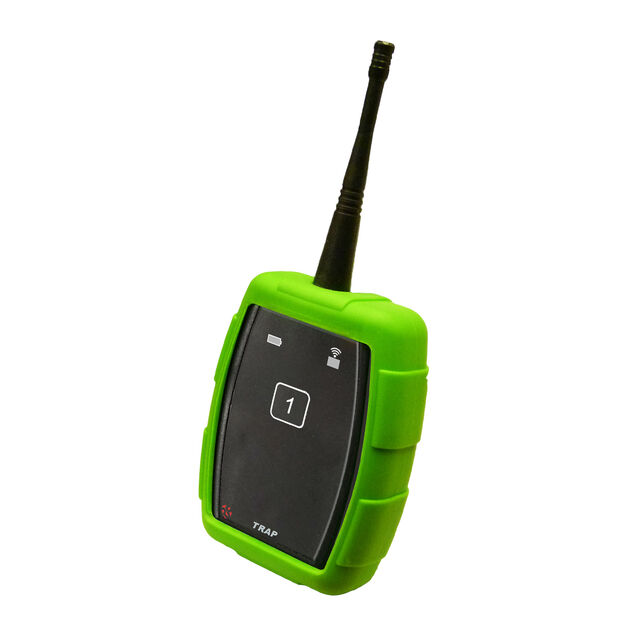

RF SOLUTIONS TRAP-8T1	3.3 V	6 V	Transmitter	Remote Control	Relay	868 MHz	10km Range IP67	22 dBm	FSK LoRa

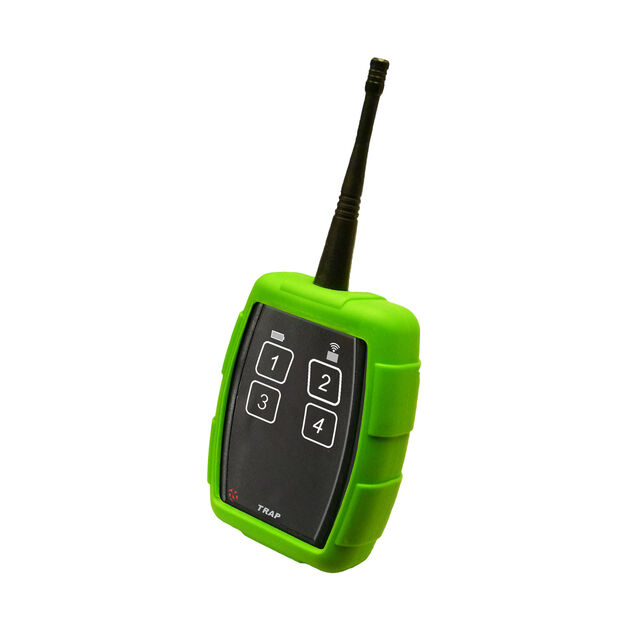

RF SOLUTIONS TRAP-8T4	3.3 V	6 V	Transmitter	Remote Control	Relay	868 MHz	10km Range IP67	22 dBm	FSK LoRa
RF SOLUTIONS TRAP-8T2	3.3 V	6 V	Transmitter	Remote Control	Relay	868 MHz	10km Range IP67	22 dBm	FSK LoRa

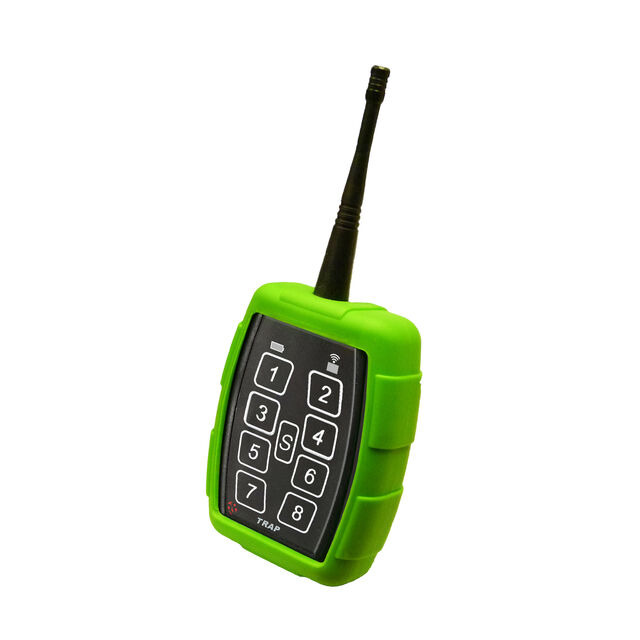

RF SOLUTIONS TRAP-8T16	3.3 V	6 V	Transmitter	Remote Control	Relay	868 MHz	10km Range IP67	22 dBm	FSK LoRa

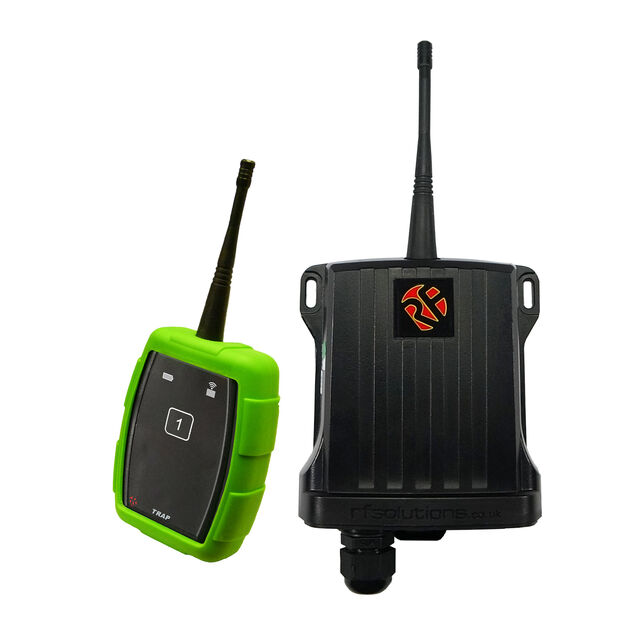

RF SOLUTIONS TRAP-8S1	6 V	32 VDC	Receiver	Remote Control	Relay	868 MHz	10km Range IP68		LoRa
RF SOLUTIONS TRAP-8T6	3.3 V	6 V	Transmitter	Remote Control	Relay	868 MHz	10km Range IP67	22 dBm	FSK LoRa

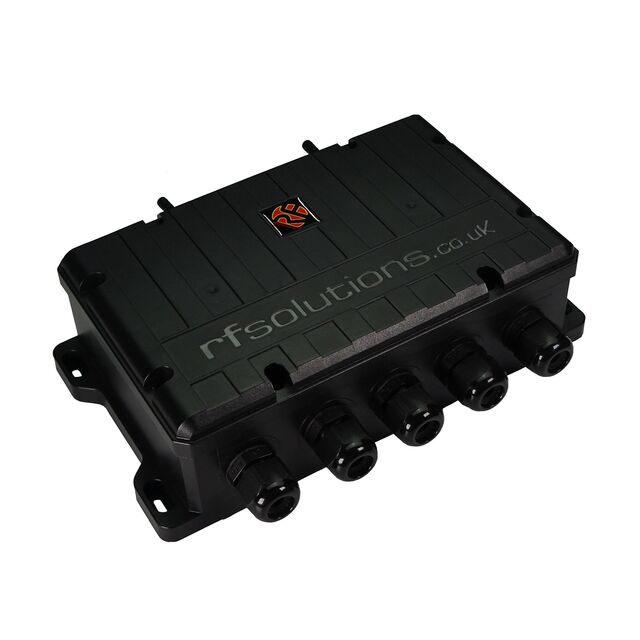

RF SOLUTIONS TRAP-8R8	6 V	32 VDC	Receiver	General Purpose	Relay	868 MHz	10km Range IP68		FM LoRa

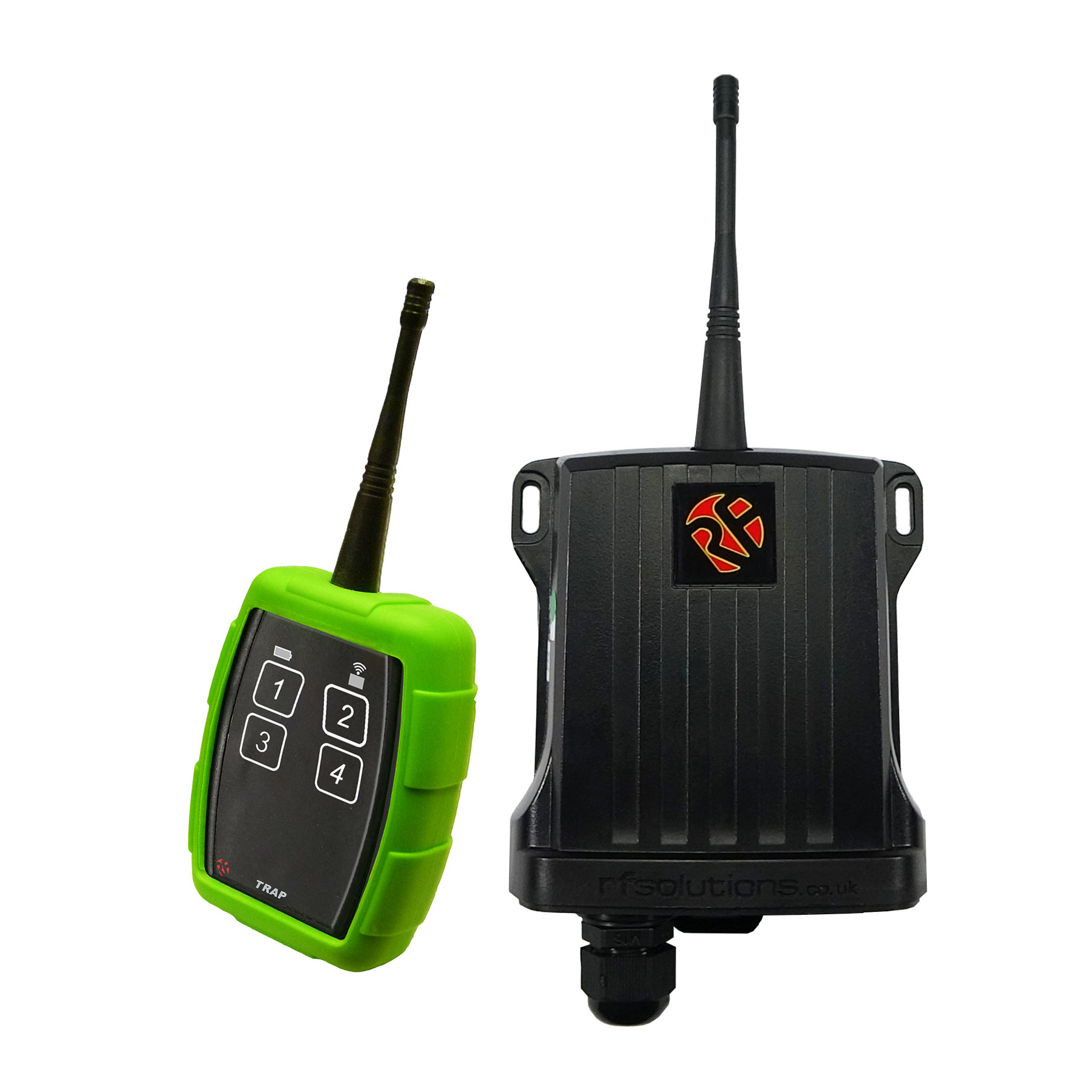

RF SOLUTIONS TRAP-8S4	6 V	32 VDC	Receiver	Remote Control	Relay	868 MHz	10km Range IP68		LoRa

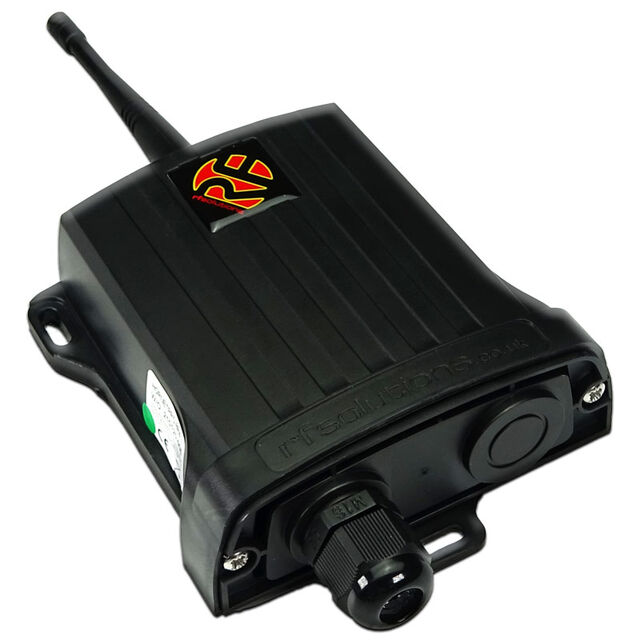

RF SOLUTIONS TRAP-8R4	6 V	32 VDC	Receiver	Remote Control	Relay	868 MHz	10km Range IP68		LoRa
