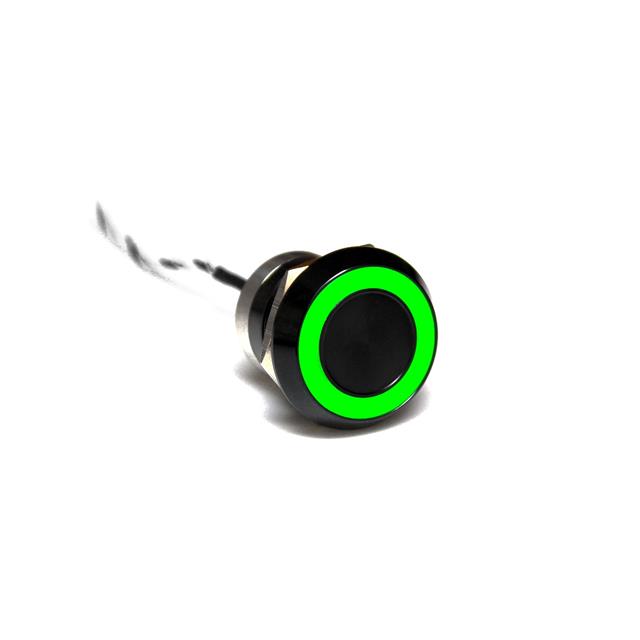

MC22MOB Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
SWITCH CAPACITIVE DPST OFF-MOM
| Part | Electrical Life | Mechanical Life | Illumination Type, Color | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Type | Color - Actuator/Cap | Termination Style | Switch Function | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] | Mounting Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | Green LED | 500 mA | 24 V | Button Flush Round | Capacitive Illuminated | Black | Wire Leads | Off-Mom | 12 VDC | 22.2 mm | Panel Mount Front | SPST-NO | 55 °C | -25 °C | IP68 IP69K |
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | Amber LED | 500 mA | 24 V | Button Flush Round | Capacitive Illuminated | Black | Wire Leads | Off-Mom | 12 VDC | 22.2 mm | Panel Mount Front | SPST-NO | 55 °C | -25 °C | IP68 IP69K |
