MTA106 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Mounting Type	Switch Function	Circuit	Actuator Length [x]	Bushing Thread	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Features	Illumination	Voltage Rating - DC	Actuator Type	Termination Style	Current Rating (Amps)
TE Connectivity AMP Connectors MTA106HPC	Copper Alloy Chrome Plated	60000 Cycles	Panel Mount	On-Off-Mom	SPDT	10.49 mm	1/4-40	125 V	80 °C	-20 ░C	6.4 mm	Epoxy Sealed Terminals	Non-Illuminated	28 V	Standard Round	PC Pin	4 A 6 A
TE Connectivity AMP Connectors MTA106G	Brass Nickel Plated	60000 Cycles	Panel Mount	Mom-Off-Mom	SPDT	10.49 mm	1/4-40	125 V	80 °C	-20 ░C	6.4 mm	Epoxy Sealed Terminals	Non-Illuminated	28 V	Standard Round	Solder Lug	4 A 6 A

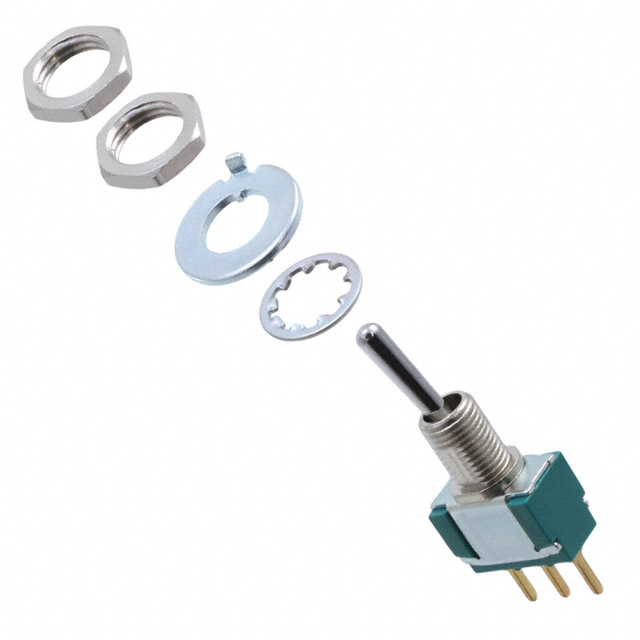

TE Connectivity AMP Connectors MTA106DPC	Brass Nickel Plated	80000 Cycles	Panel Mount	On-On	SPDT	10.49 mm	1/4-40	125 V	80 °C	-20 ░C	6.4 mm	Epoxy Sealed Terminals	Non-Illuminated	28 V	Standard Round	PC Pin	4 A 6 A

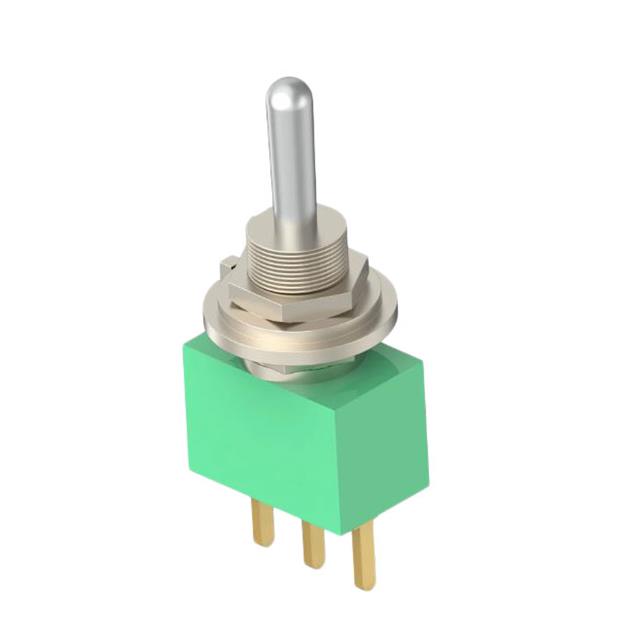

TE Connectivity AMP Connectors MTA106GPC	Brass Nickel Plated		Panel Mount	Mom-Off-Mom	SPDT	10.49 mm	1/4-40	125 V	80 °C	-20 ░C		Epoxy Sealed Terminals	Non-Illuminated	28 V	Standard Round	PC Pin	4 A 6 A
TE Connectivity AMP Connectors MTA106DUL	Copper Alloy Chrome Plated	80000 Cycles	Panel Mount	On-On	SPDT	10.49 mm	1/4-40	125 V	80 °C	-20 ░C	6.4 mm	Epoxy Sealed Terminals	Non-Illuminated	28 V	Standard Round	Solder Lug	4 A 6 A
