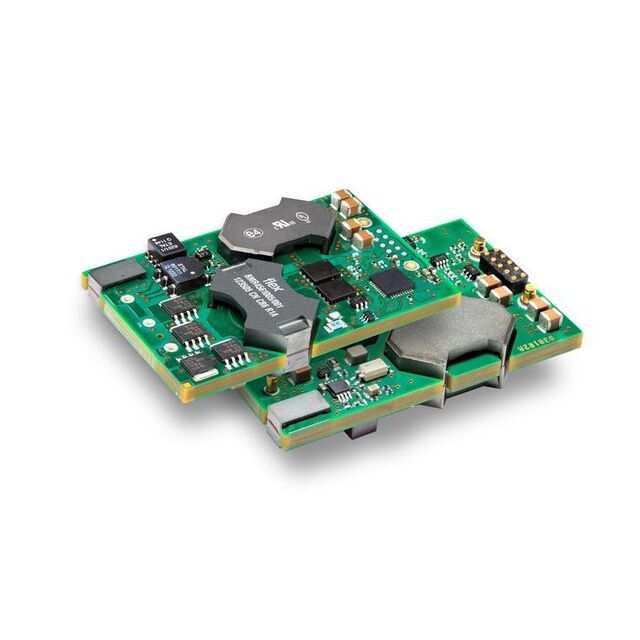

BMR456 Series
Manufacturer: Flex Power Modules
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DC DC CONVERTER 12V 420W
| Part | Voltage - Input (Max) | Features | Type | Mounting Type | Efficiency | Voltage - Output 1 | Approval Agency | Control Features | Package / Case | Voltage - Isolation | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Number of Outputs | Power (Watts) | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Voltage - Input (Min) | Applications | Standard Number | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 75 V | Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense | Digital Isolated Module | Through Hole | 96.4 % | 12 V | CB CSA IEC TUV UL | Active Low Enable | Quarter Brick | 2.25 kV | Quarter Brick | -40 °C | 125 °C | 1 | 420 W | 0.52 in | 1.45 in | 2.28 in | 36 V | ITE (Commercial) | 62368-1 | 35 A |
Flex Power Modules | 60 V | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Isolated Module | Through Hole | 96.8 % | 12 V | CB CSA IEC TUV UL | Active Low Enable | Quarter Brick | 2.25 kV | Quarter Brick | -40 °C | 125 °C | 1 | 468 W | 0.44 in | 1.45 in | 2.28 in | 40 V | ITE (Commercial) | 62368-1 | 39 A |
 Flex Power Modules | 75 V | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Isolated Module | Through Hole | 96.4 % | 12 V | CB CSA IEC TUV UL | Active Low Enable | Quarter Brick | 2.25 kV | Quarter Brick | -40 °C | 125 °C | 1 | 420 W | 0.44 in | 1.45 in | 2.28 in | 36 V | ITE (Commercial) | 62368-1 | 35 A |
Flex Power Modules | 75 V | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Isolated Module | Through Hole | 96.4 % | 12 V | CB CSA IEC TUV UL | Active Low Enable | Quarter Brick | 2.25 kV | Quarter Brick | -40 °C | 125 °C | 1 | 420 W | 0.44 in | 1.45 in | 2.28 in | 36 V | ITE (Commercial) | 62368-1 | 35 A |
Flex Power Modules | 75 V | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Isolated Module | Through Hole | 12 V | CB CSA IEC TUV UL | Active Low Enable | Quarter Brick | 2.25 kV | Quarter Brick | -40 °C | 125 °C | 1 | 420 W | 0.44 in | 1.45 in | 2.28 in | 36 V | ITE (Commercial) | 62368-1 | 35 A | |
Flex Power Modules | 75 V | Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense | Digital Isolated Module | Through Hole | 96.4 % | 12 V | CB CSA IEC TUV UL | Active Low Enable | Quarter Brick | 2.25 kV | Quarter Brick | -40 °C | 125 °C | 1 | 420 W | 0.52 in | 1.45 in | 2.28 in | 36 V | ITE (Commercial) | 62368-1 | 35 A |
