Sd0 Series Series

IC & Component Sockets .100" Double Row Screw Machine Socket Strip

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

IC & Component Sockets .100" Double Row Screw Machine Socket Strip

Part	Voltage Rating	Length	Length [x]	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Contact Material	Mechanical Life	Termination Style	Actuator Type	Current Rating (Amps)	Contact Finish	Electrical Life	Body Material	Circuit	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Length	Number of Positions	Features	Length [x]

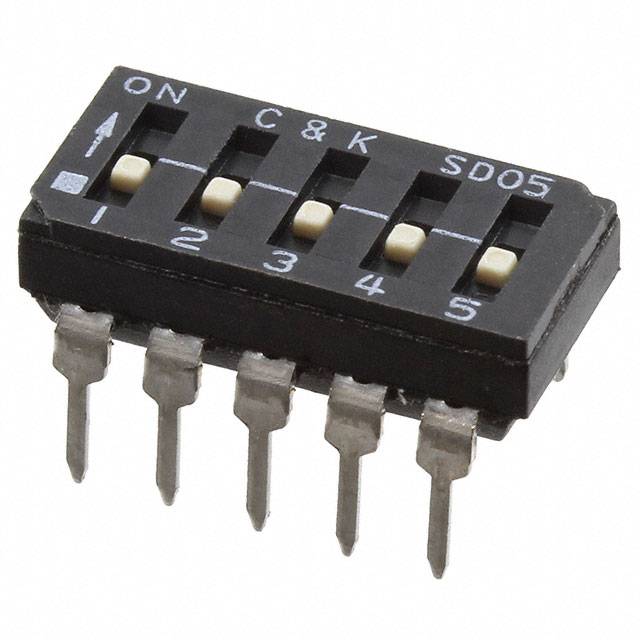

Littelfuse/Commercial Vehicle Products SD05H0BD	25 V	14.17 mm	0.558 in	0.1 in	Full	2.54 mm	Through Hole	Beryllium Copper	2000 Cycles	PC Pin	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Flush Recessed	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products SD08H1SBD	25 V	21.8 mm		0.1 in	Full	2.54 mm	Surface Mount	Beryllium Copper	2000 Cycles	Gull Wing	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Raised	85 °C	-40 °C	0.165 "	4.2 mm	0.858 "	8

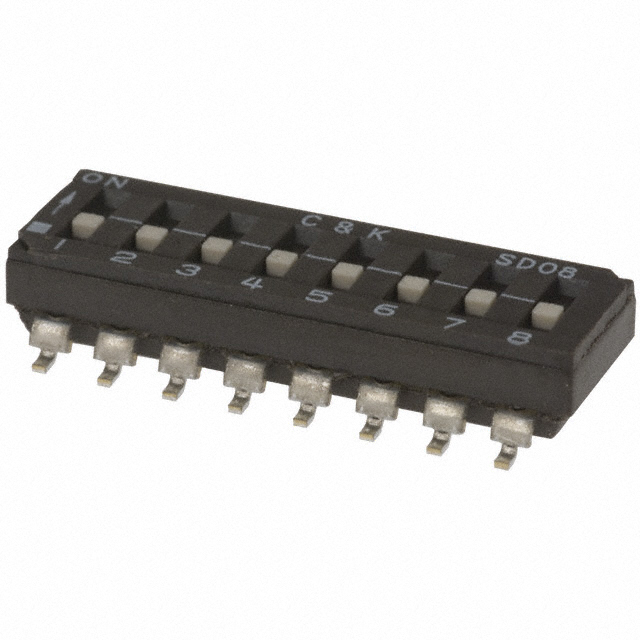

Littelfuse/Commercial Vehicle Products SD08H0SBD	25 V	21.8 mm		0.1 in	Full	2.54 mm	Surface Mount	Beryllium Copper	2000 Cycles	Gull Wing	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Flush Recessed	85 °C	-40 °C	0.155 in	3.94 mm	0.858 "	8
Littelfuse/Commercial Vehicle Products SD10H1B	25 V	26.87 mm		0.1 in	Full	2.54 mm	Through Hole	Beryllium Copper	2000 Cycles	PC Pin	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Raised	85 °C	-40 °C	0.178 "	4.52 mm	1.058 in	10	Tape Seal

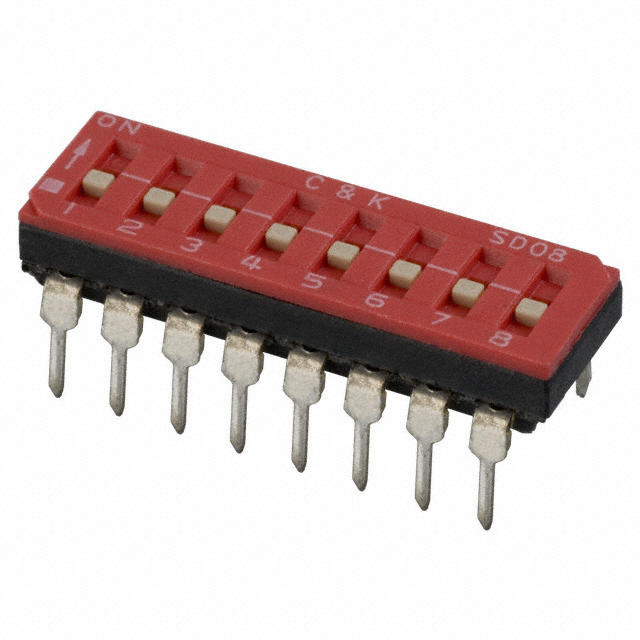

Littelfuse/Commercial Vehicle Products SD08H0B	25 V	21.8 mm		0.1 in	Full	2.54 mm	Through Hole	Beryllium Copper	2000 Cycles	PC Pin	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Flush Recessed	85 °C	-40 °C	0.178 "	4.52 mm	0.858 "	8	Tape Seal
Littelfuse/Commercial Vehicle Products SD02H0BD	25 V	6.55 mm		0.1 in	Full	2.54 mm	Through Hole	Beryllium Copper	2000 Cycles	PC Pin	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Flush Recessed	85 °C	-40 °C			0.258 in	2
Littelfuse/Commercial Vehicle Products SD02H1B	25 V	6.55 mm		0.1 in	Full	2.54 mm	Through Hole	Beryllium Copper	2000 Cycles	PC Pin	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Raised	85 °C	-40 °C	0.178 "	4.52 mm	0.258 in	2	Tape Seal

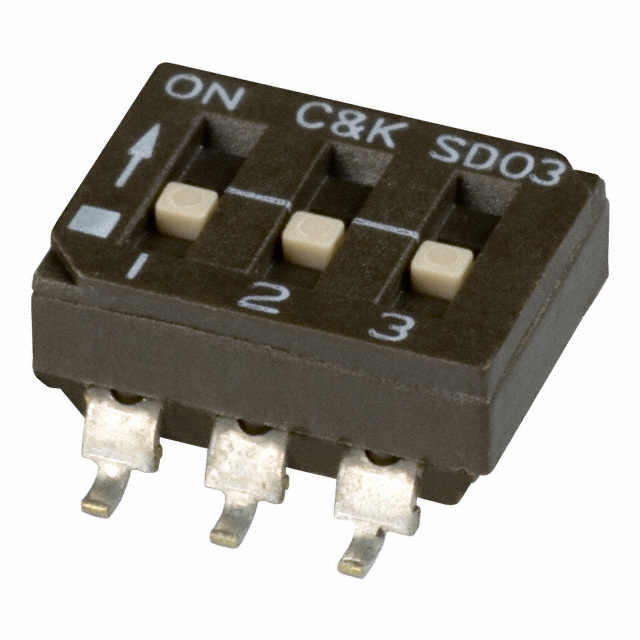

Littelfuse/Commercial Vehicle Products SD03H0SB	25 V		0.358 "	0.1 in	Full	2.54 mm	Surface Mount	Beryllium Copper	2000 Cycles	Gull Wing	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Flush Recessed	85 °C	-40 °C	0.17 in	4.33 mm			Tape Seal	9.09 mm

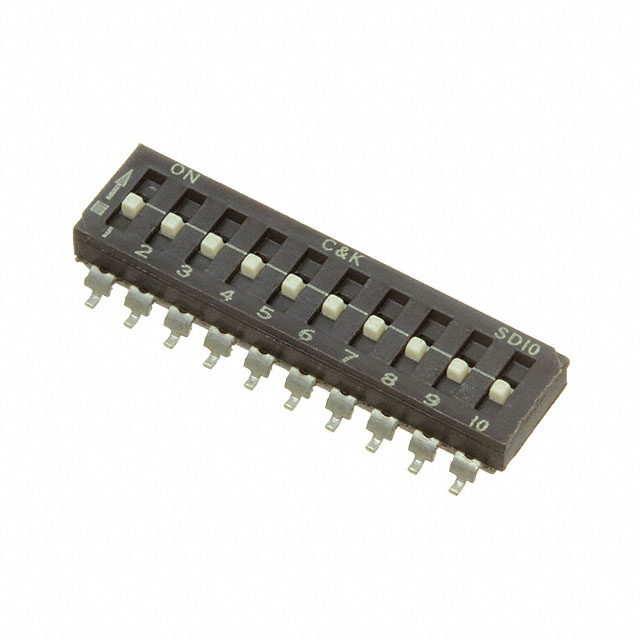

Littelfuse/Commercial Vehicle Products SD10H1SBD	25 V	26.87 mm		0.1 in	Full	2.54 mm	Surface Mount	Beryllium Copper	2000 Cycles	Gull Wing	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Raised	85 °C	-40 °C	0.165 "	4.2 mm	1.058 in	10

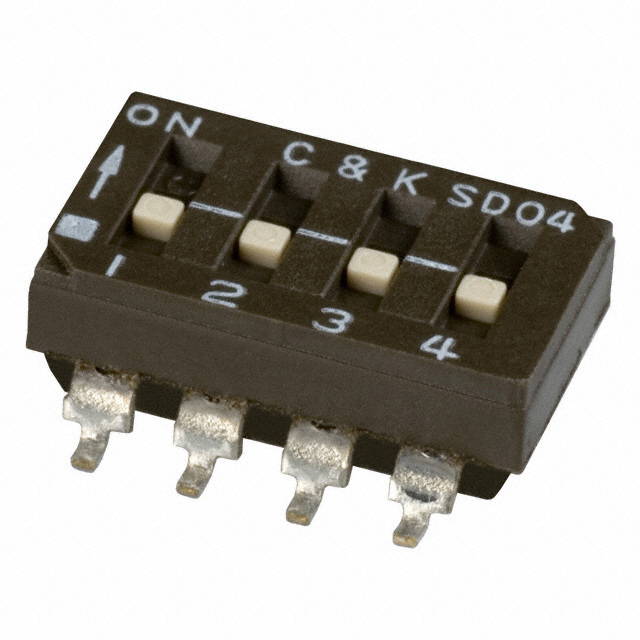

Littelfuse/Commercial Vehicle Products SD04H0SB1R	25 V	11.63 mm		0.1 in	Full	2.54 mm	Surface Mount	Beryllium Copper	2000 Cycles	Gull Wing	Slide (Standard)	100 mA	Gold	2000 Steps	Polyphthalamide (PPA)	SPST	Flush Recessed	85 °C	-40 °C	0.17 in	4.33 mm	0.458 in	4	Tape Seal

Catalog

IC & Component Sockets .100" Double Row Screw Machine Socket Strip

Key Features

• Low profile design saves space

• Thru-hole and surface mount models

• Tape and reel packaging available

Description

The SD series from C&K are long lasting, high quality low profile DIP switches that are available in thru-hole or surface mount models and with tape or reel packaging. The SD series’ low-profile design saves space and are perfect to power address switches for industrial controls, logic switching for computers and various function controls.
