805-87 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 93POS 0.1 GOLD PCB

...

Part	Contact Material	Insulation Material	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Type	Material Flammability Rating	Contact Finish Thickness - Mating	Fastening Type	Insulation Color	Number of Rows [custom]	Insulation Height [z]	Insulation Height	Termination	Number of Positions	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Mounting Type	Number of Positions Loaded	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions [custom]

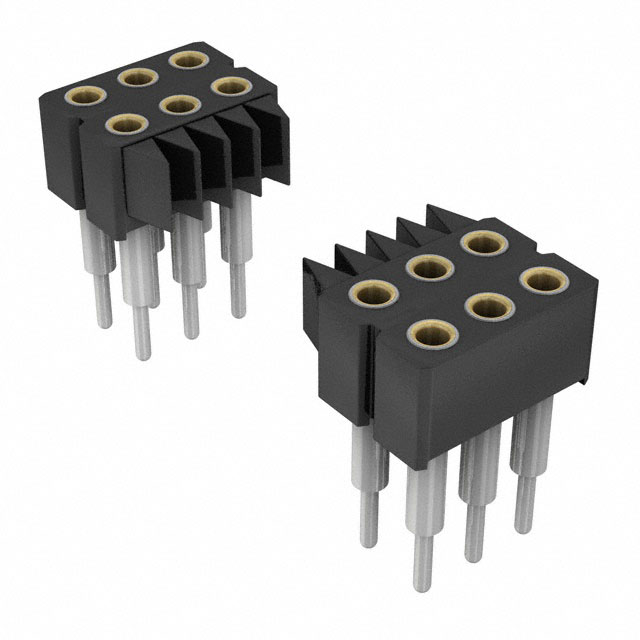

Preci-Dip 805-87-093-10-005101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3	0.331 in	8.4 mm	Solder	93	2.95 mm	0.116 in	Socket	Gold	3 A	Through Hole	All
Preci-Dip 805-87-090-10-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		6.91 mm	Solder	90			Socket	Gold	3 A	Through Hole	All	0.272 in	0.122 in	3.1 mm

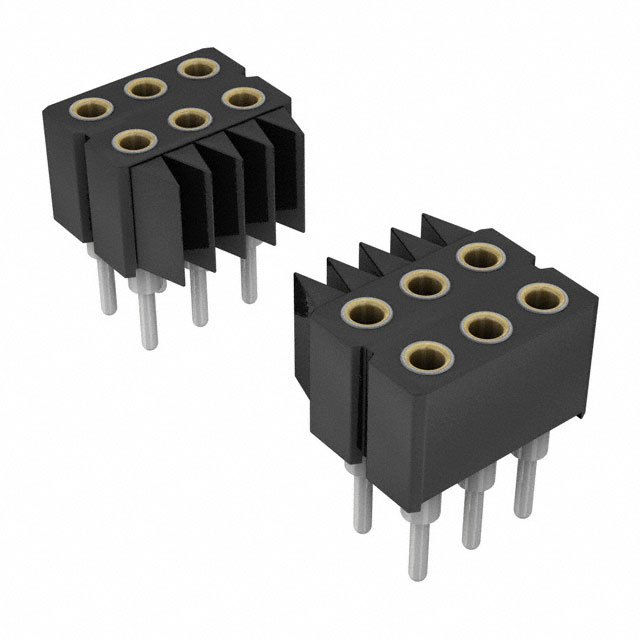

Preci-Dip 805-87-036-10-132101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		7 mm	Solder	36	3 mm	0.118 in	Socket	Gold	3 A	Through Hole	All	0.276 in
Preci-Dip 805-87-030-10-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		6.91 mm	Solder	30			Socket	Gold	3 A	Through Hole	All	0.272 in	0.122 in	3.1 mm
Preci-Dip 805-87-087-10-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		6.91 mm	Solder	87			Socket	Gold	3 A	Through Hole	All	0.272 in	0.122 in	3.1 mm

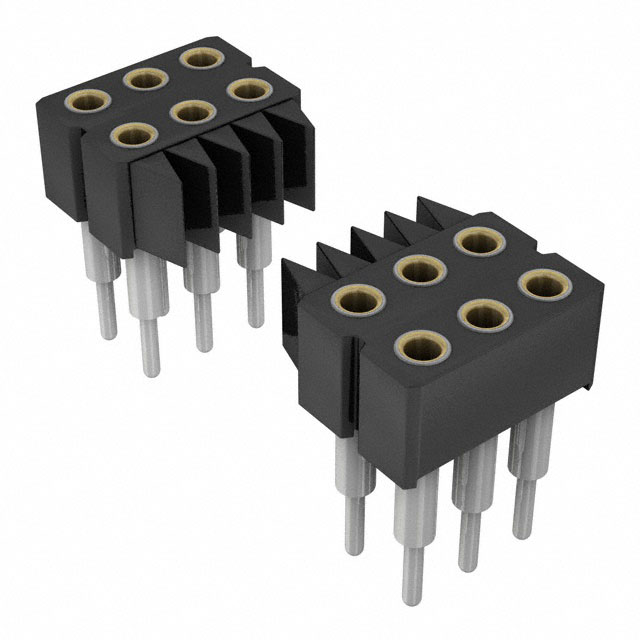

Preci-Dip 805-87-090-10-003101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		7.92 mm	Solder	90	3.08 mm	0.121 in	Socket	Gold	3 A	Through Hole	All	0.312 in
Preci-Dip 805-87-084-10-003101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		7.92 mm	Solder		3.08 mm	0.121 in	Socket	Gold	3 A	Through Hole	All	0.312 in			84
Preci-Dip 805-87-096-10-003101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		7.92 mm	Solder	96	3.08 mm	0.121 in	Socket	Gold	3 A	Through Hole	All	0.312 in

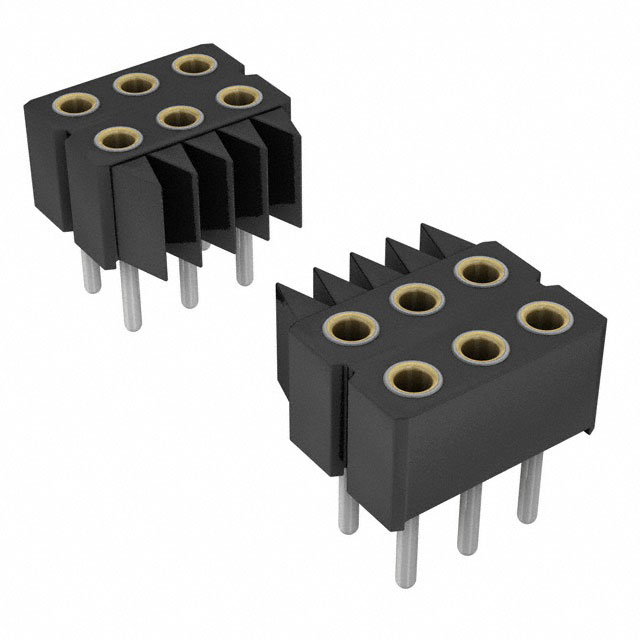

Preci-Dip 805-87-090-10-012101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		4.2 mm	Solder	90	3.18 mm	0.125 in	Socket	Gold	3 A	Through Hole	All	0.165 in
Preci-Dip 805-87-033-10-012101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 in	2.54 mm	Tin	-55 C	125 °C	0.1 "	2.54 mm	Female Socket	UL94 V-0	Flash	Push-Pull	Black	3		4.2 mm	Solder		3.18 mm	0.125 in	Socket	Gold	3 A	Through Hole	All	0.165 in			33
