ALCOSWITCH FSMIJ Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TACTILE SWITCHES 6X6 ILL TACT SMT 260GF LI COLD WHITE
| Part | Mechanical Life | Switch Travel | Actuator Material | Mounting Type | Actuator Type | Illumination Type, Color | Features | Circuit | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Contact Rating @ Voltage | Actuator Orientation | Outline [x] | Outline [y] | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

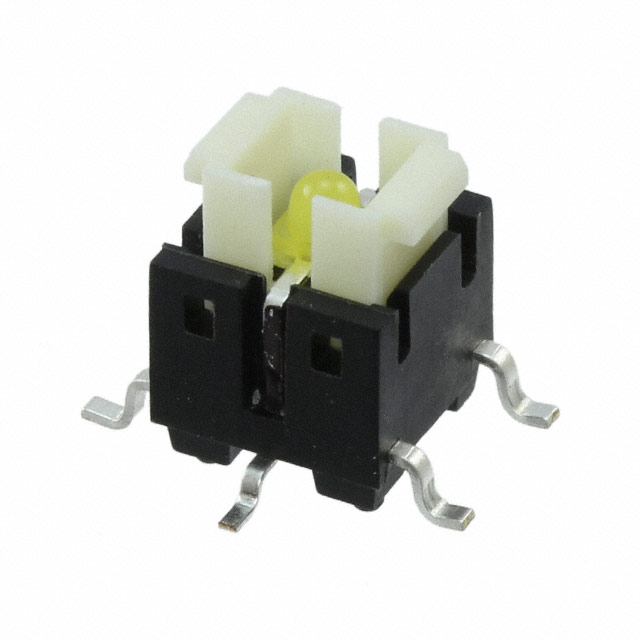

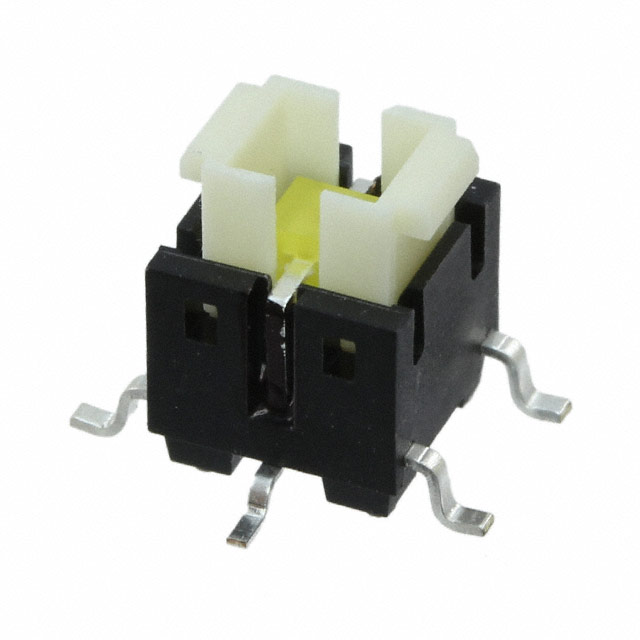

 TE Connectivity AMP Connectors | 200000 Cycles | 0.2 mm | Thermoplastic | Surface Mount | Plunger for Cap | LED White | Tactile/Audible Feedback | SPST-NO | 260 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | Gull Wing | Off-Mom |

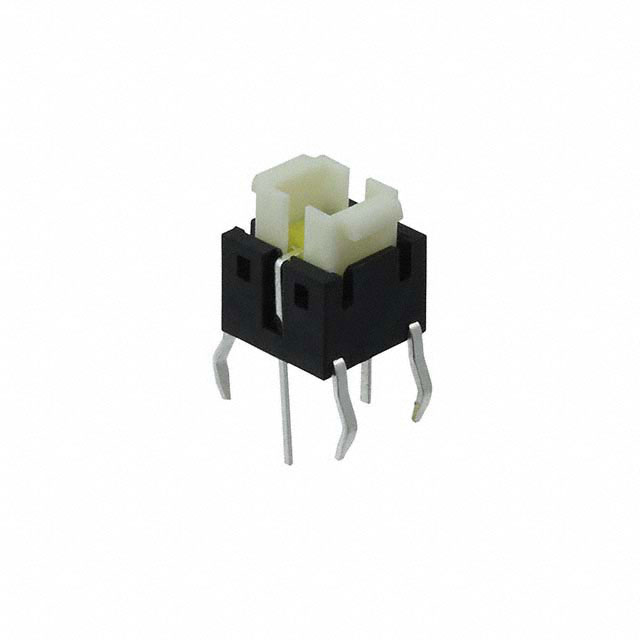

 TE Connectivity AMP Connectors | 200000 Cycles | 0.2 mm | Thermoplastic | Through Hole | Plunger for Cap | LED White | Tactile/Audible Feedback | SPST-NO | 260 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | PC Pin | Off-Mom |
 TE Connectivity AMP Connectors | 500000 Cycles | 0.2 mm | Thermoplastic | Surface Mount | Plunger for Cap | LED Orange | Tactile/Audible Feedback | SPST-NO | 160 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | Gull Wing | Off-Mom |
 TE Connectivity AMP Connectors | 500000 Cycles | 0.2 mm | Thermoplastic | Surface Mount | Plunger for Cap | Green LED | Tactile/Audible Feedback | SPST-NO | 160 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | Gull Wing | Off-Mom |
 TE Connectivity AMP Connectors | Through Hole | Plunger for Cap | Green/Yellow LED | Tactile/Audible Feedback | SPST-NO | 160 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | PC Pin | Off-Mom | |||

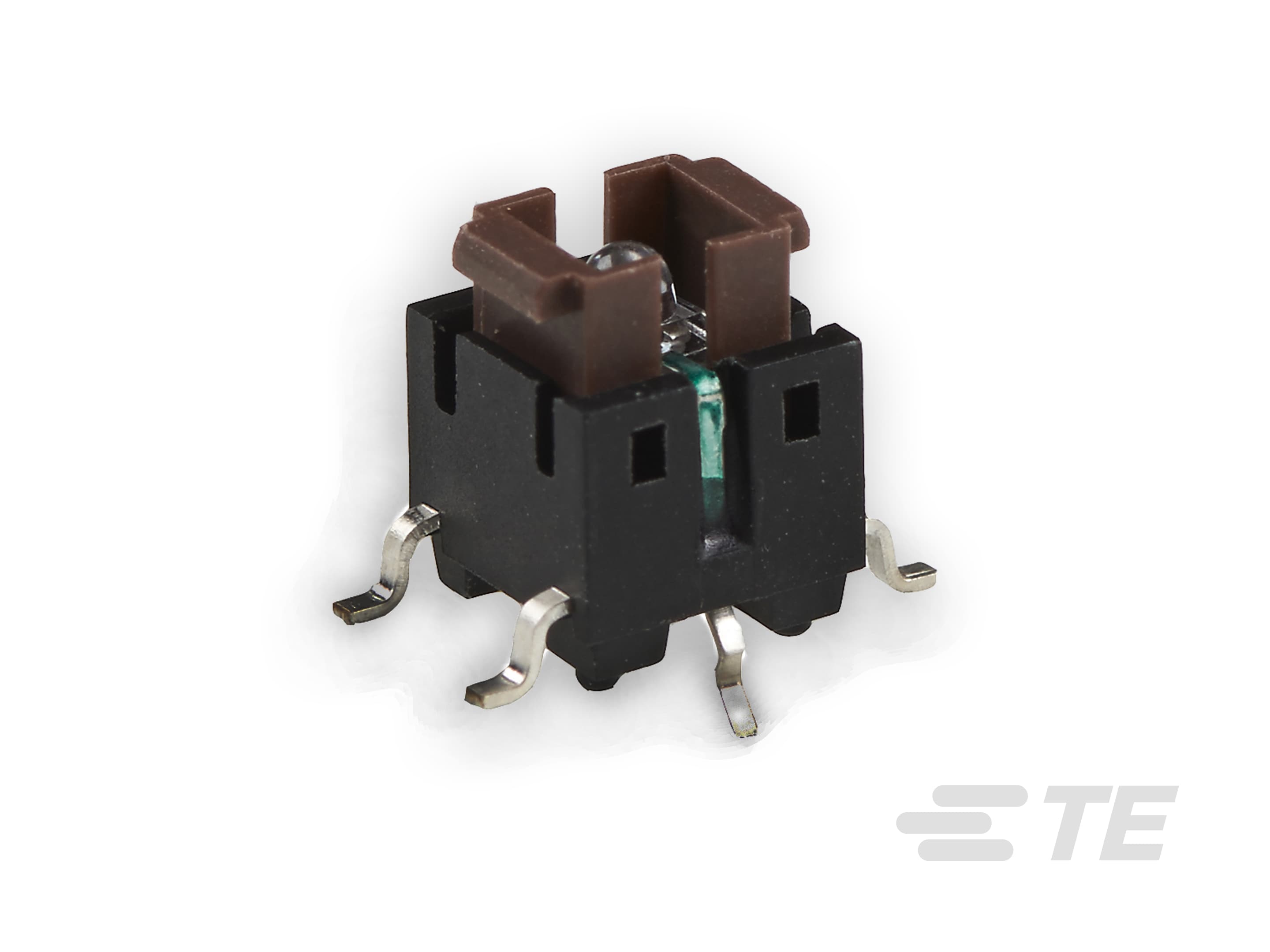

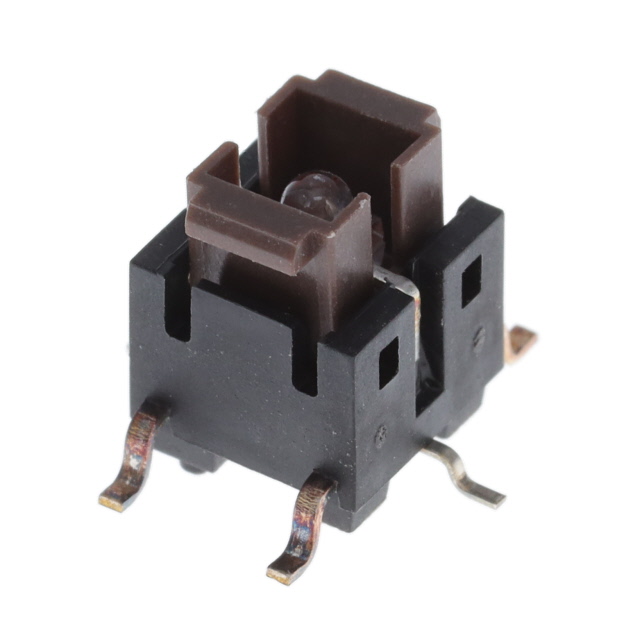

 TE Connectivity AMP Connectors | Surface Mount | Plunger for Cap | LED Orange | Tactile/Audible Feedback | SPST-NO | 100 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | Gull Wing | Off-Mom | |||
 TE Connectivity AMP Connectors | 500000 Cycles | 0.2 mm | Thermoplastic | Through Hole | Plunger for Cap | LED Orange/Red | Tactile/Audible Feedback | SPST-NO | 100 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | PC Pin | Off-Mom |
 TE Connectivity AMP Connectors | 200000 Cycles | 0.2 mm | Thermoplastic | Through Hole | Plunger for Cap | Blue LED | Tactile/Audible Feedback | SPST-NO | 260 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | PC Pin | Off-Mom |
TE Connectivity AMP Connectors | Surface Mount | Plunger for Cap | LED Yellow | Tactile/Audible Feedback | SPST-NO | 100 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | Gull Wing | Off-Mom | |||
 TE Connectivity AMP Connectors | 200000 Cycles | 0.2 mm | Thermoplastic | Surface Mount | Plunger for Cap | LED White | Tactile/Audible Feedback | SPST-NO | 260 gf | -25 °C | 70 °C | Illuminated | 0.05 A 12 VDC | Top Actuated | 6 mm | 6 mm | Gull Wing | Off-Mom |
