ODLV-45 Series

Catalog

O/P 12V3.0A

Part	Mounting Type	Features	Power (Watts)	Voltage - Output	Current - Output (Max) [Max]	Dimming	Ratings	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Type	Topology	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]

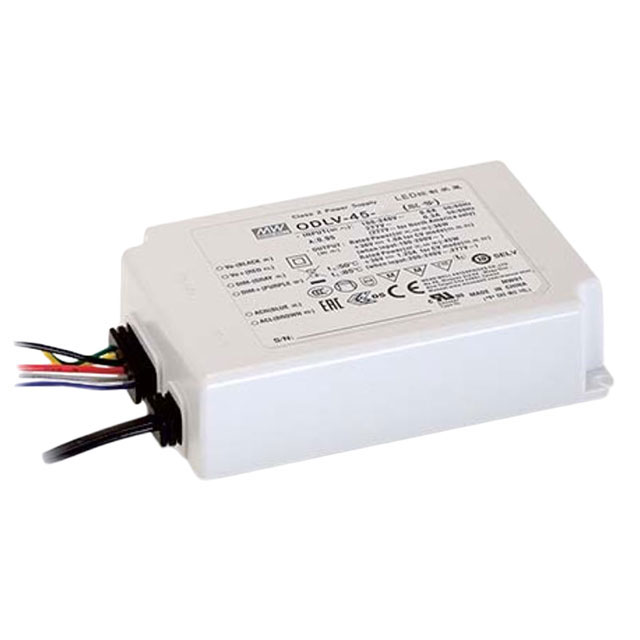

MEAN WELL USA Inc. ODLV-45-12	Chassis Mount	OCP SCP	36 W	12 V	3 A	Analog PWM	IP67	84 %	295 VAC	1	90 VAC	Constant Voltage	AC DC Converter	Wire Leads	85 °C	-20 ░C	3750 VDC	CB CCC CE cURus EAC ENEC	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in
MEAN WELL USA Inc. ODLV-45A-12	Chassis Mount	OCP SCP	36 W	12 V	3 A	Analog PWM	IP67	84 %	295 VAC	1	90 VAC	Constant Voltage	AC DC Converter	Wire Leads	85 °C	-20 ░C	3750 VDC	CB CCC CE cURus EAC ENEC	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in
MEAN WELL USA Inc. ODLV-45-36	Chassis Mount	OCP SCP	45 W	36 V	1.25 A	Analog PWM	IP67	88 %	295 VAC	1	90 VAC	Constant Voltage	AC DC Converter	Wire Leads	85 °C	-20 ░C	3750 VDC	CB CCC CE cURus EAC ENEC	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in
MEAN WELL USA Inc. ODLV-45A-36	Chassis Mount	OCP SCP	45 W	36 V	1.25 A	Analog PWM	IP67	88 %	295 VAC	1	90 VAC	Constant Voltage	AC DC Converter	Wire Leads	85 °C	-20 ░C	3750 VDC	CB CCC CE cURus EAC ENEC	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in
MEAN WELL USA Inc. ODLV-45A-48	Chassis Mount	OCP SCP	45 W	48 V	940 mA	Analog PWM	IP67	88 %	295 VAC	1	90 VAC	Constant Voltage	AC DC Converter	Wire Leads	85 °C	-20 ░C	3750 VDC	CB CCC CE cURus EAC ENEC	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in
