SFW18S Series

Catalog

CONN FFC FPC VERT 18POS 1MM SMD

Part	Housing Color	Mating Cycles	FFC, FCB Thickness	Voltage Rating	Actuator Material	Termination	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Material Flammability Rating	Pitch	Pitch	Mounting Type	Housing Material	Flat Flex Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Number of Positions	Cable End Type	Locking Feature	Actuator Color	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features

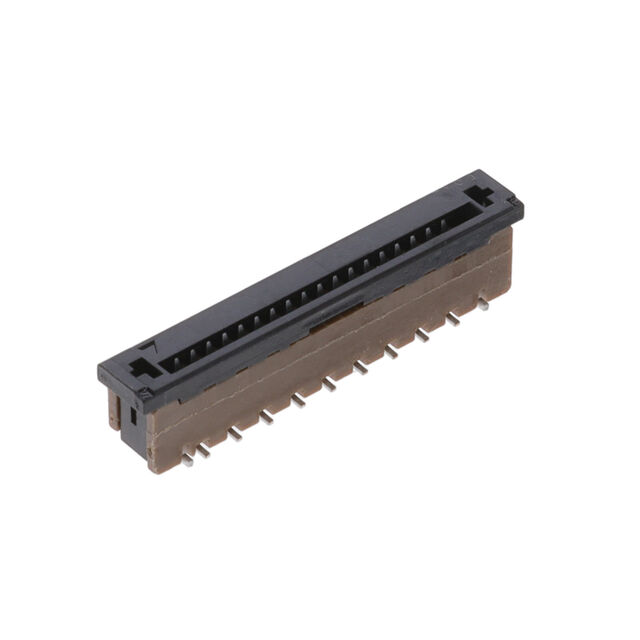

Amphenol ICC (FCI) SFW18S-2STME1LF	Brown	20	0.33 mm	100 V	Thermoplastic Glass Filled	Solder	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	UL94 V-0	1 mm	0.039 in	Surface Mount	Glass Filled Thermoplastic	FFC FPC	-55 C	105 ░C	Tin	Phosphor Bronze	18

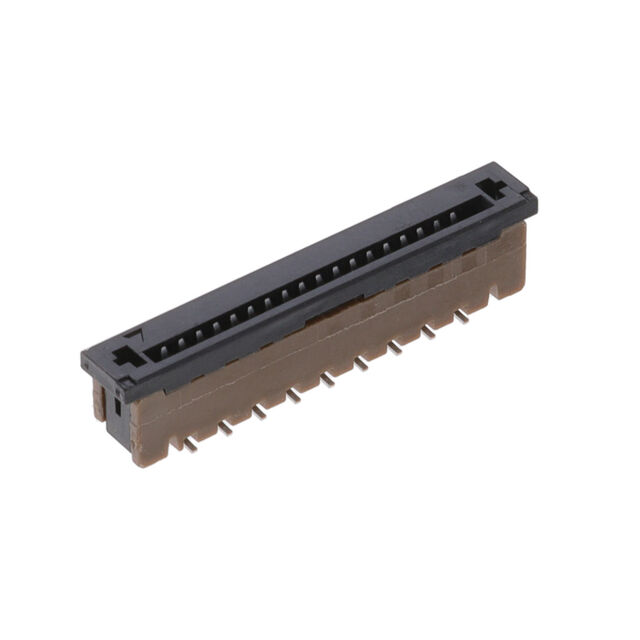

Amphenol ICC (FCI) SFW18S-2STE1LF	Brown	20	0.3 mm	100 V	Thermoplastic Glass Filled	Kinked Pin	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	UL94 V-0	1 mm	0.039 in	Surface Mount	Glass Filled Thermoplastic	FFC FPC	-55 C	105 ░C	Tin	Phosphor Bronze	18	Straight or Tapered	Slide Lock
Amphenol ICC (FCI) SFW18S-2STMAE1LF	Brown	20	0.3 mm	100 V	Thermoplastic Glass Filled	Kinked Pin	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	UL94 V-0	1 mm	0.039 in	Surface Mount	Glass Filled Thermoplastic	FPC	-55 C	85 °C	Gold	Phosphor Bronze	18	Straight or Tapered
Amphenol ICC (FCI) SFW18S-2STME5LF	Brown				Thermoplastic Glass Filled	Solder	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	UL94 V-0	1 mm	0.039 in	Surface Mount		FFC FPC			Tin	Phosphor Bronze	18	Straight Tapered	Slide Lock	Black	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW18S-6STME1LF	Brown	10	0.33 mm	100 V	Thermoplastic Glass Filled	Solder	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	UL94 V-0	1 mm	0.039 in	Surface Mount	Glass Filled Thermoplastic	CIC	-55 C	85 °C	Tin	Phosphor Bronze	18
Amphenol ICC (FCI) SFW18S-2STAE1LF	Brown	20	0.3 mm	100 V	Thermoplastic Glass Filled	Solder	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	UL94 V-0	1 mm	0.039 in	Surface Mount	Glass Filled Thermoplastic	FPC	-55 C	85 °C	Gold	Phosphor Bronze	18	Tapered	Slide Lock	Black
Amphenol ICC (FCI) SFW18S-6STME1	Brown	10	0.3 mm	100 V	Thermoplastic Glass Filled	Solder	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	UL94 V-0	1 mm	0.039 in	Surface Mount	Glass Filled Thermoplastic	CIC	-55 C	85 °C	Tin Alloy	Phosphor Bronze	18	Tapered	Slide Lock	Black			Solder Retention Zero Insertion Force (ZIF)
