745412 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

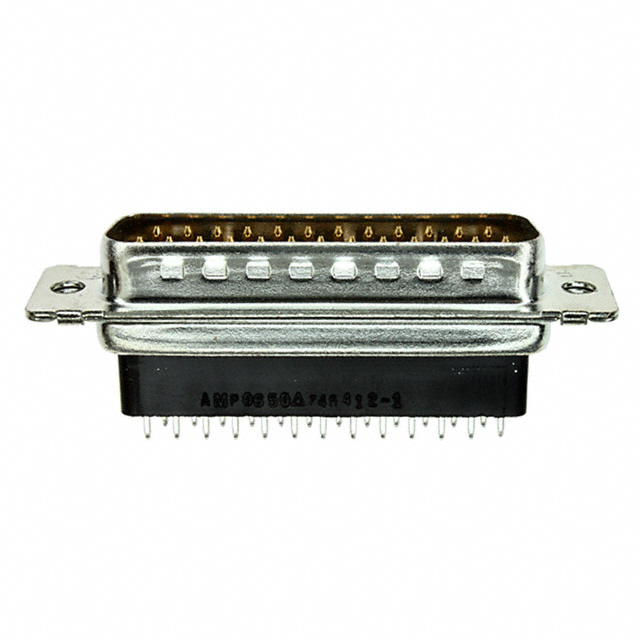

CONN D-SUB PLUG 25POS VERT SLDR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Connector Style | Connector Type | Mounting Type | Termination | Contact Finish | Current Rating (Amps) | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Features | Flange Feature | Number of Rows [custom] | Number of Positions | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | Thermoplastic | -55 C | 105 ░C | Black | 125 VDC | D-Sub | Plug Male Pins | Through Hole | Solder | Gold | 6 A | UL94 V-0 | B DB | 3 | Grounding Indents | Housing/Shell (Unthreaded) | 2 | 25 | Signal |
 TE Connectivity AMP Connectors | Brass | Thermoplastic | -55 C | 105 ░C | Black | 125 VDC | D-Sub | Plug Male Pins | Through Hole | Solder | Gold | 6 A | UL94 V-0 | B DB | 3 | Grounding Indents | Housing/Shell (Unthreaded) | 2 | 25 | Signal |
