S4B-PH-K Series

Catalog

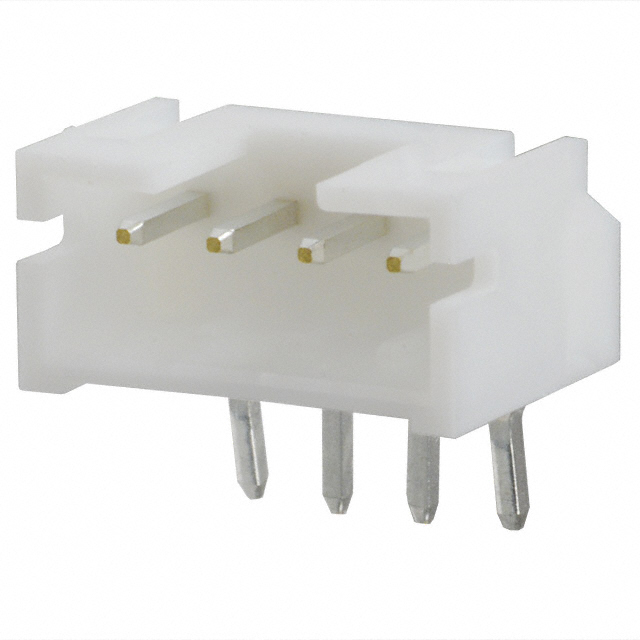

CONN HEADER R/A 4POS 2MM

Part	Contact Length - Mating	Contact Length - Mating	Connector Type	Number of Positions	Contact Material	Mounting Type	Style	Insulation Height	Insulation Height	Contact Finish - Post	Contact Shape	Number of Rows	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Finish - Mating	Current Rating (Amps)	Shrouding	Insulation Material	Voltage Rating	Fastening Type	Number of Positions Loaded	Contact Type
JST Sales America Inc. S4B-PH-K-S-GZ	0.13 in	3.3 mm	Header	4	Brass	Right Angle Through Hole	Board to Cable/Wire	4.8 mm	0.189 in	Tin-Lead	Square	1	Press-Fit Solder	UL94 V-0	0.079 "	2 mm	0.134 "	3.4 mm	85 °C	-25 °C	Natural	Tin-Lead	2 A	Shrouded - 4 Wall	Nylon 6/6 Polyamide (PA66)	100 V	Detent Lock	All	Male Pin
JST Sales America Inc. S4B-PH-K-S	0.13 in	3.3 mm	Header	4	Brass	Right Angle Through Hole	Board to Cable/Wire	4.8 mm	0.189 in	Tin	Square	1	Press-Fit Solder	UL94 V-0	0.079 "	2 mm	0.134 "	3.4 mm	85 °C	-25 °C	Natural		2 A	Shrouded - 4 Wall	Nylon 6/6 Polyamide (PA66)	100 V	Detent Lock	All	Male Pin
JST Sales America Inc. S4B-PH-KL			Header	4	Copper Alloy	Right Angle Through Hole	Board to Cable/Wire	4.8 mm	0.189 in	Tin	Square	1	Press-Fit Solder	UL94 V-0	0.079 "	2 mm	0.134 "	3.4 mm	85 °C	-25 °C	Gray		2 A	Shrouded - 4 Wall	Nylon 6/6 Polyamide (PA66)	100 V	Detent Lock	All	Male Pin
