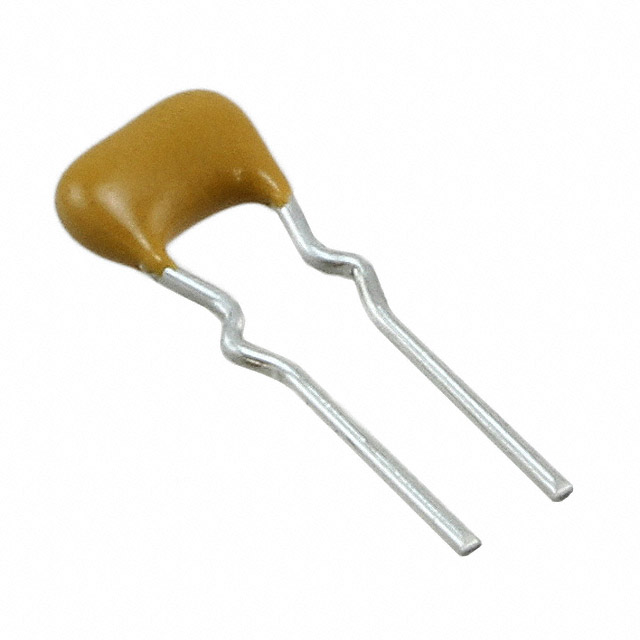

C324C Series
Manufacturer: KEMET
Beta
⌘K
CAP CER 8.2PF 250V C0G/NP0 RAD
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Lead Spacing | Lead Spacing | Tolerance | Features | Height - Seated (Max) | Height - Seated (Max) [Max] | Package / Case | Capacitance | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | Applications | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.5 pF | Low ESL | 5.84 mm | 0.23 in | Radial | 8.2 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 250 V | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 1 % | Low ESL | 5.84 mm | 0.23 in | Radial | 0.022 µF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 50 VDC | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 2 % | Low ESL | 5.84 mm | 0.23 in | Radial | 47 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 25 VDC | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 5 % | Low ESL | 5.84 mm | 0.23 in | Radial | 820 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 250 V | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 1 % | Low ESL | 5.84 mm | 0.23 in | Radial | 6800 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 250 V | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 1 % | Low ESL | 5.84 mm | 0.23 in | Radial | 220 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 25 VDC | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 5 % | Low ESL | 5.84 mm | 0.23 in | Radial | 330 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 250 V | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 1 % | Low ESL | 5.84 mm | 0.23 in | Radial | 2400 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 25 VDC | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 pF | Low ESL | 5.84 mm | 0.23 in | Radial | 2.7 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 250 V | General Purpose | Formed Leads - Kinked |
KEMET | Through Hole | -55 C | 125 °C | 2.54 mm | 0.1 in | 5 % | Low ESL | 5.84 mm | 0.23 in | Radial | 820 pF | C0G NP0 | 3.18 mm | 0.2 in | 5.08 mm | 0.125 " | 250 V | General Purpose | Formed Leads - Kinked |
