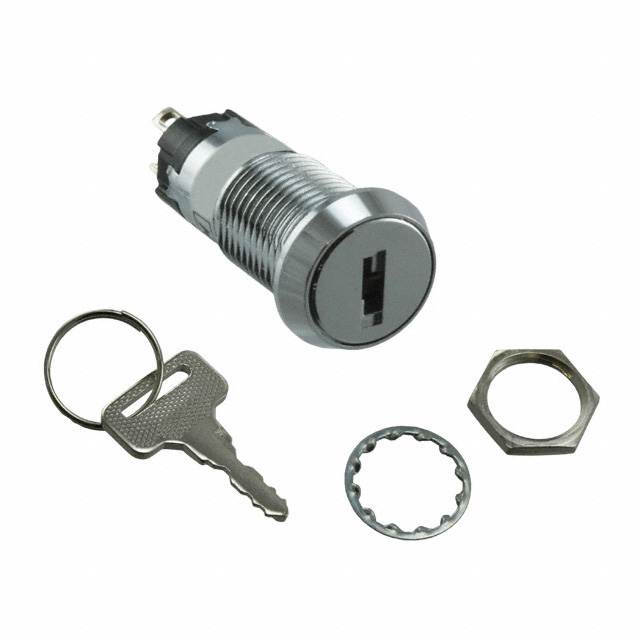

SK13ED Series

Catalog

SWITCH KEYLOCK 3POS SPDT 3A 125V

Part	Electrical Life	Depth Behind Flange	Mechanical Life	Panel Cutout Dimensions [diameter]	Contact Timing	Features	Mounting Type	Current Rating (Amps)	Contact Material	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Switch Function	Key Removable Positions	Actuator Type	Circuit	Angle of Throw
NKK Switches SK13EDW01-008	10000 Cycles	29.2 mm	30000 Steps	12 mm	Non-Shorting (BBM)	Epoxy Sealed Terminals	Panel Mount	3 A	Silver (Ag)	Solder Lug	-25 °C	70 °C	125 V	On-Off-On	2	Flat Key	SPDT	45 °
NKK Switches SK13EDW01-006	10000 Cycles	29.2 mm	30000 Steps	12 mm	Non-Shorting (BBM)	Epoxy Sealed Terminals	Panel Mount	3 A	Silver (Ag)	Solder Lug	-25 °C	70 °C	125 V	On-Off-On	2	Flat Key	SPDT	45 °
NKK Switches SK13EDW01-004	10000 Cycles	29.2 mm	30000 Steps	12 mm	Non-Shorting (BBM)	Epoxy Sealed Terminals	Panel Mount	3 A	Silver (Ag)	Solder Lug	-25 °C	70 °C	125 V	On-Off-On	2	Flat Key	SPDT	45 °
