UCC21521 Series

Catalog

5.7KVRMS, 4A/6A DUAL-CHANNEL ISOLATED GATE DRIVER WITH DUAL INPUT, ENABLE, 8V UVLO & LGA PACK

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Pulse Width Distortion (Max) [Max]	Number of Channels	Voltage - Isolation	Mounting Type	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case	Package / Case	Approval Agency	Technology	Common Mode Transient Immunity (Min) [Min]	Supplied Contents	Contents	Function	Utilized IC / Part	Type
Texas Instruments UCC21521DW	16-SOIC	125 °C	-40 C	6 ns	2	5700 Vrms	Surface Mount	30 ns	30 ns	7 ns	6 ns	9.2 V	25 V	6 A	4 A	16-SOIC	7.5 mm	0.295 "	CQC CSA UR VDE	Capacitive Coupling	100 V/ns
Texas Instruments UCC21521ADWR	16-SOIC	125 °C	-40 C	6 ns	2	5700 Vrms	Surface Mount	30 ns	30 ns	7 ns	6 ns	6.5 V	25 V	6 A	4 A	16-SOIC	7.5 mm	0.295 "		Capacitive Coupling	100 V/ns

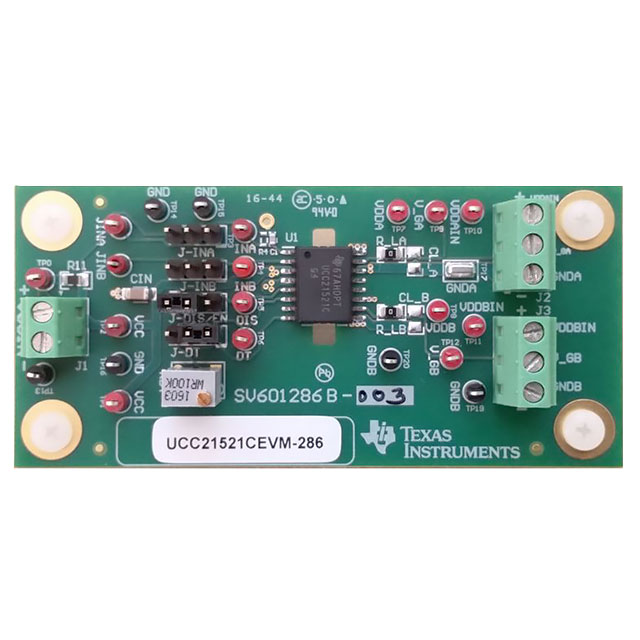

Texas Instruments UCC21521CEVM-286																						Board(s)	Board(s)	Gate Driver	UCC21521	Power Management
Texas Instruments UCC21521CDWR	16-SOIC	125 °C	-40 C	6 ns	2	5700 Vrms	Surface Mount	30 ns	30 ns	7 ns	6 ns	3 V	18 V	6 A	4 A	16-SOIC	7.5 mm	0.295 "		Capacitive Coupling	100 V/ns
Texas Instruments UCC21521DWR	16-SOIC	125 °C	-40 C	6 ns	2	5700 Vrms	Surface Mount	30 ns	30 ns	7 ns	6 ns	9.2 V	25 V	6 A	4 A	16-SOIC	7.5 mm	0.295 "		Capacitive Coupling	100 V/ns
Texas Instruments UCC21521ADW	16-SOIC	125 °C	-40 C	6 ns	2	5700 Vrms	Surface Mount	30 ns	30 ns	7 ns	6 ns	6.5 V	25 V	6 A	4 A	16-SOIC	7.5 mm	0.295 "	CQC CSA UR VDE	Capacitive Coupling	100 V/ns
Texas Instruments UCC21521CDW	16-SOIC	125 °C	-40 C	6 ns	2	5700 Vrms	Surface Mount	30 ns	30 ns	7 ns	6 ns	14.7 V	25 V	6 A	4 A	16-SOIC	7.5 mm	0.295 "	CQC CSA UR VDE	Capacitive Coupling	100 V/ns
