R7FS3A17 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
MCU, 32BIT, 48MHZ, LQFP-100 ROHS COMPLIANT: YES
| Part | Core Size | Data Converters | Mounting Type | Supplier Device Package | Program Memory Type | EEPROM Size | Speed | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Number of I/O | Peripherals | Connectivity | Oscillator Type | Program Memory Size | RAM Size | Package / Case | Core Processor | Operating Temperature [Min] | Operating Temperature [Max] | Data Converters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

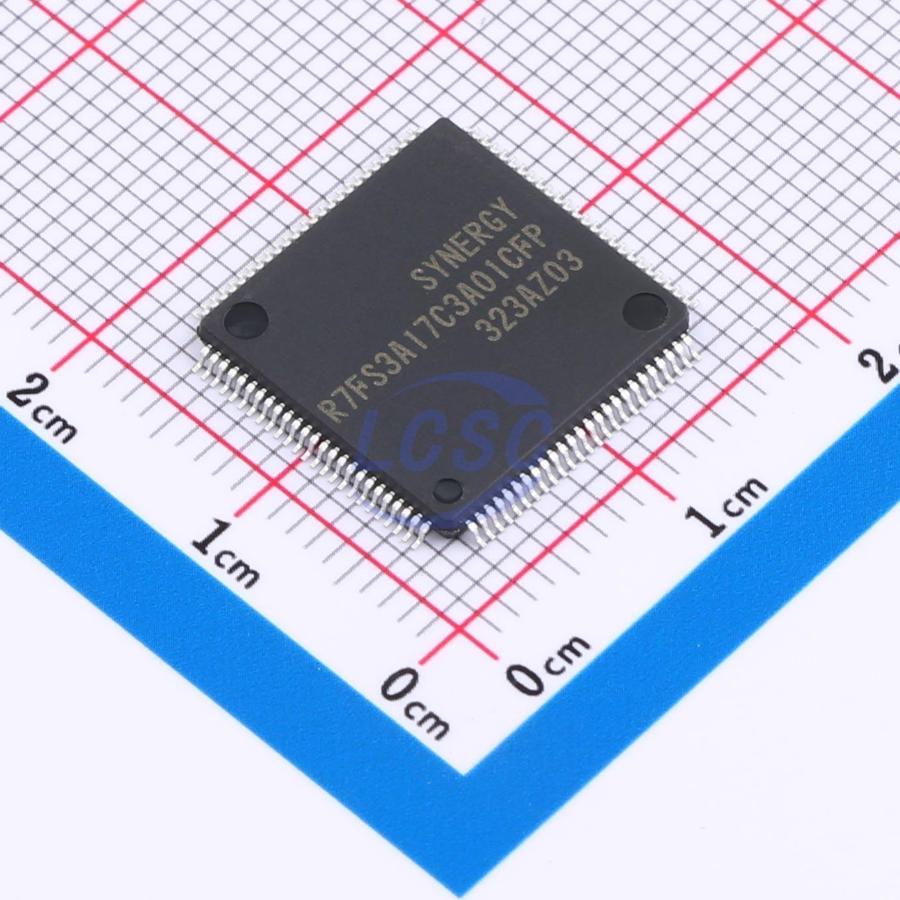

 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | A/D 25x14b D/A 1x12b D/A 2x8b | Surface Mount | 100-LFQFP (14x14) | FLASH | 8 8 K | 48 MHz | 5.5 V | 1.6 V | 84 | DMA LCD LVD POR PWM WDT | CANbus EBI/EMI I2C MMC/SD QSPI SCI SPI SSIE UART/USART USB | Internal | 1 MB | 192 K | 100-LQFP | ARM® Cortex®-M4 | -40 C | 105 ░C | |

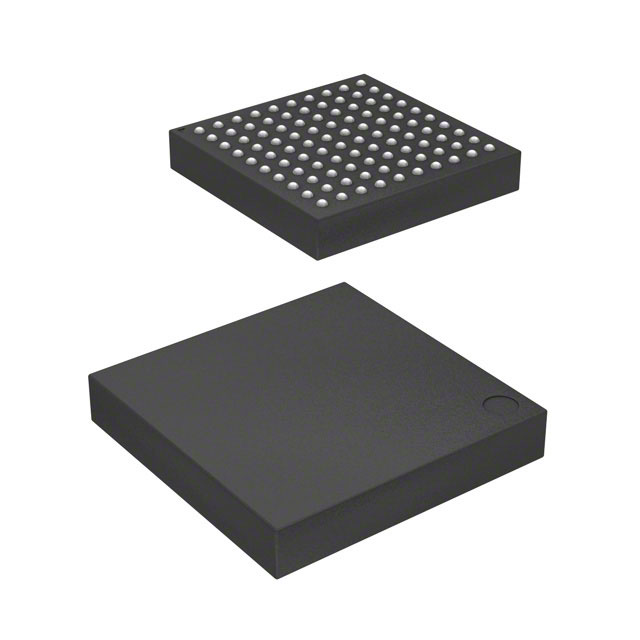

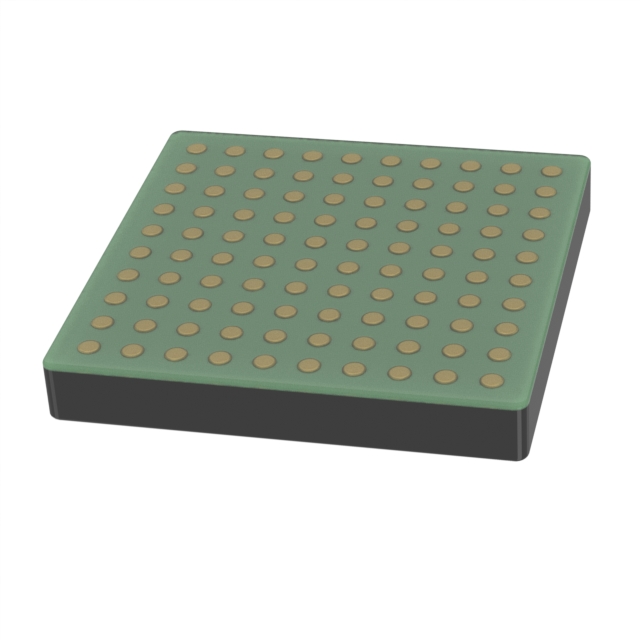

 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | A/D 25x14b D/A 1x12b | Surface Mount | 100-TFLGA (7x7) | FLASH | 8 8 K | 48 MHz | 5.5 V | 1.6 V | 84 | DMA LCD LVD POR PWM WDT | CANbus EBI/EMI I2C MMC/SD QSPI SCI SPI SSIE UART/USART USB | Internal | 1 MB | 192 K | 100-TFLGA | ARM® Cortex®-M4 | -40 ¯C | 85 C | |
 Renesas Electronics Corporation | 32-Bit | A/D 25x14b SAR D/A 1x12b D/A 2x12b | Surface Mount | 100-TFLGA (7x7) | FLASH | 8 8 K | 48 MHz | 5.5 V | 1.6 V | 84 | DMA LCD LVD POR PWM WDT | CANbus EBI/EMI I2C MMC/SD QSPI SCI SPI SSIE UART/USART USB | Internal | 1 MB | 192 K | 100-TFLGA | ARM® Cortex®-M4F | -40 ¯C | 85 C | |
 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | A/D D/A SAR | Surface Mount | 64-HWQFN (8x8) | FLASH | 8 8 K | 48 MHz | 5.5 V | 1.6 V | 52 | DMA LCD LVD POR PWM WDT | CANbus EBI/EMI I2C MMC/SD QSPI SCI SPI SSIE UART/USART USB | Internal | 1 MB | 192 K | 64-WFQFN Exposed Pad | ARM® Cortex®-M4 | -40 °C | 105 °C | 1 channels 2 channels 8 b 12 b 14 b 18 channels |
 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | A/D 28x14b D/A 1x12b | Surface Mount | 144-LFQFP (20x20) | FLASH | 8 8 K | 48 MHz | 5.5 V | 1.6 V | 126 | DMA LCD LVD POR PWM WDT | CANbus EBI/EMI I2C MMC/SD QSPI SCI SPI SSIE UART/USART USB | Internal | 1 MB | 192 K | 144-LQFP | ARM® Cortex®-M4 | -40 °C | 105 °C | |
Renesas Electronics Corporation | 32-Bit | A/D 18x14b SAR D/A 1x12b D/A 2x8b | Surface Mount | 64-HWQFN (8x8) | FLASH | 8 8 K | 48 MHz | 5.5 V | 1.6 V | 52 | DMA LCD LVD POR PWM WDT | CANbus EBI/EMI I2C MMC/SD QSPI SCI SPI SSIE UART/USART USB | Internal | 1 MB | 192 K | 64-WFQFN Exposed Pad | ARM® Cortex®-M4F | -40 °C | 105 °C | |
 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | A/D 18x14b D/A 1x12b D/A 2x8b | Surface Mount | 64-LFQFP (10x10) | FLASH | 8 8 K | 48 MHz | 5.5 V | 1.6 V | 52 | DMA LCD LVD POR PWM WDT | CANbus EBI/EMI I2C MMC/SD QSPI SCI SPI SSIE UART/USART USB | Internal | 1 MB | 192 K | 64-LQFP | ARM® Cortex®-M4 | -40 C | 105 ░C | |
 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | A/D 26x14b D/A 1x12b D/A 2x8b | Surface Mount | 121-LFBGA (8x8) | FLASH | 8 8 K | 48 MHz | 5.5 V | 1.6 V | 104 | DMA LCD LVD POR PWM WDT | CANbus EBI/EMI I2C MMC/SD QSPI SCI SPI SSIE UART/USART USB | Internal | 1 MB | 192 K | 121-LFBGA | ARM® Cortex®-M4 | -40 C | 85 °C |
