P3500ECMCL Series

SIDACtor® Bi 320V 1000A DO214 2L RoHS

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

SIDACtor® Bi 320V 1000A DO214 2L RoHS

Part	Current - Peak Pulse (10/1000µs)	Voltage - Off State	Mounting Type	Package / Case	Current - Peak Pulse (8/20µs)	Current - Hold (Ih)	Number of Elements	Voltage - On State	Supplier Device Package	Capacitance	Voltage - Breakover	Package / Case	Qualification	Grade

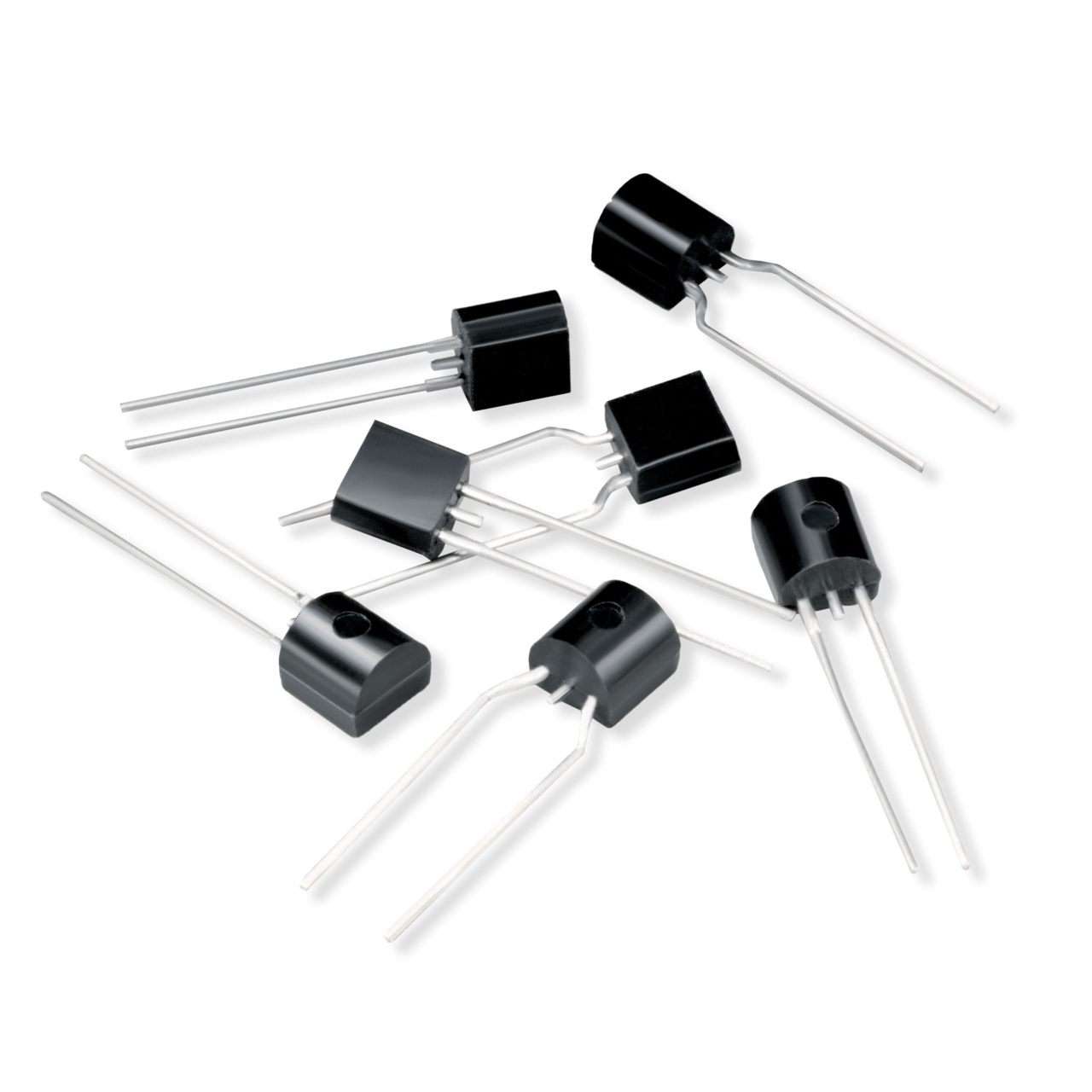

Littelfuse/Commercial Vehicle Products P3500ECLAP	100 A	320 V	Through Hole	TO-226-2 TO-92-2	400 A	150 mA	1	4 V	TO-92-2	65 pF	400 V
Littelfuse/Commercial Vehicle Products P3500ECAP	100 A	320 V	Through Hole	TO-226-2 TO-92-2	400 A	150 mA	1	4 V	TO-92-2	65 pF	400 V
Littelfuse/Commercial Vehicle Products P3500SCMCLRP	100 A	320 V	Surface Mount	DO-214AA SMB	400 A	150 mA	1	5 V	DO-214AA	40 pF	400 V
Littelfuse/Commercial Vehicle Products P3500SDLRP	200 A	320 V	Surface Mount	DO-214AA SMB		50 mA	1	4 V	DO-214AA	65 pF	400 V
Littelfuse/Commercial Vehicle Products P3500EALAP	45 A	320 V	Through Hole	TO-226-2 TO-92-2	150 A	150 mA	1	4 V	TO-92-2	35 pF	400 V
Littelfuse/Commercial Vehicle Products P3500EC	100 A	320 V	Through Hole	TO-226-2 TO-92-2	400 A	150 mA	1	4 V	TO-92-3	65 pF	400 V	TO-226AC
Littelfuse/Commercial Vehicle Products P3500ECMCLRP1	100 A	320 V	Through Hole	TO-226-2 TO-92-2	400 A	150 mA	1	4 V	TO-92-3	40 pF	400 V	TO-226AC
Littelfuse/Commercial Vehicle Products P3500ECLRP2	100 A	320 V	Through Hole	TO-226-2 TO-92-2	400 A	150 mA	1	4 V	TO-92-2	65 pF	400 V

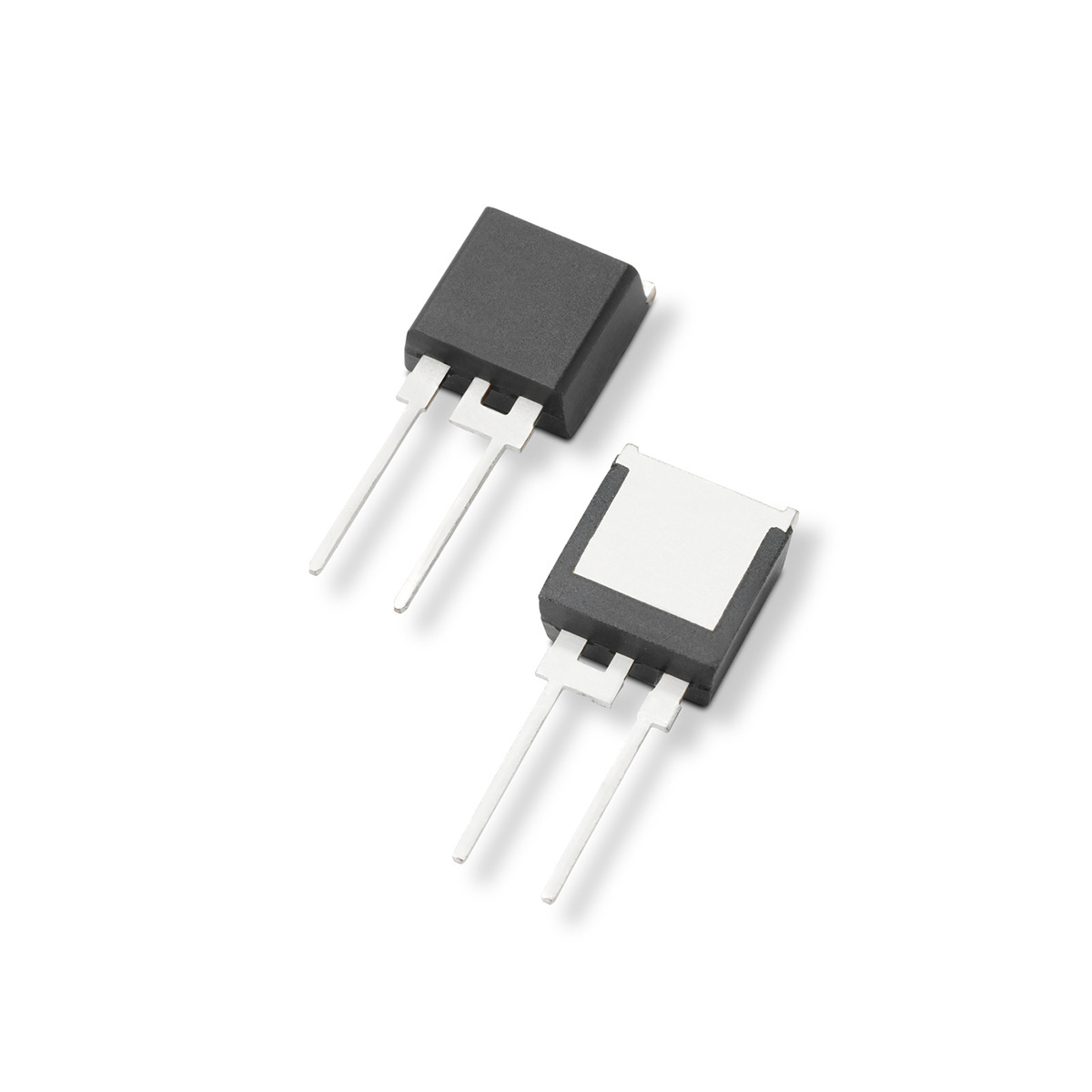

Littelfuse/Commercial Vehicle Products P3500FNLTP		320 V	Through Hole	TO-262M-2	3 kA	50 mA	1	4 V	TO-262M Isolated	450 pF	400 V		AEC-Q101	Automotive
Littelfuse/Commercial Vehicle Products P3500EB	80 A	320 V	Through Hole	TO-226-2 TO-92-2	250 A	150 mA	1	4 V	TO-92-3	40 pF	400 V	TO-226AC

Catalog

SIDACtor® Bi 320V 1000A DO214 2L RoHS

Key Features

• 3 kA (8/20μs) surge rating

• Automotive grade AEC-Q101 qualified

• AC mains protection between L -N

• Low overshoot voltage

• Low on-state voltage

• Surge capability does not degrade after multiple events within its surge ratings

• Fails short circuit if surged in excess of its surge rating

• Fast response in ns

• Lead-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)

• RoHS compliant, leadfree and halogen-free

Description

General Description Littelfuse DO-214AA SIDACtor solid state protection devices with a D surge rating protect telecommunications equipment such as modems, line cards, fax machines, and other CPE. These SIDACtor devices withstand simultaneous surges incurred in GR 1089 lightning tests. (See "First Level Lightning Surge Test" on page 4-5.) Surge ratings are twice that of a device with a C surge rating. This allows a discrete surface mount version of Littelfuse's patented "Y" configuration. (US Patent 4,905,119) SIDACtor devices are used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20, K.21 and K.45, IEC 60950, UL 60950, and TIA-968 (formerly known as FCC Part 68).Notes: All measurements are made at an ambient temperature of 25 °C. Ipp applies to -40 °C through +85 °C temperature range. Ipp is a repetitive surge rating and is guaranteed for the life of the product. Listed SIDACtor® devices are bi-directional. All electrical parameters & surge ratings apply to forward and reverse polarities. Vdrm is measured at Idrm. Vs is measured at 100 V/µs. Special voltage (Vs & Vdrm) and holding current (Ih) requirements are available upon request. Off-state capacitance is measured at 1 MHz with a 2 V bias and is a typical value.
