M2408 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

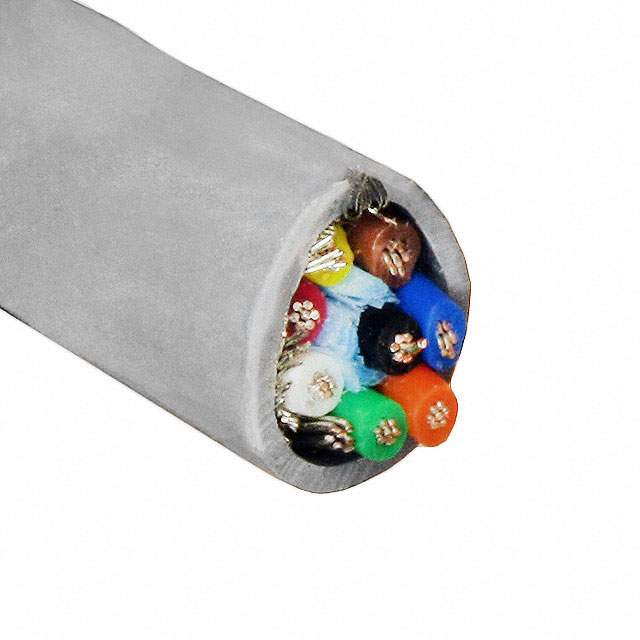

CABLE 8COND 28AWG SHLD 3000'
| Part | Shield Coverage | Shield Material | Ratings | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Shield Type | Features | Conductor Material | Wire Gauge | Number of Conductors [custom] | Conductor Insulation | Voltage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | UL Style 2464 | Multi-Conductor | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 7 | 36 AWG | Poly-Vinyl Chloride (PVC) | Braid Foil | Drain Wire Rip Cord | Copper Tinned | 28 AWG | 8 | Poly-Vinyl Chloride (PVC) | 300 VDC | 914.4 m | 3000 ' | 0.206 in | 5.23 mm | Slate | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | UL Style 2464 | Multi-Conductor | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 7 | 36 AWG | Poly-Vinyl Chloride (PVC) | Braid Foil | Drain Wire Rip Cord | Copper Tinned | 28 AWG | 8 | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.206 in | 5.23 mm | Slate | 100 ft | 30.5 m |
