T336 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG HSNG MALE 5POS INLINE

Part	Type	Note	Features	Contact Type	Connector Type	Mounting Type	Orientation	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Shape	Insert Material	Shell Material	Shell Size - Insert	Fastening Type	Ingress Protection	Material Flammability Rating	Shielding	Shell Finish	Contact Size	Voltage Rating	Primary Material	Current Rating (Amps)	Color	Contact Finish - Mating	Mounting Feature

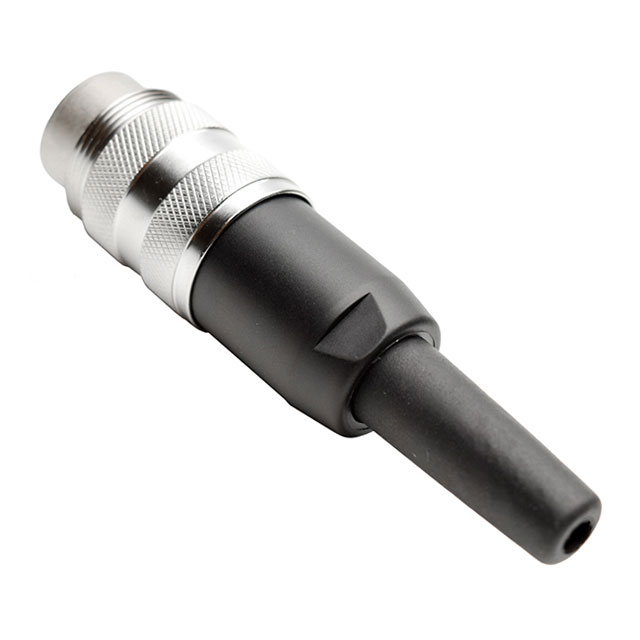

Amphenol Tuchel Industrial T3360551U	For Male Pins	Contacts Not Included	Cable Clamp Coupling Nut Strain Relief	Crimp	Plug Housing	Free Hanging (In-Line)	Keyed	5	-40 C	100 °C	Silver	Circular	Thermoplastic	Die Cast	M16-5	Threaded	IP40	UL94 V-0	Shielded	Nickel	1.5 mm

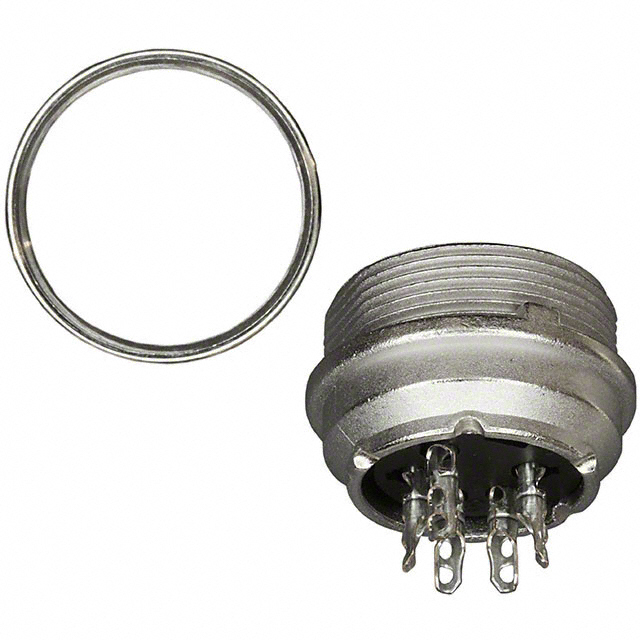

Amphenol Tuchel Industrial T3363100U					Receptacle Female Sockets	Panel Mount	Keyed	5	-40 C	100 °C				Die Cast	M16-5	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver

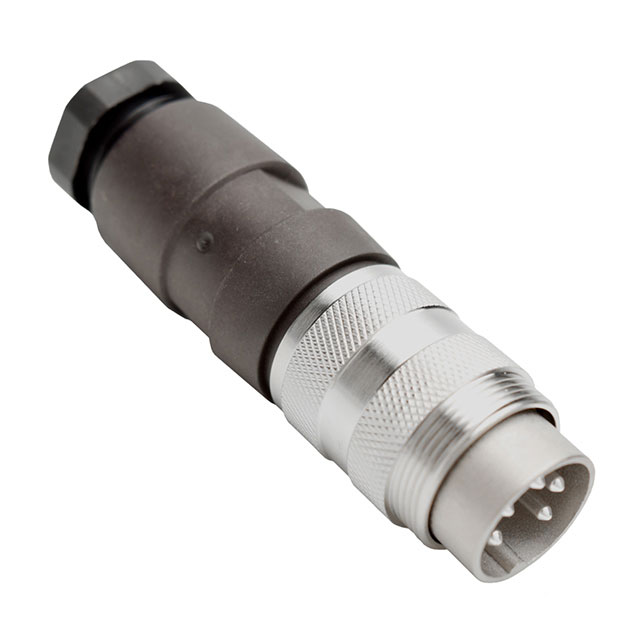

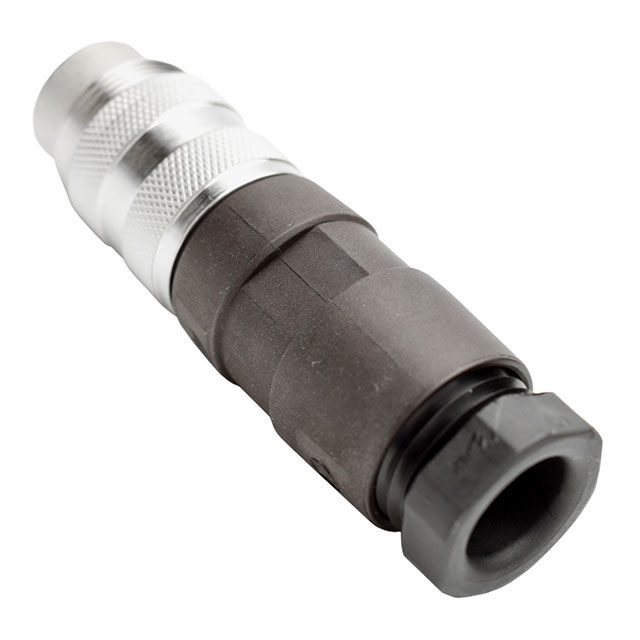

Amphenol Tuchel Industrial T3360002U			Cable Clamp Strain Relief		Plug Male Pins	Free Hanging (In-Line)	Keyed	5	-40 C	100 °C				Die Cast	M16-5	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver
Amphenol Tuchel Industrial T3362000U					Receptacle Male Pins	Panel Mount	Keyed	5	-40 C	100 °C				Die Cast	M16-5	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver

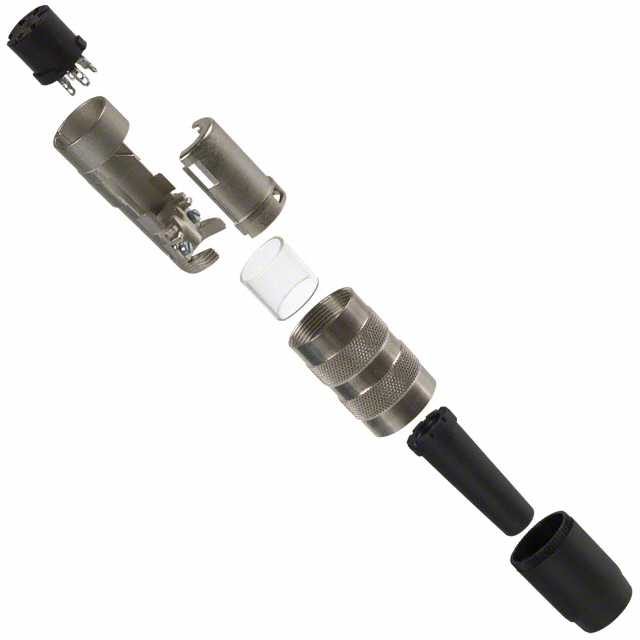

Amphenol Tuchel Industrial T3361001U			Strain Relief		Plug Female Sockets	Free Hanging (In-Line)	Keyed	5	-40 C	100 °C				Die Cast	M16-5	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver

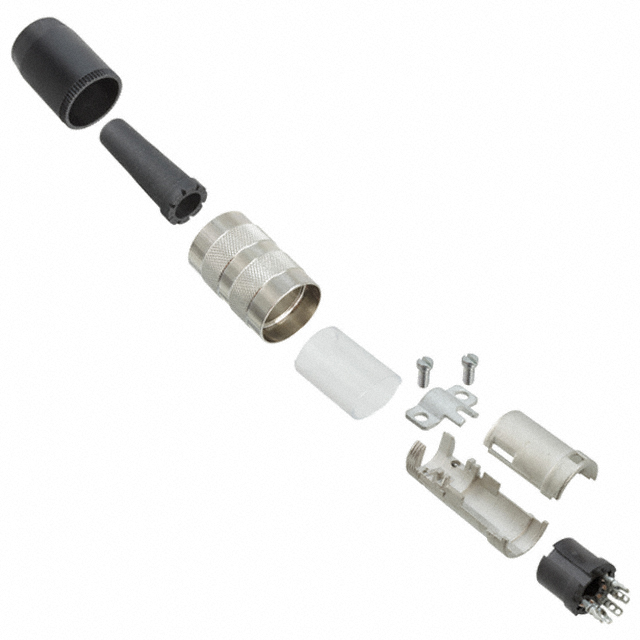

Amphenol Tuchel Industrial T3361010U			Stereo Strain Relief		Plug Female Sockets	Free Hanging (In-Line)	Keyed	5	-40 C	100 °C				Die Cast	M16-5(S)	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver

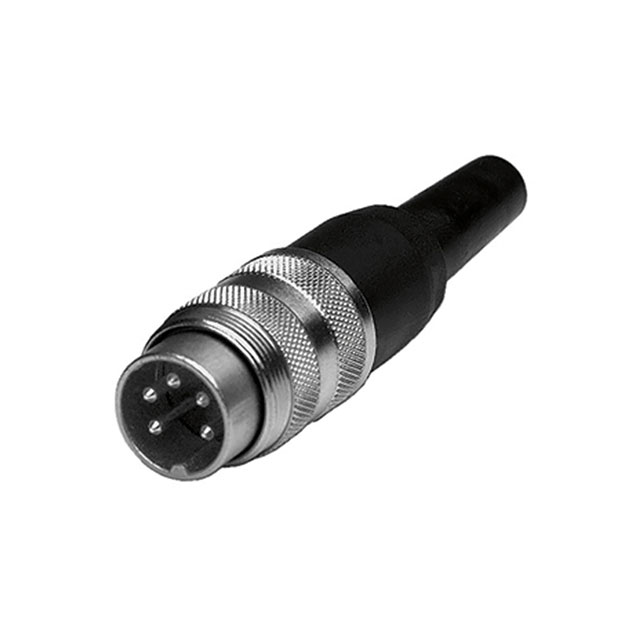

Amphenol Tuchel Industrial T3360010U			Stereo Strain Relief		Plug Male Pins	Free Hanging (In-Line)	Keyed	5	-40 C	100 °C				Die Cast	M16-5(S)	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver

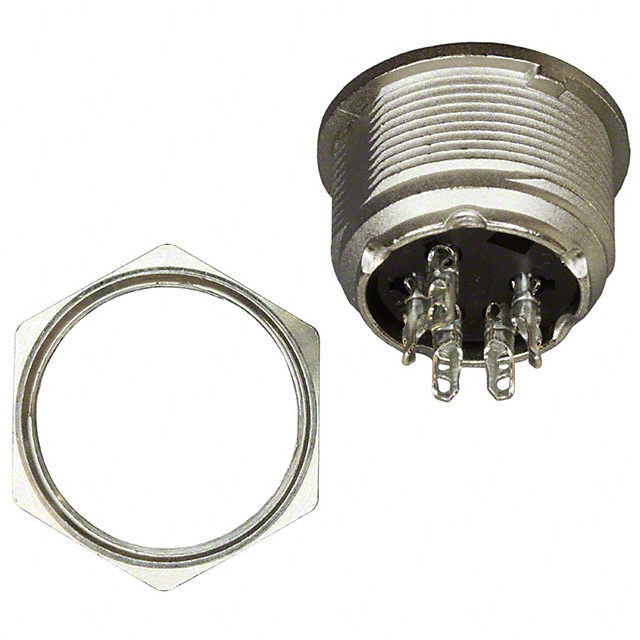

Amphenol Tuchel Industrial T3363009U					Receptacle Female Sockets	Panel Mount	Keyed	5	-40 C	100 °C				Die Cast	M16-5	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver	Bulkhead - Rear Side Nut

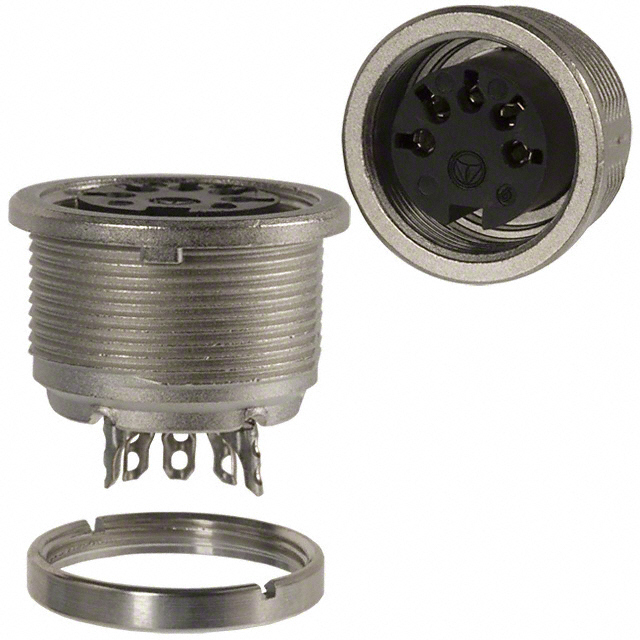

Amphenol Tuchel Industrial T3363010U			Stereo		Receptacle Female Sockets	Panel Mount	Keyed	5	-40 C	100 °C				Die Cast	M16-5(S)	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver

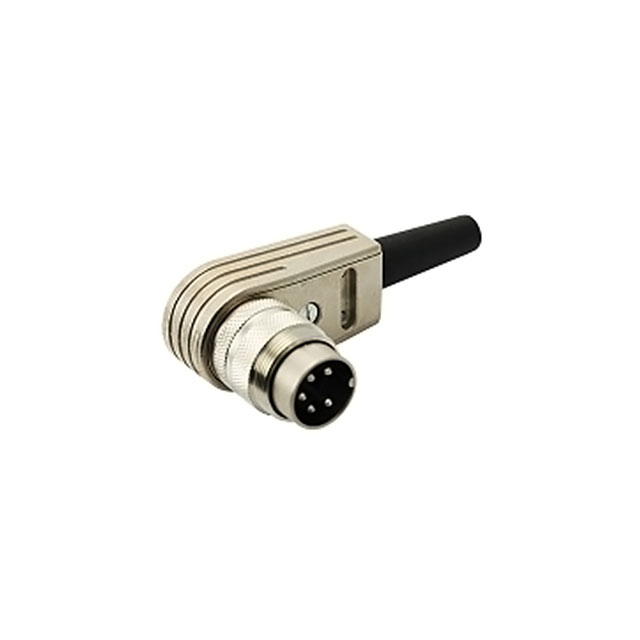

Amphenol Tuchel Industrial T3360005U			Strain Relief		Plug Male Pins	Free Hanging (In-Line) Right Angle	Keyed	5	-40 C	100 °C				Die Cast	M16-5	Threaded	IP40		Shielded	Nickel		250 V	Metal	7 A	Silver	Silver
