221391 Series

7.50mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, Bussed Terminals, 2 Circuits

Manufacturer: Molex

Catalog

7.50mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, Bussed Terminals, 2 Circuits

Part	Pitch	Pitch	Wire Termination	Voltage	Features	Color	Mounting Type	Positions Per Level	Current	Wire Gauge [Max]	Wire Gauge [Min]	Number of Levels	Mating Orientation	Mating Orientation	Positions Per Level [custom]
Molex 2213910009	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	9	40 A	24 AWG	8 AWG	1	30 °	150 °

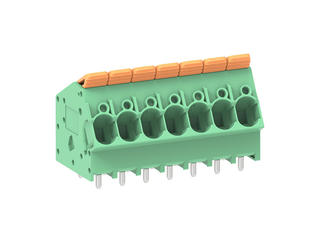

Molex 2213910007	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole		40 A	24 AWG	8 AWG	1	30 °	150 °	7

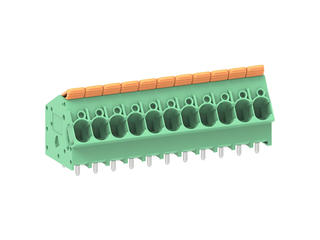

Molex 2213910011	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	11	40 A	24 AWG	8 AWG	1	30 °	150 °
Molex 2213910003	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	3	40 A	24 AWG	8 AWG	1	30 °	150 °
Molex 2213910001			Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	1	40 A	24 AWG	8 AWG	1	30 °	150 °

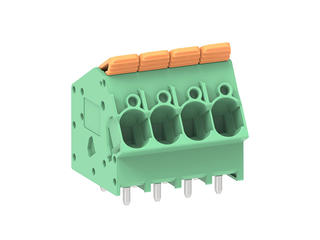

Molex 2213910004	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	4	40 A	24 AWG	8 AWG	1	30 °	150 °
Molex 2213910005	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	5	40 A	24 AWG	8 AWG	1	30 °	150 °

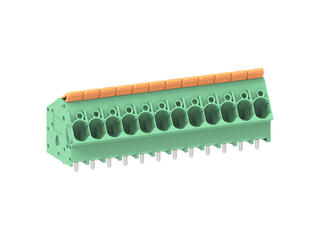

Molex 2213910012	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	12	40 A	24 AWG	8 AWG	1	30 °	150 °

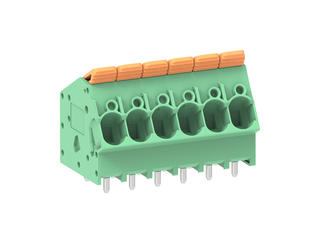

Molex 2213910006	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	6	40 A	24 AWG	8 AWG	1	30 °	150 °
Molex 2213910002	0.295 in	7.5 mm	Leg Spring Push-In Spring	1 kV	Lever Actuated	Green	Through Hole	2	40 A	24 AWG	8 AWG	1	30 °	150 °

7.50mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, Bussed Terminals, 2 Circuits
