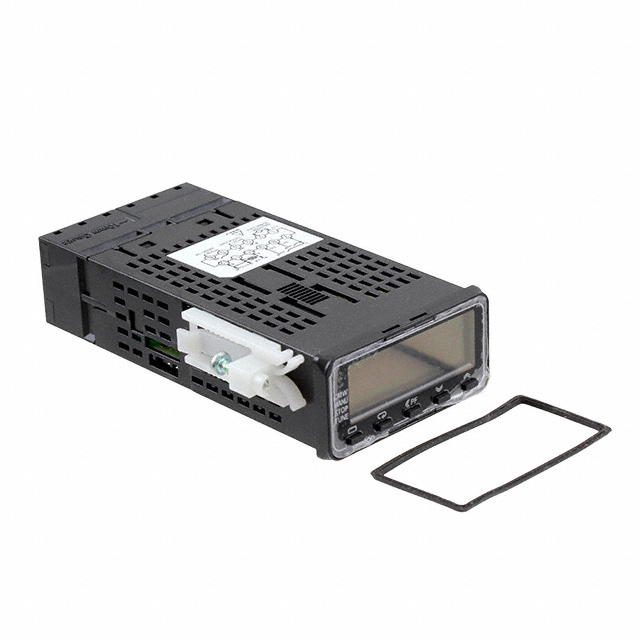

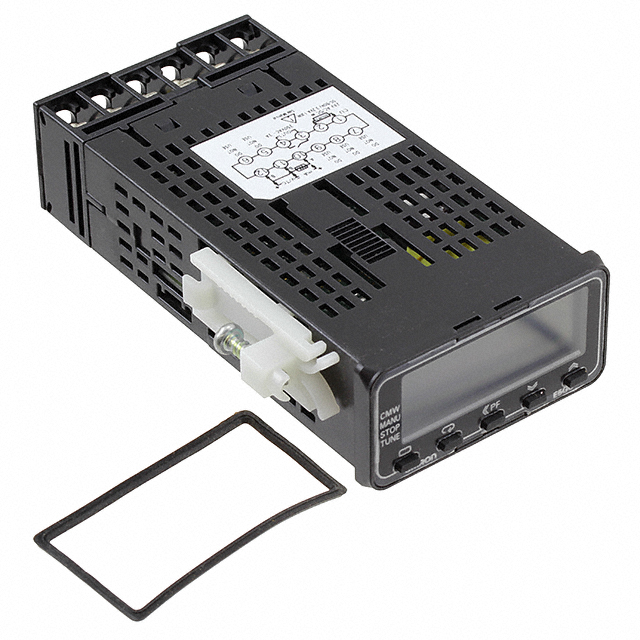

E5GC-QX Series

Manufacturer: Omron Automation and Safety

Catalog

VOLT 2AUX SCRW 2 EVNT 24VAC/DC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Type	Ingress Protection	Number of Characters Per Row	Number of Characters Per Row	Input Range [Min]	Input Range [Max]	Control Method	Termination Style	Mounting Type	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Weight [custom]	Weight [custom]	Voltage - Supply	Features	Communications
Omron Automation and Safety E5GC-QX1D6M-024
Omron Automation and Safety E5GC-QX1ACM-000	55 °C	-10 °C	45 mm	22.2 mm	Backlight LCD - Dual Color Characters	Process Temperature Controller (Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	4	4	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	On/Off Proportional (PID)	Spring Terminal	Panel Mount	Relay Voltage (External SSR)	240 VAC	100 VAC
Omron Automation and Safety E5GC-QX0ACM-000
Omron Automation and Safety E5GC-QX2D6M-023	55 °C	-10 °C	45 mm	22.2 mm	Backlight LCD - Dual Color Characters	Process Temperature Controller (Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	4	4	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	On/Off Proportional (PID)	Screw Terminal	Panel Mount	Relay (2) Voltage (External SSR)			79.83 g	0.176 lb	24 VAC	Heater Fault Detection
Omron Automation and Safety E5GC-QX2ACM-023	55 °C	-10 °C	45 mm	22.2 mm	Backlight LCD - Dual Color Characters	Process Temperature Controller (Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	4	4	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	On/Off Proportional (PID)	Spring Terminal	Panel Mount	Relay (2) Voltage (External SSR)	240 VAC	100 VAC				Heater Fault Detection
Omron Automation and Safety E5GC-QX2ACM-016
Omron Automation and Safety E5GC-QX1ACM-015	55 °C	-10 °C	45 mm	22.2 mm	Backlight LCD - Dual Color Characters	Process Temperature Controller (Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	4	4	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	On/Off Proportional (PID)	Spring Terminal	Panel Mount	Relay Voltage (External SSR)	240 VAC	100 VAC	79.83 g	0.176 lb			RS-485 (CompoWay/F Modbus)
Omron Automation and Safety E5GC-QX1DCM-024
Omron Automation and Safety E5GC-QX1D6M-015	55 °C	-10 °C	45 mm	22.2 mm	Backlight LCD - Dual Color Characters	Process Temperature Controller (Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	4	4	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	On/Off Proportional (PID)	Screw Terminal	Panel Mount	Relay Voltage (External SSR)					24 VAC		RS-485 (CompoWay/F Modbus)
Omron Automation and Safety E5GC-QX2ACM-000	55 °C	-10 °C	45 mm	22.2 mm	Backlight LCD - Dual Color Characters	Process Temperature Controller (Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	4	4	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	On/Off Proportional (PID)	Spring Terminal	Panel Mount	Relay (2) Voltage (External SSR)	240 VAC	100 VAC
