917724 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

2.5MM SDL 4P, HDR ASSY, HIGH, BLUE

Part	Mated Stacking Heights	Applications	Shrouding	Material Flammability Rating	Mounting Type	Features	Contact Finish - Post	Connector Type	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Termination	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Insulation Height	Insulation Height	Number of Rows	Voltage Rating	Contact Type	Contact Material	Style	Current Rating (Amps)	Fastening Type
TE Connectivity AMP Connectors 917724-6	19.2 mm	General Purpose	Shrouded - 4 Wall	UL94 V-0	Through Hole	Board Guide	Tin	Header	0.626 in	15.9 mm	-30 ░C	105 ░C	0.126 "	3.2 mm	Blue	4.7 mm	0.185 in	All	Kinked Pin Solder	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	4	0.602 in	15.29 mm	1	50 V	Male Pin	Copper Alloy	Board to Cable/Wire	3 A	Latch Holder

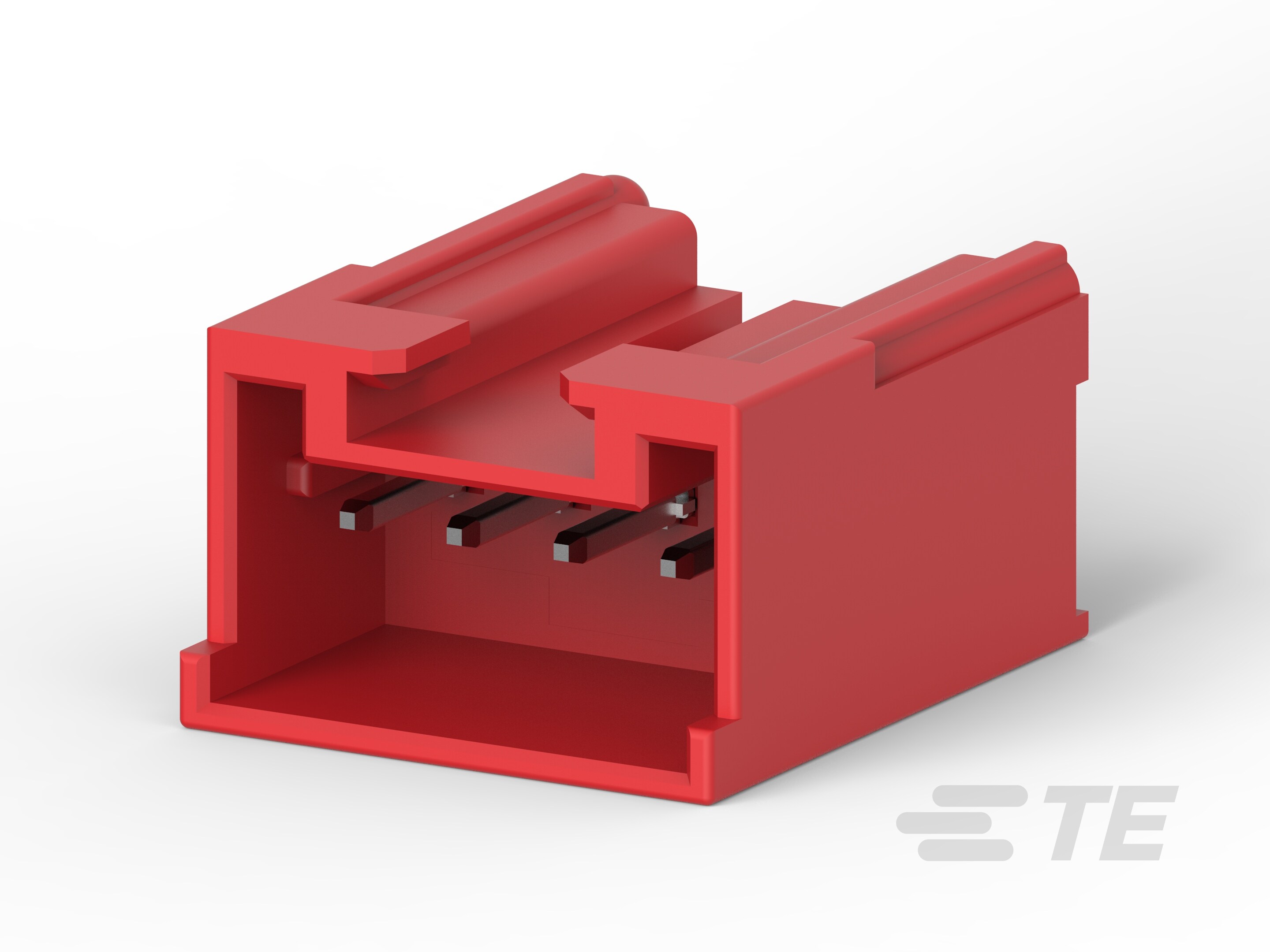

TE Connectivity AMP Connectors 917724-2	19.2 mm	General Purpose	Shrouded - 4 Wall	UL94 V-0	Through Hole	Board Guide	Tin	Header	0.626 in	15.9 mm	-30 ░C	105 ░C	0.126 "	3.2 mm	Red	4.7 mm	0.185 in	All	Kinked Pin Solder	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	4	0.602 in	15.29 mm	1	50 V	Male Pin	Copper Alloy	Board to Cable/Wire	3 A	Latch Holder

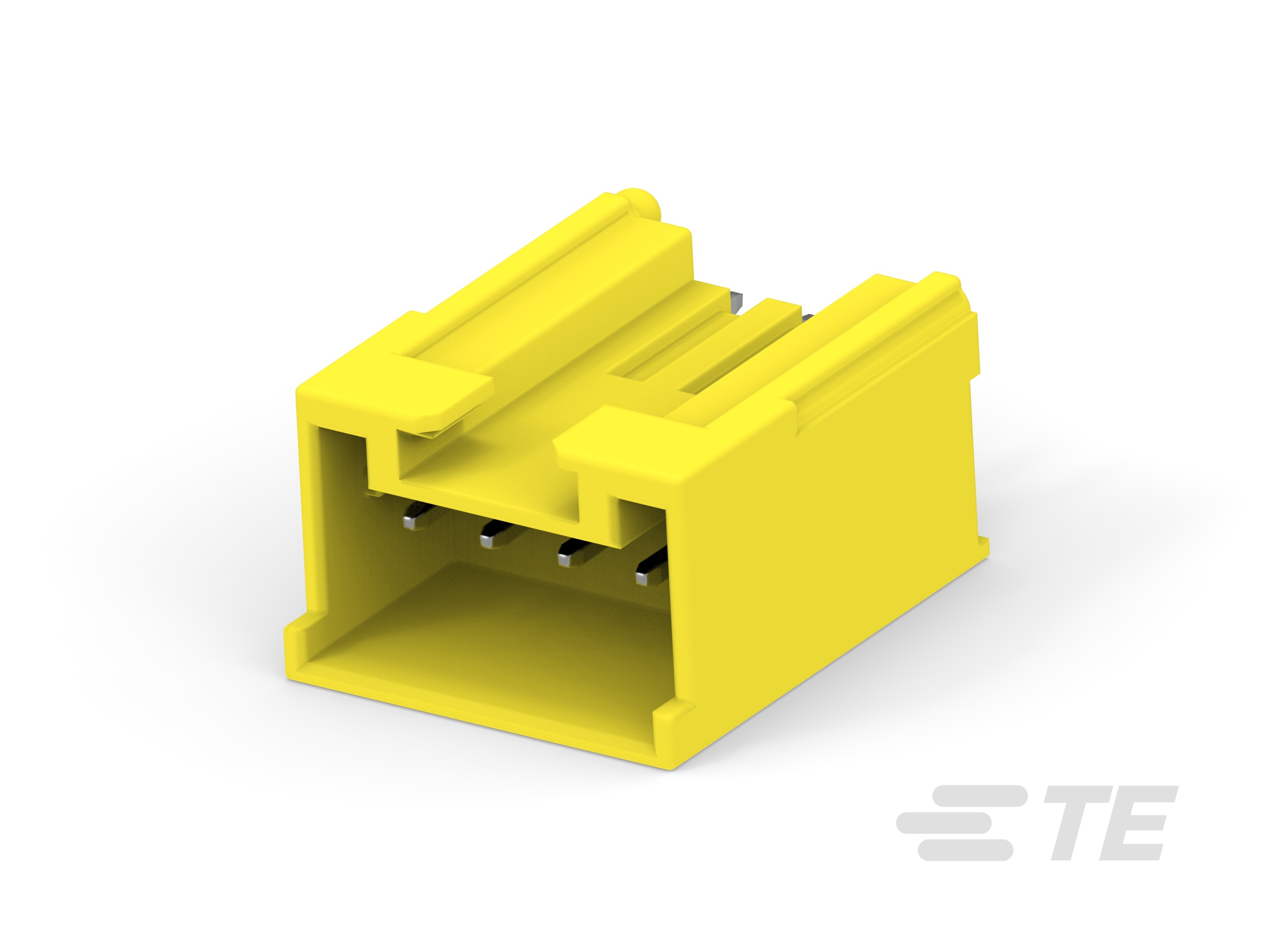

TE Connectivity AMP Connectors 917724-4	19.2 mm	General Purpose	Shrouded - 4 Wall	UL94 V-0	Through Hole	Board Guide	Tin	Header	0.626 in	15.9 mm	-30 ░C	105 ░C	0.126 "	3.2 mm	Yellow	4.7 mm	0.185 in	All	Kinked Pin Solder	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	4	0.602 in	15.29 mm	1	50 V	Male Pin	Copper Alloy	Board to Cable/Wire	3 A	Latch Holder
