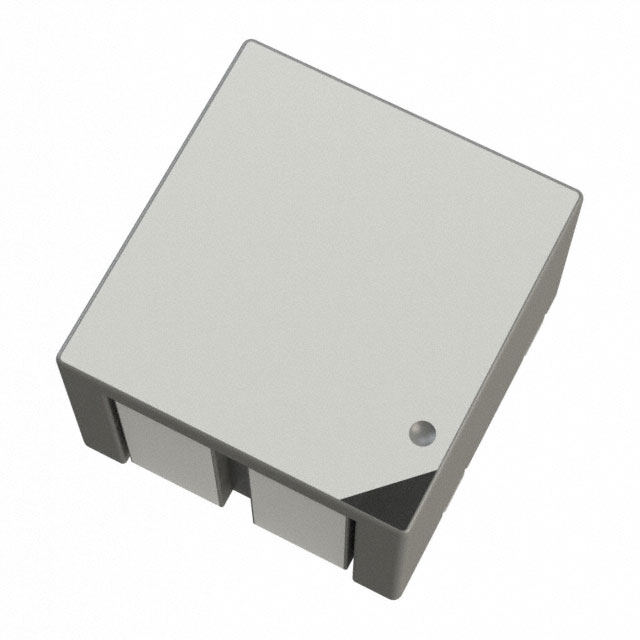

CL0904 Series
Manufacturer: Eaton - Electronics Division
Beta
⌘K
FIXED IND 50NH 80A 0.00035OHM SM
| Part | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Inductance Frequency - Test | Inductance | Current Rating (Amps) | DC Resistance (DCR) | Material - Core | Height - Seated (Max) | Height - Seated (Max) [Max] | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 3 Phase | 27.3 mm | 1.075 " | 9 mm | 0.354 in | 1 MHz | 50 nH | 80 A | 0.35 mOhm | Ferrite | 4 mm | 0.157 in | 20 % | 125 °C | -40 C | Nonstandard | Surface Mount |
