R12542 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA F STR PCB C100
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Body Material | Center Contact Plating | Mating Cycles | Frequency - Max [Max] | Connector Type | Number of Ports | Housing Color | Center Contact Material | Mounting Type | Impedance | Connector Style | Contact Termination | Shield Termination | Fastening Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

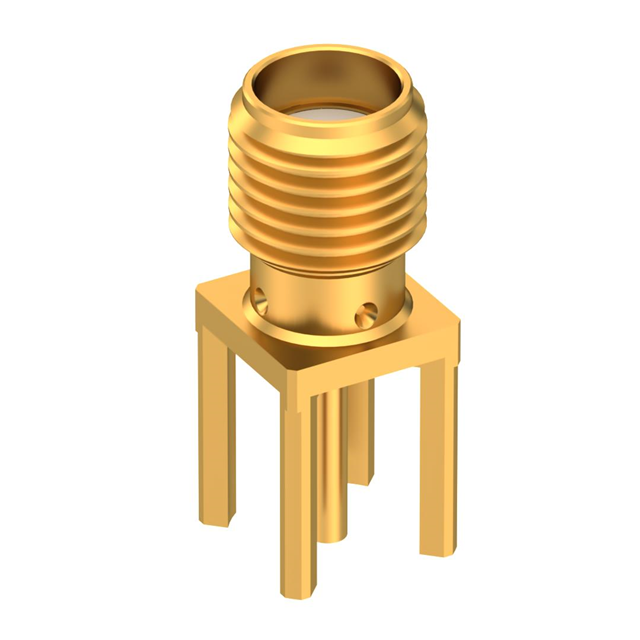

 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | 18 GHz | Female Socket Jack | 1 | Gold | Beryllium Copper | Through Hole | 50 Ohms | SMA | Solder | Solder | Threaded | |

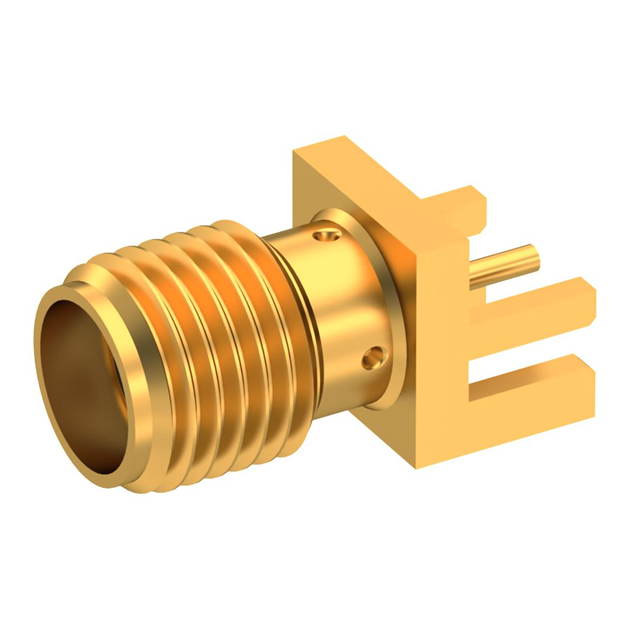

 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | 18 GHz | Female Socket Jack | 1 | Gold | Beryllium Copper | Board Edge End Launch | 50 Ohms | SMA | Solder | Solder | Threaded | 500 V |
Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | 18 GHz | Female Socket Jack | 1 | Gold | Beryllium Copper | Through Hole | 50 Ohms | SMA | Solder | Solder | Threaded | 500 V |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | 18 GHz | Female Socket Jack | 1 | Gold | Beryllium Copper | Board Edge End Launch | 50 Ohms | SMA | Solder | Solder | Threaded | 500 V |
