RJSGE488 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

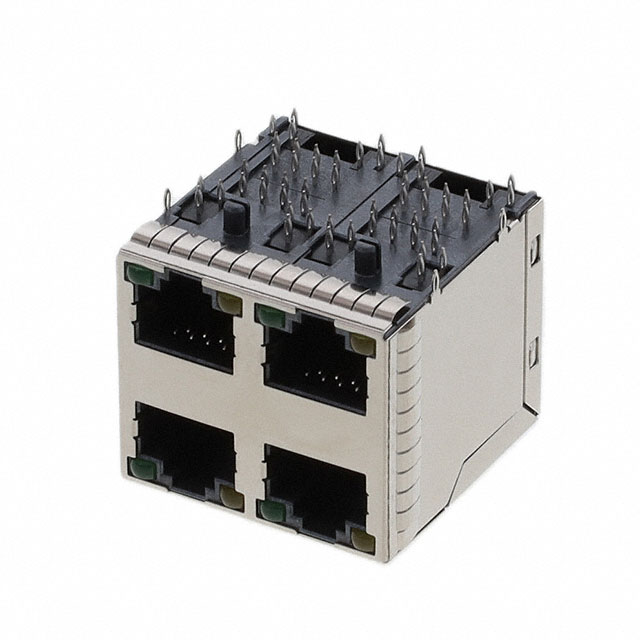

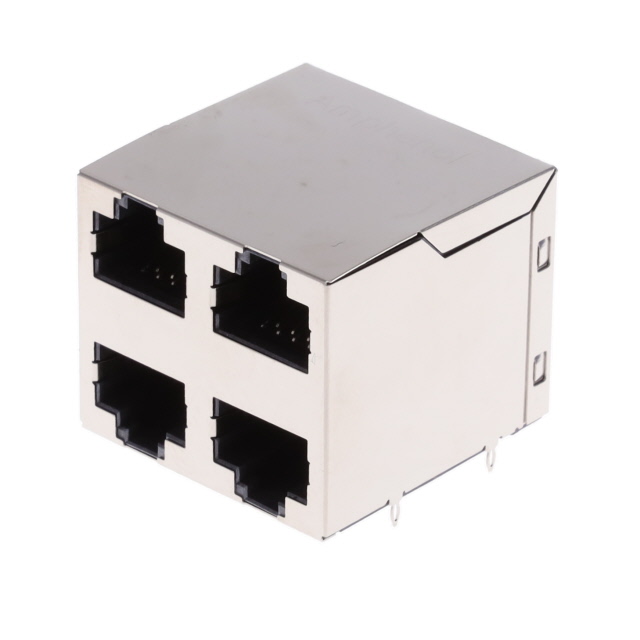

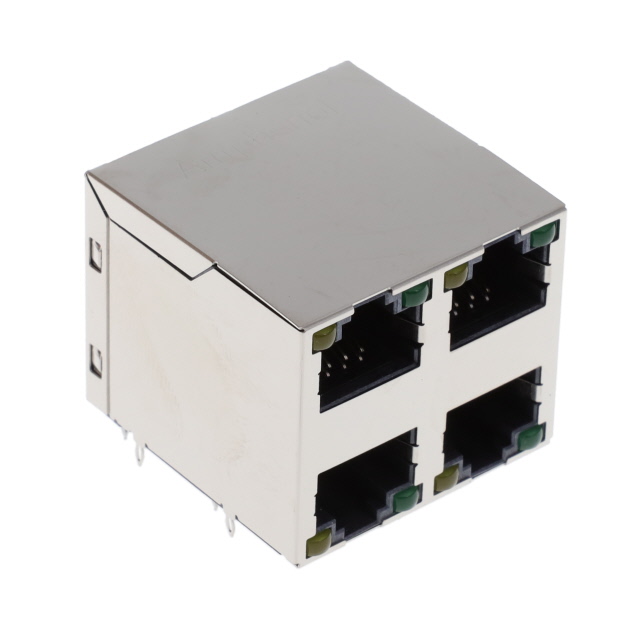

8P8C, CAT5E, PRESSFIT, 2X2 STACK
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Shielding | Number of Positions/Contacts | Tab Direction | Number of Ports | Connector Type | Contact Material | LED Color | Features | Contact Finish | Termination | Mounting Type | Ratings | Number of Rows [custom] | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Shielded | 8p8c (RJ45 Ethernet) | Up and Down | 4 | Jack | Phosphor Bronze | Does Not Contain LED | Board Lock | Gold | Press-Fit | Through Hole | Cat5e | 2 | 90 ° |
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | Up and Down | 4 | Jack | Phosphor Bronze | Yellow - Green | Board Guide | Gold | Press-Fit | Through Hole | Cat5e | 2 | 90 ° |
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Shielded | 8p8c (RJ45 Ethernet) | Up and Down | 4 | Jack | Phosphor Bronze | Yellow - Green | Board Guide | Gold | Press-Fit | Through Hole | Cat5e | 2 | 90 ° |
