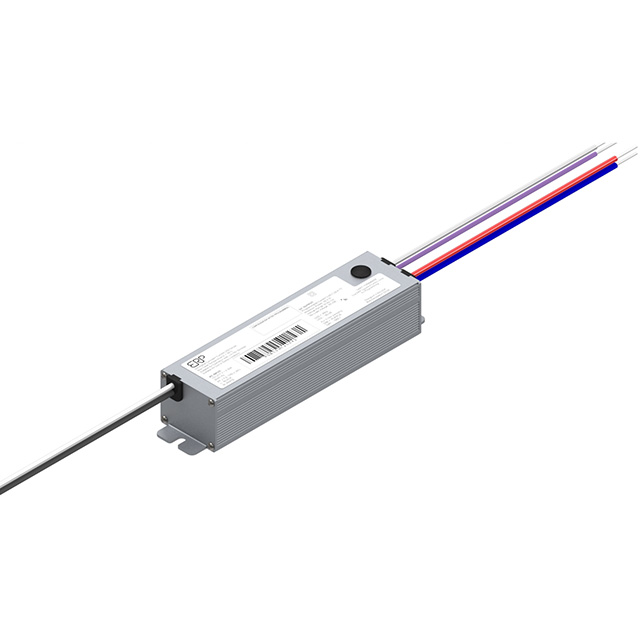

PSB30W Series

Catalog

LED DRIVER

Part	Mounting Type	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Features	Ratings	Dimming	Current - Output (Max) [Max]	Topology	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Approval Agency	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Type
ERP Power, LLC PSB30W-1050-27	Chassis Mount	Wire Leads	27 V	18 V	OCP OTP SCP	IP20	Analog ELV TRIAC	1.05 A	AC DC Converter	1.02 in	23.7 mm	26 mm	0.93 "	3.93 in	99.8 mm	28 W	CB CE cULus	1	277 VAC	120 VAC	90 %	Constant Current
ERP Power, LLC PSB30W-0700-42	Chassis Mount	Wire Leads	42 V	28 V	OCP OTP SCP	IP20	Analog ELV TRIAC	700 mA	AC DC Converter	1.02 in	23.7 mm	26 mm	0.93 "	3.93 in	99.8 mm	29 W	CB CE cULus	1	277 VAC	120 VAC	90 %	Constant Current
