702R Series
Manufacturer: ALPHA WIRE
Beta
⌘K

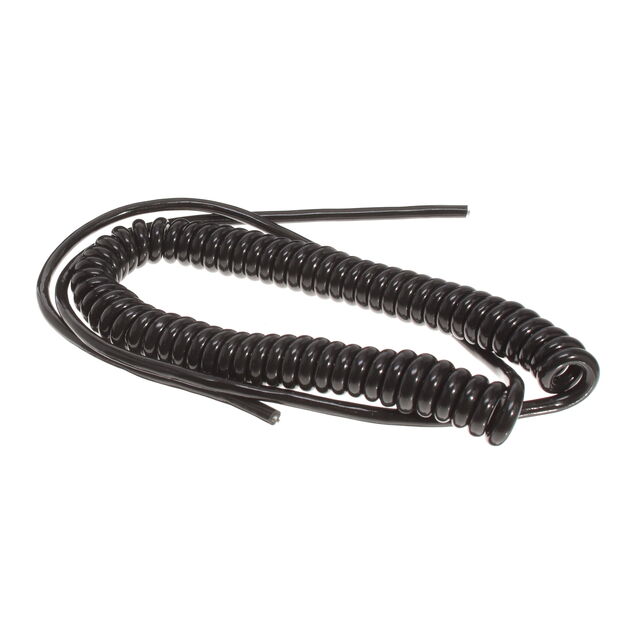

MULTICONDUCTOR CABLE, RETRACTILE COILED, UNSHIELDED, 2 CONDUCTOR, 23 AWG, 0.27 MM², 1 FT, 0.3 M
| Part | Conductor Material | Voltage | Current | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket Color | Length - Coil Extended [x] | Length - Coil Extended [x] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Length - Coil Retracted [x] | Length - Coil Retracted | Cable Type | Coil Diameter [diameter] | Coil Diameter [diameter] | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 300 VDC | 1 A | 80 °C | -20 ░C | 23 AWG | Black | 1.52 m | 5 ft | Poly-Vinyl Chloride (PVC) | 21 | 36 AWG | 1 ft | 0.3 m | Coil | 0.688 in | 17.48 mm | 2 |
