0316-0 Series

Catalog

CONN PIN RCPT .032-.046 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Contact Finish

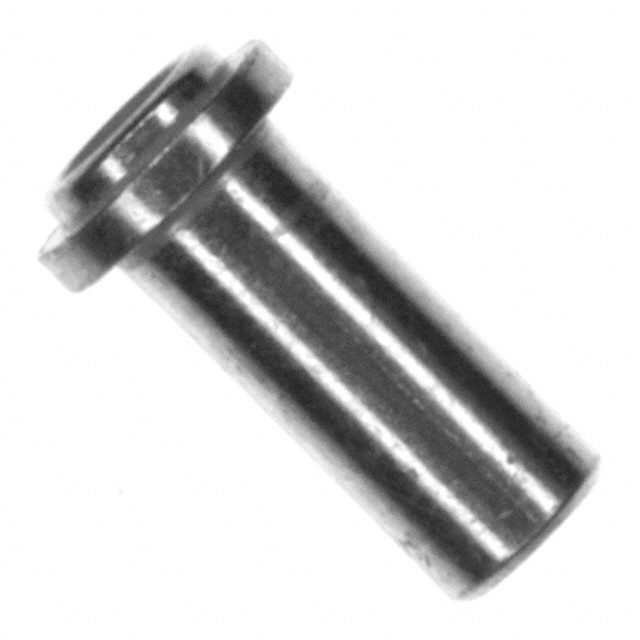

Mill-Max Manufacturing Corp. 0316-0-15-01-34-27-10-0	-55 C	125 °C	0.236 in	6 mm	Beryllium Copper	0.126 in	3.2 mm	30 Áin	0.76 Ám	1.63 mm	0.064 in	No Tail	0.087 in	2.21 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	Gold

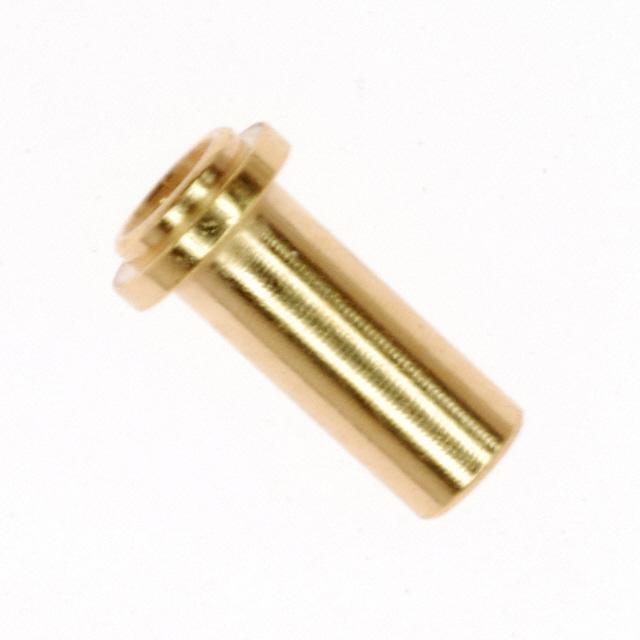

Mill-Max Manufacturing Corp. 0316-0-15-15-34-27-10-0	-55 C	125 °C	0.236 in	6 mm	Beryllium Copper	0.126 in	3.2 mm	30 Áin	0.76 Ám	1.63 mm	0.064 in	No Tail	0.087 in	2.21 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	Gold
Mill-Max Manufacturing Corp. 0316-0-15-15-34-14-10-0	-55 C	125 °C	0.236 in	6 mm	Beryllium Copper	0.126 in	3.2 mm	10 Áin	0.25 Ám	1.63 mm	0.064 in	No Tail	0.087 in	2.21 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	Gold
