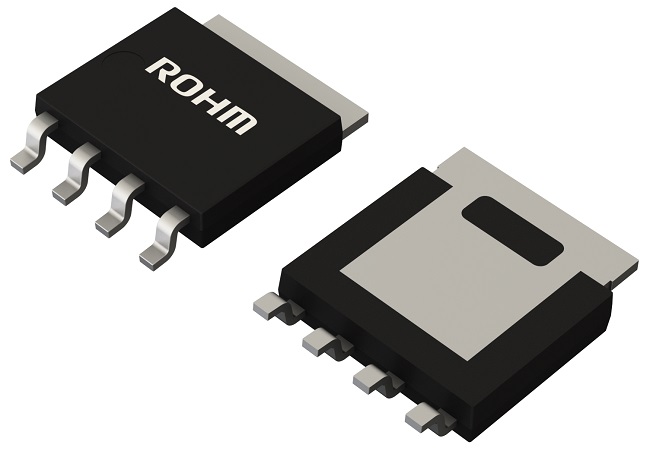

Nch 100V 58A, HPLF5060T5LSAH, Power MOSFET for Automotive
Nch 100V 58A, HPLF5060T5LSAH, Power MOSFET for Automotive
Nch 100V 58A, HPLF5060T5LSAH, Power MOSFET for Automotive
| Part | Mounting Type | Vgs (Max) | Drain to Source Voltage (Vdss) | Grade | Gate Charge (Qg) (Max) @ Vgs [Max] | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Rds On (Max) @ Id, Vgs | Drive Voltage (Max Rds On, Min Rds On) | Technology | Power Dissipation (Max) | Package / Case | Supplier Device Package | Qualification | Current - Continuous Drain (Id) @ 25°C | Input Capacitance (Ciss) (Max) @ Vds [Max] | Vgs(th) (Max) @ Id |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | Surface Mount | 20 V | 100 V | Automotive | 13.8 nC | 175 °C | -55 °C | N-Channel | 22 mOhm | 4.5 V 10 V | MOSFET (Metal Oxide) | 75 W | SC-100 SOT-669 | HPLF5060T5LSAH | AEC-Q101 | 58 A | 690 pF | 2.5 V |
