1410187 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

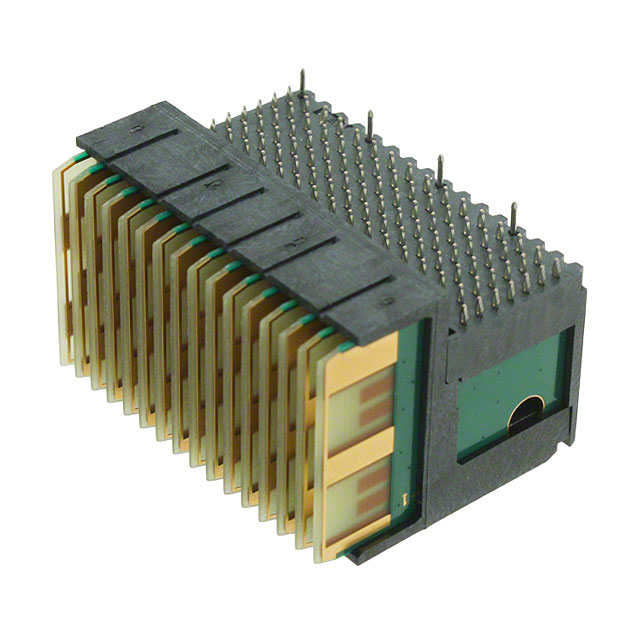

CONN PLUG VITA46 112POS EDGE MNT
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Columns | Number of Rows [custom] | Mounting Type | Connector Usage | Pitch | Pitch | Termination | Color | Connector Style | Number of Positions | Number of Positions Loaded | Connector Type | Contact Finish | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50 V | -55 C | 105 ░C | UL94 V-0 | 16 | 7 | Board Edge Right Angle Through Hole | Daughtercard | 1.8 mm | 0.071 in | Press-Fit | Black | VITA 46 Center | 112 | All | Plug Male Blades | Gold | 40 | 32 | 8 | 30 Áin | 0.76 Ám | Board Guide |
