7054 Series

Catalog

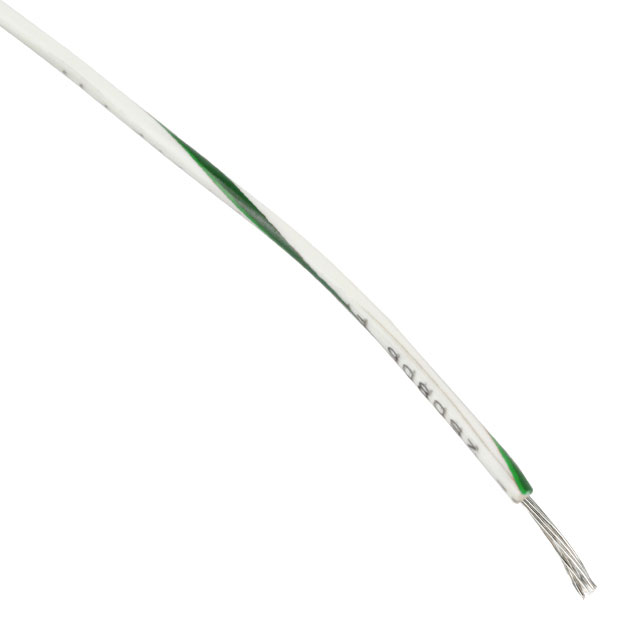

HOOKUP STRND 24AWG WHT/GRN 1000'

Part	Wire Gauge	Jacket (Insulation) Material	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Qualification	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Cable Type	Length [x]	Length [x]	Jacket Color
ALPHA WIRE 7054 WG001	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in	1000 ft	304.8 m	MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up
ALPHA WIRE 7054 YL005	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in			MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up	30.5 m	100 ft	Yellow
ALPHA WIRE 7054 BK001	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in	1000 ft	304.8 m	MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up			Black
ALPHA WIRE 7054 VI001	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in	1000 ft	304.8 m	MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up			Violet
ALPHA WIRE 7054 BL001	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in	1000 ft	304.8 m	MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up			Blue
ALPHA WIRE 7054 GR005	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in			MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up	30.5 m	100 ft	Green
ALPHA WIRE 7054 OR005	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in			MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up	30.5 m	100 ft	Orange
ALPHA WIRE 7054 RD001	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in	1000 ft	304.8 m	MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up			Red
ALPHA WIRE 7054 OR001	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in	1000 ft	304.8 m	MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up			Orange
ALPHA WIRE 7054 VI005	24 AWG	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1429	0.25 mm	0.01 in			MIL-W-16878E Type B	32 AWG	7	1.12 mm	0.044 in	Copper Tinned	105 ░C	-55 °C	150 V	Hook-Up	30.5 m	100 ft	Violet
