M031 Series

Manufacturer: Nuvoton Technology Corporation

Catalog

M0-64K AP+8KRAM+4XDAC+MANCHESTER

Part	Program Memory Size	Program Memory Width	Program Memory Depth	Core Size (Bit Width)	Program Memory Type	Oscillator Type	Core Processor	Number of I/O	Mounting Type	RAM Size Width	RAM Size Depth	Package / Case	Connectivity	Peripherals	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Converter Architecture	A/D Channels	D/A Resolution (bits)	A/D Resolution (bits)	D/A Channels	Speed	Package Name	Package Width	Package Length	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)
Nuvoton Technology Corporation M031GTC2AE	32 KB	8 bit	32 K	32 Bit	FLASH	Internal	ARM® Cortex®-M0	28	Surface Mount	8 bit	8 K	32-WFQFN Exposed Pad	I2C SMBus SPI UART USART	Brown-out Detect I2S POR PWM Reset WDT	105 °C	-40 °C	3.6 V	1.8 V	SAR	16 count	12 bit	12 bit	4 count	72 MHz	33-QFN	4 mm	4 mm
Nuvoton Technology Corporation M031TC1AE	32 KB	8 bit	32 K	32 Bit	FLASH	Internal	ARM® Cortex®-M0	27	Surface Mount	8 bit	4 K	32-WFQFN Exposed Pad	EBI EMI I2C I2S SPI UART USART	Brown-out Detect I2S LVD POR PWM Reset WDT	105 °C	-40 °C	3.6 V	1.8 V	SAR	10 count		12 bit		48 MHz	33-QFN	4 mm	4 mm
Nuvoton Technology Corporation M031SD2AE	64 KB	8 bit	64 K	32 Bit	FLASH	Internal	ARM® Cortex®-M0	55	Surface Mount	8 bit	8 K	64-LQFP	EBI EMI I2C I2S SPI UART USART	Brown-out Detect I2S LVD POR PWM Reset WDT	105 °C	-40 °C	3.6 V	1.8 V	SAR	16 count		12 bit		48 MHz	64-LQFP	7 mm	7 mm
Nuvoton Technology Corporation M031TB0AE	16 KB	8 bit	16 K	32 Bit	FLASH	Internal	ARM® Cortex®-M0	27	Surface Mount	8 bit	2 K	32-WFQFN Exposed Pad	EBI EMI I2C I2S SPI UART USART	Brown-out Detect LVD POR PWM Reset WDT	105 °C	-40 °C	3.6 V	1.8 V	SAR	10 count		12 bit		48 MHz	33-QFN	4 mm	4 mm
Nuvoton Technology Corporation M031GTD2AE	64 KB	8 bit	64 K	32 Bit	FLASH	Internal	ARM® Cortex®-M0	28	Surface Mount	8 bit	8 K	32-WFQFN Exposed Pad	I2C SMBus SPI UART USART	Brown-out Detect I2S POR PWM Reset WDT	105 °C	-40 °C	3.6 V	1.8 V	SAR	16 count	12 bit	12 bit	4 count	72 MHz	33-QFN	4 mm	4 mm
Nuvoton Technology Corporation M031SIAAE	512 KB	8 bit	512 K	32 Bit	FLASH	Internal	ARM® Cortex®-M0	51	Surface Mount	8 bit	96 K	64-LQFP	EBI EMI I2C I2S SPI UART USART USB	Brown-out Detect I2S LVD POR PWM Reset WDT	105 °C	-40 °C	3.6 V	1.8 V	SAR	16 count		12 bit		48 MHz	64-LQFP	7 mm	7 mm

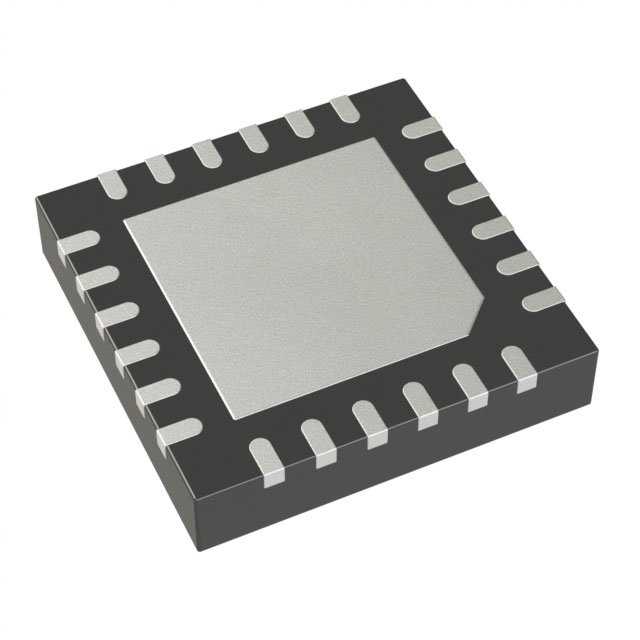

Nuvoton Technology Corporation M031GGC2AE	32 KB	8 bit	32 K	32 Bit	FLASH	Internal	ARM® Cortex®-M0	19	Surface Mount	8 bit	8 K	24-VFQFN	I2C SMBus SPI UART USART	Brown-out Detect I2S POR PWM Reset WDT	105 °C	-40 °C	3.6 V	1.8 V	SAR	11 count	12 bit	12 bit	4 count	72 MHz	24-QFN	3 mm	3 mm

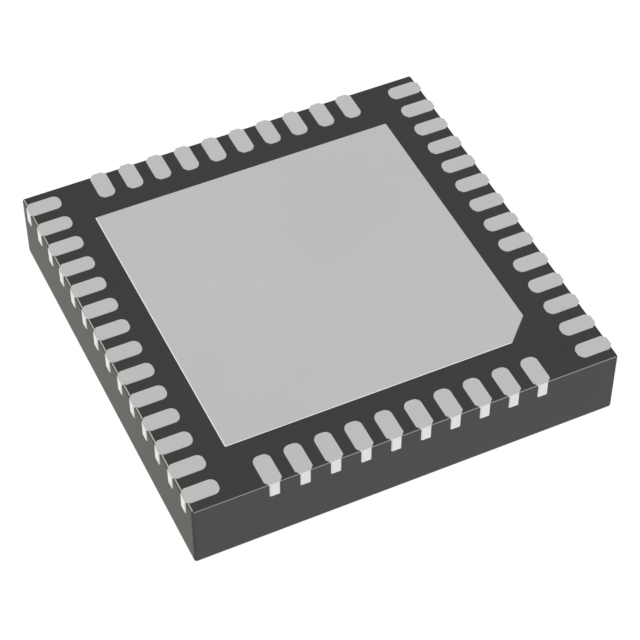

Nuvoton Technology Corporation M031BTYD2AN	64 KB	8 bit	64 K	32 Bit	FLASH	External Internal	ARM® Cortex®-M0	29	Surface Mount	8 bit	8 K	48-VFQFN Exposed Pad	FIFO I2C IrDA SCI SPI UART USART	Brown-out Detect DMA LVR POR PWM Reset WDT	85 °C	-40 °C	3.6 V	1.8 V	SAR	16 count		12 bit		48 MHz	48-QFN	5 mm	5 mm
Nuvoton Technology Corporation M031LE3AE				32 Bit	FLASH	Internal	ARM® Cortex®-M0	42	Surface Mount	8 bit	16 K	48-LQFP	EBI EMI I2C I2S SPI UART USART	Brown-out Detect LVD POR PWM Reset WDT	105 °C	-40 °C	3.6 V	1.8 V	SAR	12 count		12 bit		48 MHz	48-LQFP	7 mm	7 mm	128 K	128KB	8
Nuvoton Technology Corporation M031BTYE3AN				32 Bit	FLASH	External Internal	ARM® Cortex®-M0	29	Surface Mount	8 bit	16 K	48-VFQFN Exposed Pad	FIFO I2C IrDA SCI SPI UART USART	Brown-out Detect DMA LVR POR PWM Reset WDT	85 °C	-40 °C	3.6 V	1.8 V	SAR	16 count		12 bit		48 MHz	48-QFN	5 mm	5 mm	128 K	128KB	8
