179059 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

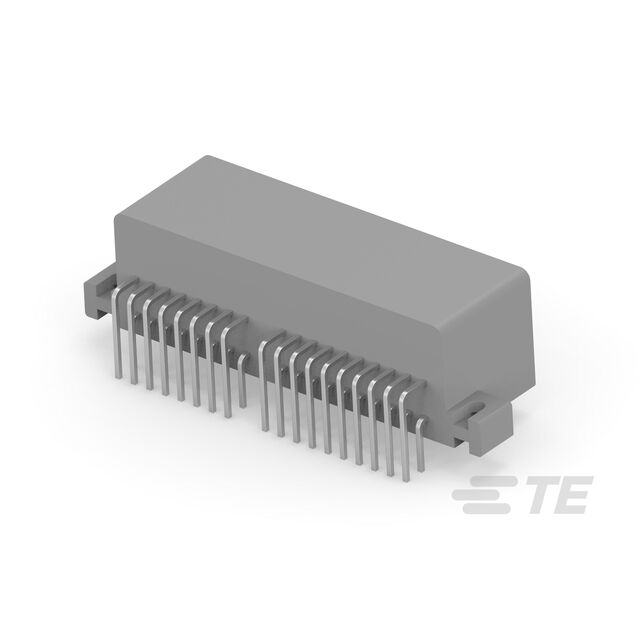

CONN HEADER R/A 36POS 2.5MM
| Part | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination | Insulation Height | Insulation Height | Insulation Color | Shrouding | Applications | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Features | Style | Row Spacing - Mating [x] | Row Spacing - Mating | Number of Positions Loaded | Contact Finish - Post | Mounting Type | Insulation Material | Contact Type | Contact Shape | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Latch Holder | -40 °C | 120 °C | Brass | Solder | 16.9 mm | 0.665 in | Gray | Shrouded - 4 Wall | Automotive General Purpose | 7 mm | 0.276 in | 2.5 mm | 0.098 in | Varies by Wire Gauge | Mounting Flange | Board to Cable/Wire | 0.205 in | 5.2 mm | All | Tin | Through Hole Right Angle | Polybutylene Terephthalate (PBT) | Tab | Rectangular | 2 | 36 |
