2204798 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

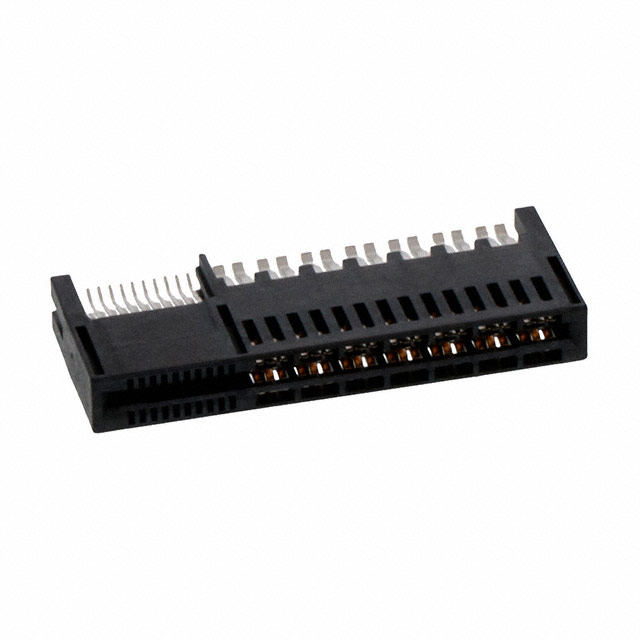

CARD EDGE CONN, DUAL SIDE, 14PWR+20SIG
| Part | Number of Positions [custom] | Number of Positions [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Read Out | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Card Thickness | Card Thickness | Mounting Type | Card Type | Gender | Number of Rows | Contact Material | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 14 | 20 | Solder | -55 °C | 125 °C | 7 | 10 | Dual | Cantilever | 0.76 Ám | 30 Áin | Gold | 0.062 in | 1.57 mm | Board Edge Straddle Mount | Non Specified - Dual Edge | Female | 2 | Copper Alloy | Thermoplastic Glass Filled |
