R12826 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

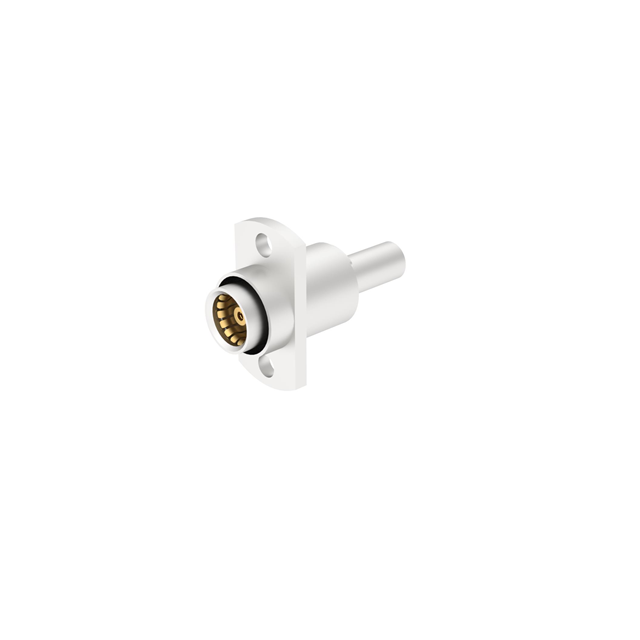

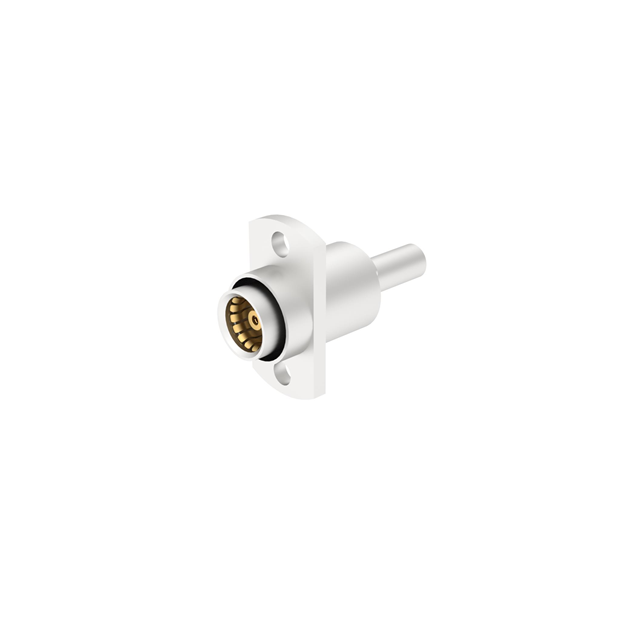

BMA / STRAIGHT 2 HOLE FLANGE FLO
| Part | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Dielectric Material | Body Material | Center Contact Material | Voltage Rating | Mounting Feature | Connector Type | Shield Termination | Fastening Type | Frequency - Max [Max] | Mounting Type | Impedance | Connector Style | Cable Group | Contact Termination | Number of Ports | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | -55 C | 125 °C | 1000 | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper Brass | 335 V | Flange | Female Socket Jack | Crimp | Snap-On | 12.4 GHz | Panel Mount | 50 Ohms | BMA | 316 RG-188 | Crimp | 1 | Silver |
 Radiall USA, Inc. | Gold | -55 C | 165 °C | 1000 | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper Brass | 350 VDC | Flange | Female Socket Jack | Crimp | Snap-On | 12.4 GHz | Panel Mount | 50 Ohms | BMA | RG-316 Double Braid | Crimp | 1 | Silver |
 Radiall USA, Inc. | Gold | -55 C | 165 °C | 1000 | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper Brass | 350 VDC | Flange | Female Socket Jack | Crimp | Snap-On | 12.4 GHz | Panel Mount | 50 Ohms | BMA | RG-316 Double Braid | Crimp | 1 | Silver |
Radiall USA, Inc. | Gold | -55 C | 125 °C | 1000 | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper Brass | 335 V | Flange | Female Socket Jack | Crimp | Snap-On | 12.4 GHz | Panel Mount | 50 Ohms | BMA | 316 RG-188 | Crimp | 1 | Silver |
Radiall USA, Inc. | Gold | -65 ░C | 155 C | 1000 | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper Brass | 335 V | Flange | Female Socket Jack | Crimp | Snap-On | 12.4 GHz | Panel Mount | 50 Ohms | BMA | 223 400 RG-142 | Crimp | 1 | Silver |
