SIT5146 Series

Manufacturer: SiTime

Catalog

MEMS OSC TCXO 55.700000 MHZ LVCM

Part	Frequency Stability	Frequency	Base Resonator	Package / Case	Voltage - Supply	Absolute Pull Range (APR)	Supplier Device Package	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Current - Supply (Max) [Max]	Output	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply (Disable) (Max) [Max]	Function
SiTime SIT5146AE-FA-33VTB55.700000	1 ppm	55.7 MHz	MEMS	10-SMD No Lead	3.3 V	2.25 ppm	10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	VCTCXO	57 mA	LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-40 C	105 ░C
SiTime SIT5146AI-FK-33N0A12.288000	500 ppb	12.288 MHz	MEMS	10-SMD No Lead	3.3 V		10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	TCXO		LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-40 C	85 °C
SiTime SIT5146AC-FK-33E0A50.000000	500 ppb	50 MHz	MEMS	10-SMD No Lead	3.3 V		10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	TCXO		LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-20 ░C	70 °C	51 mA	Enable/Disable
SiTime SIT5146AC-FA-33E0A7.372800	1 ppm	7.3728 MHz	MEMS	10-SMD No Lead	3.3 V		10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	TCXO		LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-20 ░C	70 °C	51 mA	Enable/Disable

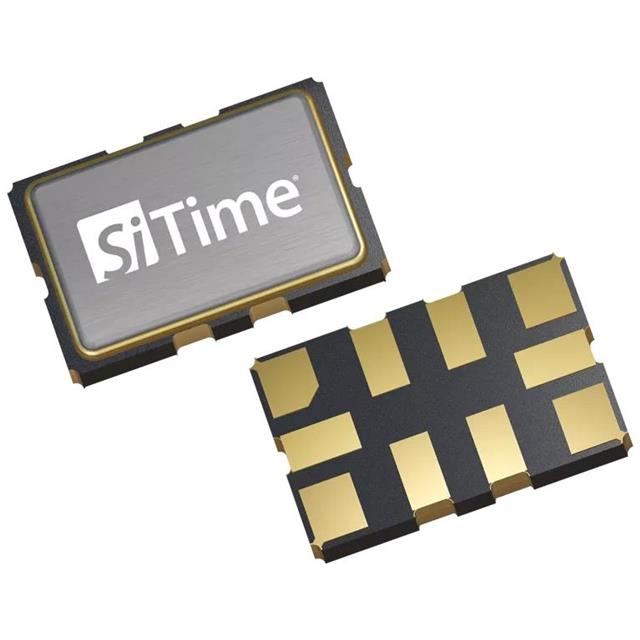

SiTime SIT5146AICFK-28N0A16.368000	500 ppb	16.368 MHz	MEMS	10-SMD No Lead	2.8 V		10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	TCXO		Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	-40 C	85 °C
SiTime SIT5146AI-FK-33N0B10.000000	500 ppb	10 MHz	MEMS	10-SMD No Lead	3.3 V		10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	TCXO		LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-40 C	85 °C
SiTime SIT5146AI-FA-33VTA57.850000	1 ppm	57.85 MHz	MEMS	10-SMD No Lead	3.3 V	2.25 ppm	10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	VCTCXO	57 mA	LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-40 C	85 °C
SiTime SIT5146AI-FA-33E0A33.333300	1 ppm	33.3333 MHz	MEMS	10-SMD No Lead	3.3 V		10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	TCXO		LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-40 C	85 °C	51 mA	Enable/Disable
SiTime SIT5146AI-FK-33VTA40.000000	500 ppb	40 MHz	MEMS	10-SMD No Lead	3.3 V	2.75 ppm	10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	VCTCXO	57 mA	LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-40 C	85 °C
SiTime SIT5146AI-FA-25N0A50.000000	1 ppm	50 MHz	MEMS	10-SMD No Lead	2.5 V		10-CQFN (5x3.2)	Surface Mount	1.06 mm	0.042 in	TCXO		LVCMOS	3.2 mm	0.126 in	5 mm	0.197 in	-40 C	85 °C
