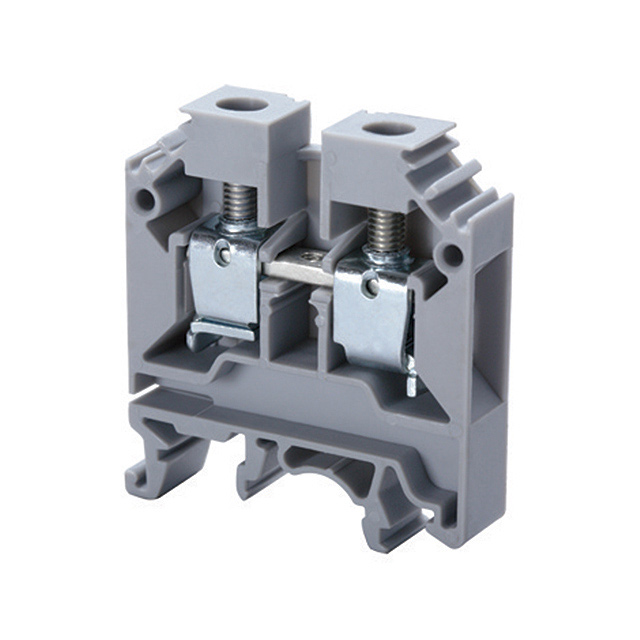

CTS10 Series
Manufacturer: Altech Corporation
Beta
⌘K
CONN TERM BLK FEED THRU 6-22AWG
| Part | Voltage - IEC | Terminal - Width [y] | Number of Positions | Color | Stripping Length | Current - UL | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Voltage - UL | Type | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Termination Style | Current - IEC | Material - Insulation | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 1 kV | 10 mm | 2 | Gray | 11 mm | 65 A | 10 mm˛ | 0.5 mm˛ | 600 V | Feed Through | 16 AWG | 6 AWG | Screw | 57 A | Polyamide (PA66) Nylon 6/6 | 1 |
