807-22 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONTACT SPRING LOADED SMD GOLD

Part	Material Flammability Rating	Contact Type	Features	Operating Force - Initial	Current Rating (Amps)	Operating Force - Mid Compression	Plunger Size [diameter]	Plunger Size [diameter]	Mating Cycles	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Recommended Working Height	Recommended Working Height	Pad Layout Dimension	Pad Layout Dimension	Mounting Type	Maximum Working Height [Max]	Maximum Working Height	Contact Material	Pad Layout Dimension	Maximum Working Height [Max]
Mill-Max Manufacturing Corp. 807-22-001-30-006101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	5.29 mm	0.208 in	0.072 in	1.83 mm	Surface Mount	0.236 in	6 mm	Copper Alloy
Mill-Max Manufacturing Corp. 807-22-001-10-006101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm				0.072 in	Through Hole	0.236 in	6 mm	Copper Alloy	1.83 mm
Mill-Max Manufacturing Corp. 807-22-001-10-003101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	3.8 mm	0.15 in		0.072 in	Through Hole	0.177 in		Copper Alloy	1.83 mm	4.5 mm
Mill-Max Manufacturing Corp. 807-22-001-30-001101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	2.98 mm	0.117 in	0.072 in	1.83 mm	Surface Mount	0.137 in		Copper Alloy		3.48 mm
Mill-Max Manufacturing Corp. 807-22-001-30-000101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	70 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	2.24 mm	0.088 in	0.072 in	1.83 mm	Surface Mount	0.1 "		Copper Alloy		2.54 mm
Mill-Max Manufacturing Corp. 807-22-001-10-012101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	3.44 mm	0.135 in		0.072 in	Through Hole	0.155 in		Copper Alloy	1.83 mm	3.94 mm
Mill-Max Manufacturing Corp. 807-22-001-10-022101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	7.34 mm	0.289 in		0.072 in	Through Hole	0.334 in		Copper Alloy	1.83 mm	8.48 mm

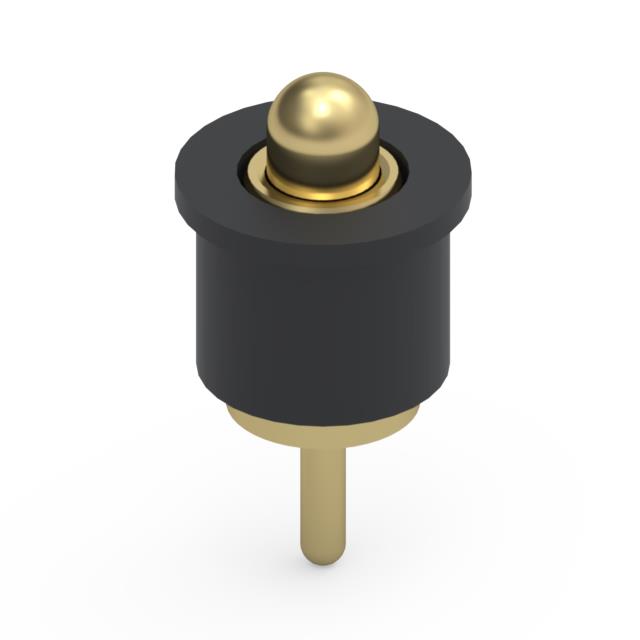

Mill-Max Manufacturing Corp. 807-22-001-10-001101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	2.98 mm	0.117 in		0.072 in	Through Hole	0.137 in		Copper Alloy	1.83 mm	3.48 mm
Mill-Max Manufacturing Corp. 807-22-001-30-003101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	3.8 mm	0.15 in	0.072 in	1.83 mm	Surface Mount	0.177 in		Copper Alloy		4.5 mm
Mill-Max Manufacturing Corp. 807-22-001-10-013101	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Pick and Place	25 gf	2 A	60 gf	0.042 in	1.07 mm	1000000	Gold	20 µin	0.51 µm	3.8 mm	0.15 in		0.072 in	Through Hole	0.177 in		Copper Alloy	1.83 mm	4.5 mm
