CES-26138 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K

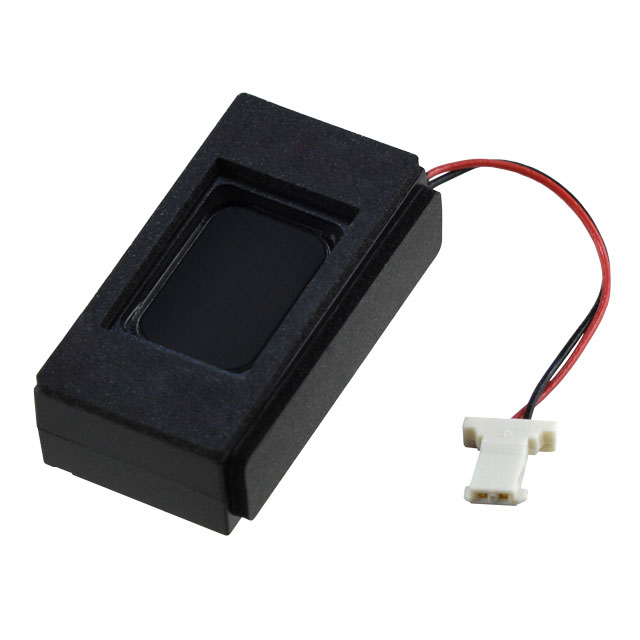

SPEAKER 6OHM 1.2W TOP PORT 95DB
| Part | Termination | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Material - Cone [custom] | Impedance | Shape | Port Location | Material - Magnet | Technology | Power - Max [Max] | Efficiency - Type | Frequency - Self Resonant | Frequency Range [Min] | Frequency Range [Max] | Power - Rated | Type | Efficiency - dBA | Efficiency - Testing | Operating Temperature [Min] | Operating Temperature [Max] | Distortion Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | Wire Leads | 1.024 in | 13 mm | 0.512 " | 26 mm | 8 mm | 0.315 in | Polyetheretherketone (PEEK) | 6 Ohms | Rectangular | Top | Nd-Fe-B | Magnetic | 1.5 W | Sound Pressure Level (SPL) | 1000 Hz | 500 Hz | 20 kHz | 1.2 W | General Purpose Enclosure Included | 95 dBA | 1.2 W/100mm | |||
Same Sky (Formerly CUI Devices) | Wire Leads | 1.024 in | 13 mm | 0.512 " | 26 mm | 8 mm | 0.315 in | Polyetheretherketone (PEEK) | 6 Ohms | Rectangular | Top | Nd-Fe-B | Magnetic | 1.5 W | Sound Pressure Level (SPL) | 1000 Hz | 500 Hz | 20 kHz | 1.2 W | General Purpose Enclosure Included | 95 dBA | 1.2 W/100mm | -20 ░C | 70 °C | 10 % |
