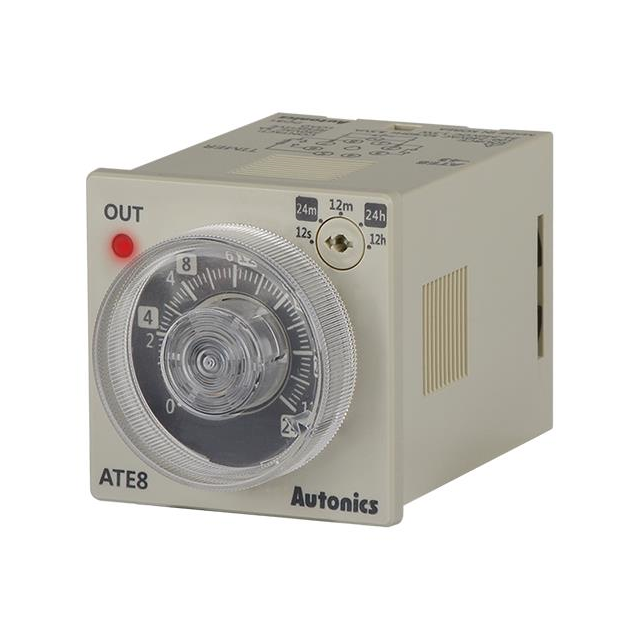

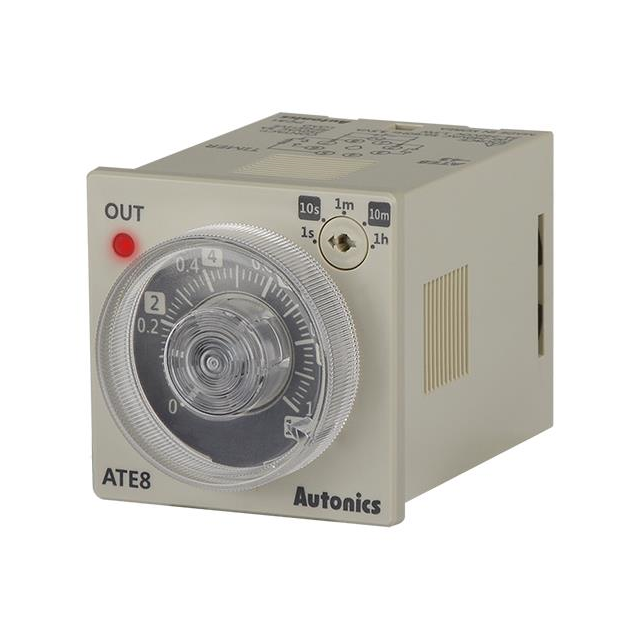

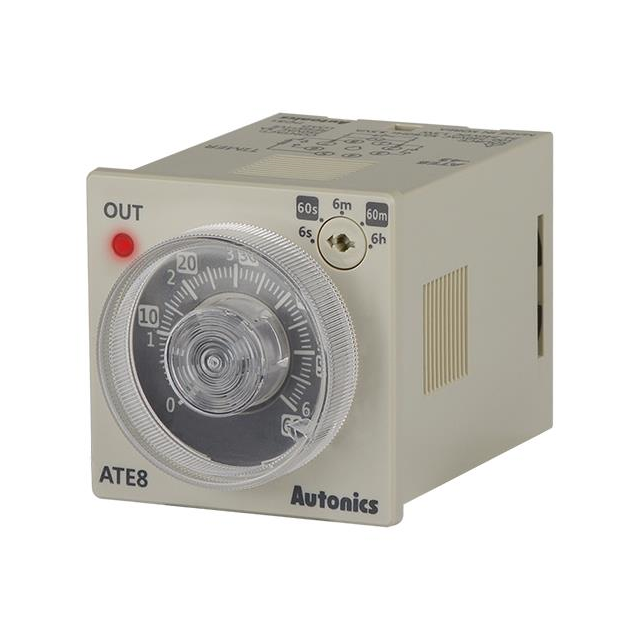

ATE8-4 Series
Manufacturer: Autonics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY TIME DELAY 6HR 3A 250V
| Part | Pin Count | Termination Style | Relay Type | Voltage Rating | Contact Rating (Current) | Mounting Type | Timing Adjustment Method | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 2 Maximum) | Function | Delay Time (Minimum) | Delay Time (Maximum) | Circuit | Timing Initiate Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Autonics | 8 | Plug In | Mechanical Relay | 250VAC 30VDC | 3 A | Socketable | Hand Dial | 100 VAC | 24 VAC | 240 VAC | 240 VAC | On-Delay | 0.6 Sec | 6 Hrs | DPDT (2 Form C) | Input Voltage |
Autonics | 8 | Plug In | Mechanical Relay | 250VAC 30VDC | 3 A | Socketable | Hand Dial | 100 VAC | 24 VAC | 240 VAC | 240 VAC | On-Delay | 0.6 Sec | 6 Hrs | SPDT (1 Form C) SPST-NO (1 Form A) | Input Voltage |
 Autonics | 8 | Plug In | Mechanical Relay | 250VAC 30VDC | 3 A | Socketable | Hand Dial | 100 VAC | 24 VAC | 240 VAC | 240 VAC | On-Delay | 0.6 Sec | 6 Hrs | DPDT (2 Form C) | Input Voltage |
 Autonics | 8 | Plug In | Mechanical Relay | 3 A | Socketable | Hand Dial | 100 VAC | 24 VAC | 240 VAC | 240 VAC | On-Delay | 1 Sec | 60 Min | SPDT (1 Form C) SPST-NO (1 Form A) | Input Voltage | |
 Autonics | 8 | Plug In | Mechanical Relay | 3 A | Socketable | Hand Dial | 100 VAC | 24 VAC | 240 VAC | 240 VAC | On-Delay | 12 s | 24 Hrs | SPDT (1 Form C) SPST-NO (1 Form A) | Input Voltage | |
Autonics | 8 | Plug In | Mechanical Relay | 3 A | Socketable | Hand Dial | 100 VAC | 24 VAC | 240 VAC | 240 VAC | On-Delay | 1 Sec | 60 Min | DPDT (2 Form C) | Input Voltage | |
Autonics | 8 | Plug In | Mechanical Relay | 3 A | Socketable | Hand Dial | 100 VAC | 24 VAC | 240 VAC | 240 VAC | On-Delay | 0.05 Min | 3 Hrs | SPDT (1 Form C) SPST-NO (1 Form A) | Input Voltage |
