9525-F0033 Series

Catalog

3+3 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Part	Mounting Type	Number of Rows [custom]	Wire Gauge [Min]	Wire Gauge [Max]	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Color	Number of Positions	Contact Type	Fastening Type	Row Spacing	Row Spacing	Wire Type	Contact Finish - Mating	Style	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shrouding	Contact Material	Features	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Shape	Number of Positions [custom]	Wire Gauge	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Harwin Inc. B5740-206-F-C-2	Free Hanging (In-Line)	2	24 AWG	28 AWG	Crimp	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Receptacle	Black	6	Female Socket	Locking Ramp	2 mm	0.079 in	Discrete
Harwin Inc. B5741-214-F-T-2	Through Hole	2									Receptacle		14	Female Socket	Locking Ramp				Gold	Board to Board Cable	0.118 in	3 mm	12 Áin	0.3 Ám	Solder	UL94 V-0	0.079 "	2 mm	0.202 in	5.14 mm	2.2 A	All	Gold	Black	800 VAC	-55 C	125 °C	2 mm	0.079 in
Harwin Inc. B5743-234-M-L-3	Right Angle Through Hole	2									Header			Male Pin	Latch Lock				Gold	Board to Board Cable	0.118 in	3 mm			Solder	UL94 V-0	0.079 "	2 mm			2.2 A	All	Gold	Black	120 VAC	-55 C	125 °C	2 mm	0.079 in	29.5 µin	0.75 µm	Shrouded - 4 Wall	Phosphor Bronze	Strain Relief Clips	Polyester Glass Filled	0.235 in	5.97 mm	Circular	34
Harwin Inc. B5743-206-M-L-2	Through Hole	2									Header		6	Male Pin	Push-Pull				Gold		0.118 in	3 mm			Solder	UL94 V-0	0.079 "	2 mm			2.2 A	All	Gold	Black	120 VAC			2 mm	0.079 in			Shrouded - 4 Wall	Phosphor Bronze		Thermoplastic	0.235 in	5.97 mm	Square
Harwin Inc. B5740-234-F-D-2	Free Hanging (In-Line)	2			Crimp	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Receptacle	Black		Female Socket	Locking Ramp	2 mm	0.079 in	Discrete																															34	22 AWG

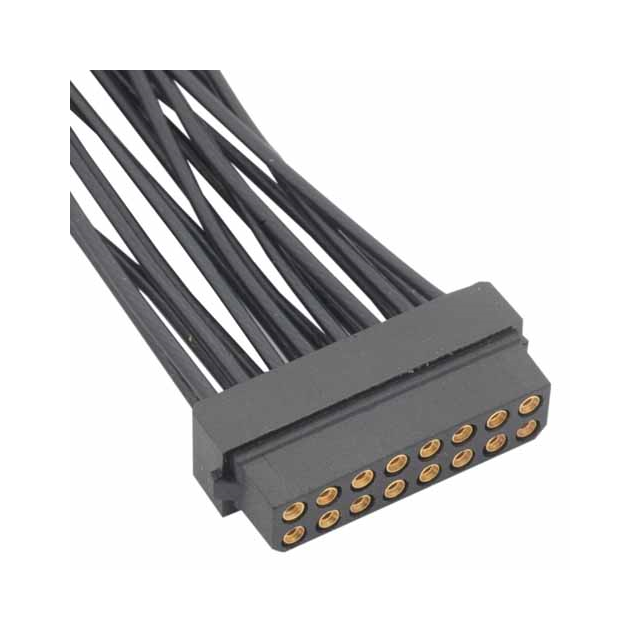

Harwin Inc. B5740-220-F-C-0	Free Hanging (In-Line)	2	24 AWG	28 AWG	Crimp	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Receptacle	Black	20	Female Socket	Locking Ramp	2 mm	0.079 in	Discrete
Harwin Inc. B5743-212-M-T-0	Through Hole	2									Plug		12	Male Pin	Latch Holder				Gold	Board to Board Cable	0.118 in	3 mm			Solder	UL94 V-0	0.079 "	2 mm			2.2 A	All	Tin-Lead	Black	800 VAC	-55 C	125 °C	2 mm	0.079 in	29.5 µin	0.75 µm	Shrouded - 4 Wall	Phosphor Bronze		Polyester Glass Filled	0.219 in	5.56 mm	Circular			12 µin	0.3 µm
Harwin Inc. B5743-214-M-L-1	Right Angle Through Hole	2									Header		14	Male Pin	Latch Lock				Gold	Board to Board Cable	0.118 in	3 mm			Solder	UL94 V-0	0.079 "	2 mm			2.2 A	All	Tin-Lead	Black	120 VAC	-55 C	125 °C	2 mm	0.079 in	29.5 µin	0.75 µm	Shrouded - 4 Wall	Phosphor Bronze	Strain Relief Clips	Polyester Glass Filled	0.235 in	5.97 mm	Circular
Harwin Inc. B5743-216-M-L-1	Right Angle Through Hole	2									Header		16	Male Pin	Latch Lock				Gold	Board to Board Cable	0.118 in	3 mm			Solder	UL94 V-0	0.079 "	2 mm			2.2 A	All	Tin-Lead	Black	120 VAC	-55 C	125 °C	2 mm	0.079 in	29.5 µin	0.75 µm	Shrouded - 4 Wall	Phosphor Bronze	Strain Relief Clips	Polyester Glass Filled	0.235 in	5.97 mm	Circular
