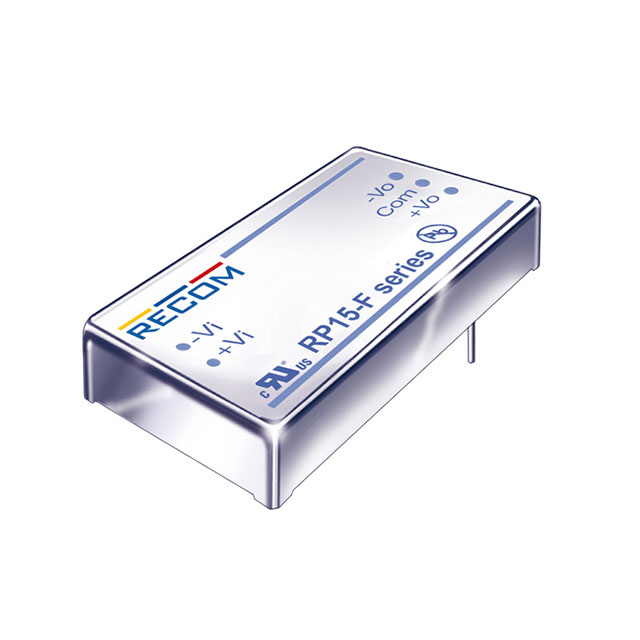

RP15-F Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W DC/DC 1.6KV REG 2:1 36-75VIN 15VOUT

...

Part	Current - Output (Max) [Max]	Efficiency	Mounting Type	Features	Applications	Voltage - Input (Max) [Max]	Size / Dimension	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Control Features	Current - Output (Max)	Voltage - Output 2	Current - Output (Max) [Max]

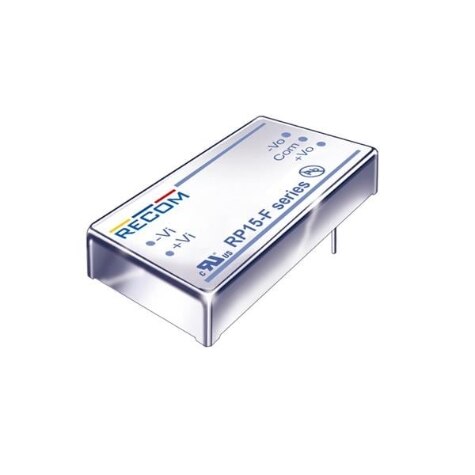

Recom Power RP15-4815SF	1 A	86 %	Through Hole	OCP OVP SCP	ITE (Commercial)	75 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	1	6-DIP Module	36 V	15 V	Isolated Module
Recom Power RP15-4815SF/P-HC	1 A	86 %	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	1	6-DIP Module	36 V	15 V	Isolated Module	Active High Enable
Recom Power RP15-1212SF	1.25 A	86 %	Through Hole	OCP OVP SCP	ITE (Commercial)	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	1	6-DIP Module	9 V	12 V	Isolated Module
Recom Power RP15-4805DF-HC		85 %	Through Hole	OCP OVP SCP	ITE (Commercial)	75 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	2	6-DIP Module	36 V	5 V	Isolated Module		1.5 A	-5 V
Recom Power RP15-4812DF/P-HC	625 mA	88 %	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	2	6-DIP Module	36 V	12 V	Isolated Module	Active High Enable		-12 V	625 mA
Recom Power RP15-123.3SF/N	4 A	79 %	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	1	6-DIP Module	9 V	3.3 V	Isolated Module	Active Low Enable
Recom Power RP15-4812SF/P-HC	1.25 A	87 %	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	1	6-DIP Module	36 V	12 V	Isolated Module	Active High Enable
Recom Power RP15-2415SF/P	1 A	85 %	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	36 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	1	6-DIP Module	18 V	15 V	Isolated Module	Active High Enable
Recom Power RP15-1205SF/N	3 A		Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	1	6-DIP Module	9 V	5 V	Isolated Module	Active Low Enable
Recom Power RP15-4815DF/P		87 %	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	85 °C	-40 C	1.6 kV	2	6-DIP Module	36 V	15 V	Isolated Module	Active High Enable	500 mA	-15 V
