387-008 Series
Manufacturer: EDAC Inc.
Catalog

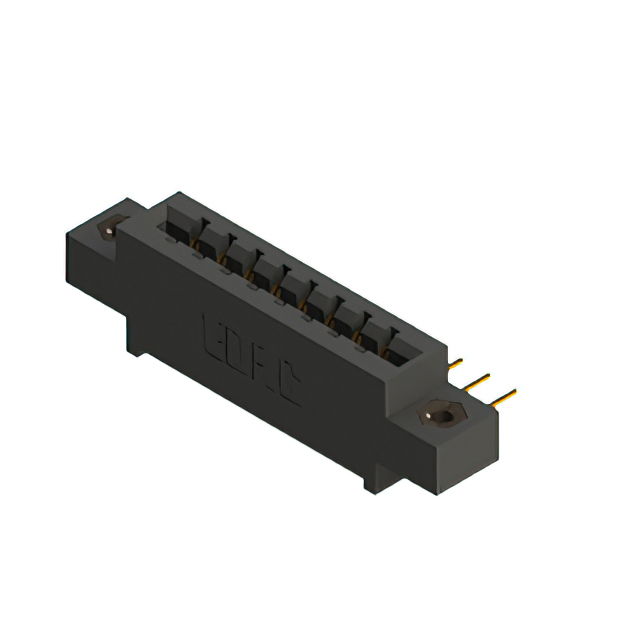

CONN EDGE SGL FMALE 8POS 0.156
...
| Part | Contact Material | Card Type | Contact Finish | Mounting Type | Number of Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Material - Insulation | Pitch [x] | Pitch [x] | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Gender | Contact Type | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Solder | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | |||||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Wire Wrap | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | ||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Wire Wrap | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | 4-40 Flush Mount Threaded Insert Top Opening | ||||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole Right Angle | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Wire Wrap | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | |||||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Solder | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | 4-40 Flush Mount Threaded Insert Top Opening | ||||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Solder | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole Right Angle | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Wire Wrap | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | 4-40 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Wire Wrap | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole Right Angle | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Wire Wrap | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | 4-40 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | Copper Alloy | Non Specified - Single Edge | Gold | Through Hole | 1 | 8 | 8 | 8 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Black | Wire Wrap | Female | Cantilever | 1 | 10 Áin | 0.25 Ám | Single | 4-40 Flush Mount Threaded Insert Top Opening |
